IBM 6580 User Manual

C.E. Diagnostic. ~1D1s Keyboard ~Iodul. ~Iemory xxxx
CED201 J(yb xxx
HAP Description:
Good Test Unit- results? This ~IAP isolates Keyboard problems.
CANCL to return to Device Selection;
END to return to :Function Selection.
Type y ,n, (b,o, t, r); press ENTER: y
Overrun t~st for the keyboard
Test • YES
Received· YES
Section • 10
Subsection • 70
Step • 001
Mode • Step

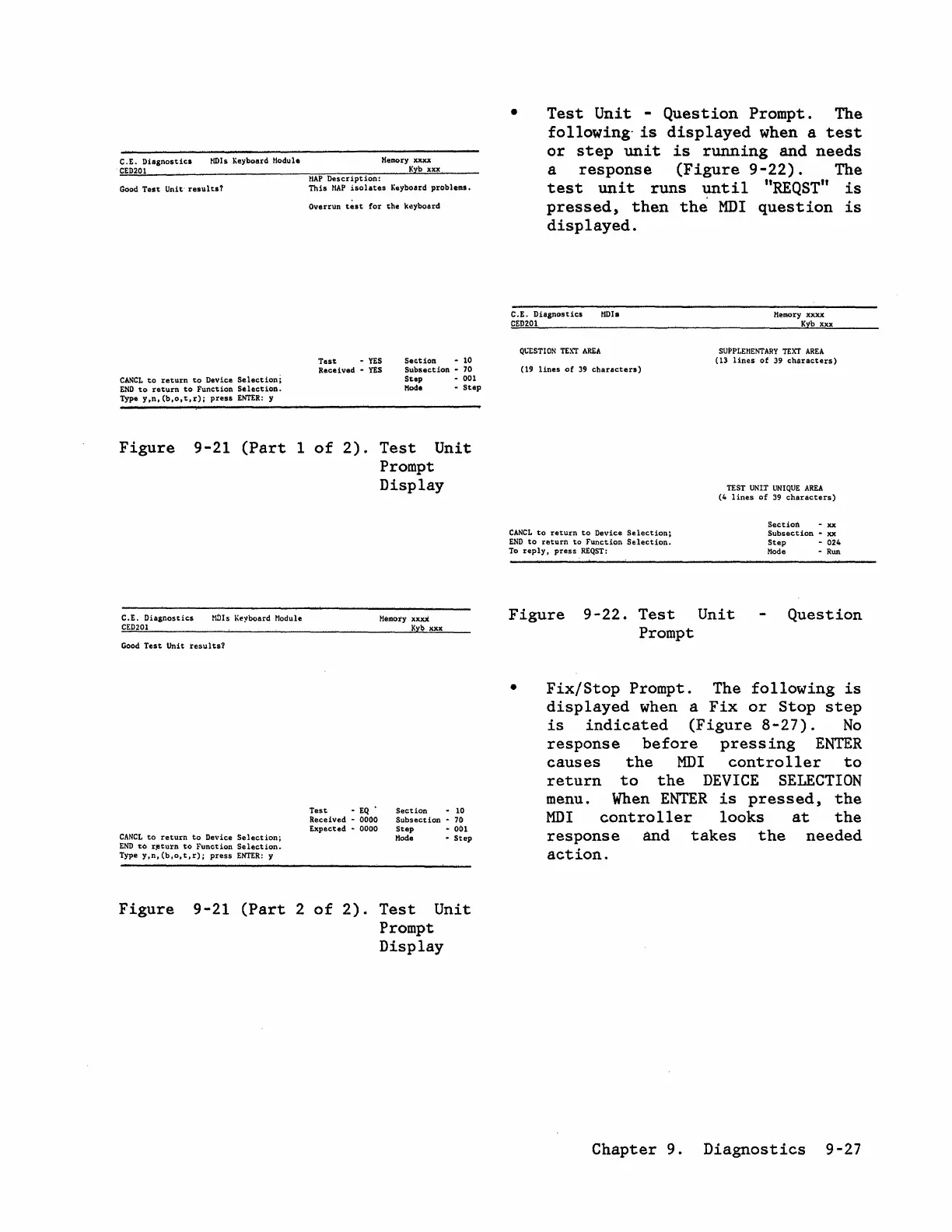

Figure 9-21 (Part 1 of 2). Test Unit
Prompt
Display
C.E. Diagnostics ~lilIs Keyboard ~Iodule
CED201
Good Test Unit results?
CANCL to return to Device Selection;
END to rjlturn to Function Selection.
Type y,n,(blo,t,r); press ENTER: y
Test • EQ •
Rece
i ved • 0000
Expected • 0000
Hemory
xxlU/
](yb xxx
Section • 10
Subsection • 70
Step • 001
~Iode • Step
Figure
9-21 (Part 2 of 2). Test Unit
Prompt
Display
•
Test Unit - Question Prompt. The
following' is displayed when a test
or step unit is running and needs
a response (Figure 9-22). The
test unit runs until "REQST" is
pressed, then the MDI question is
displayed.
C.E. Diagnostics ~IDI8
~Iemory xxxx
J(yb xxx CED201
QL'ESTION TEXT AREA
(19 lines of 39 Characters)
SUPPLE~IENTARY TEXT AREA
(13 lines of 39 characters)
TEST UNIT UNIQUE AREA
(4 lines of 39 characters)
CANCL to return to Device Selection:
Section • xx
Subsection • xx
ENO to return to Function Selection.
To reply, press REQST:
Step • 024
~Iode • Run
Figure 9-22. Test Unit
Prompt
Question
•
Fix/Stop Prompt. The following is
displayed when a Fix or Stop step
is indicated (Figure 8-27). No
response before pressing ENTER
causes the MDI controller to
return to the DEVICE SELECTION
menu. When ENTER is pressed, the
MDI controller looks at the
response and takes the needed
action.
Chapter 9. Diagnostics
9-27
