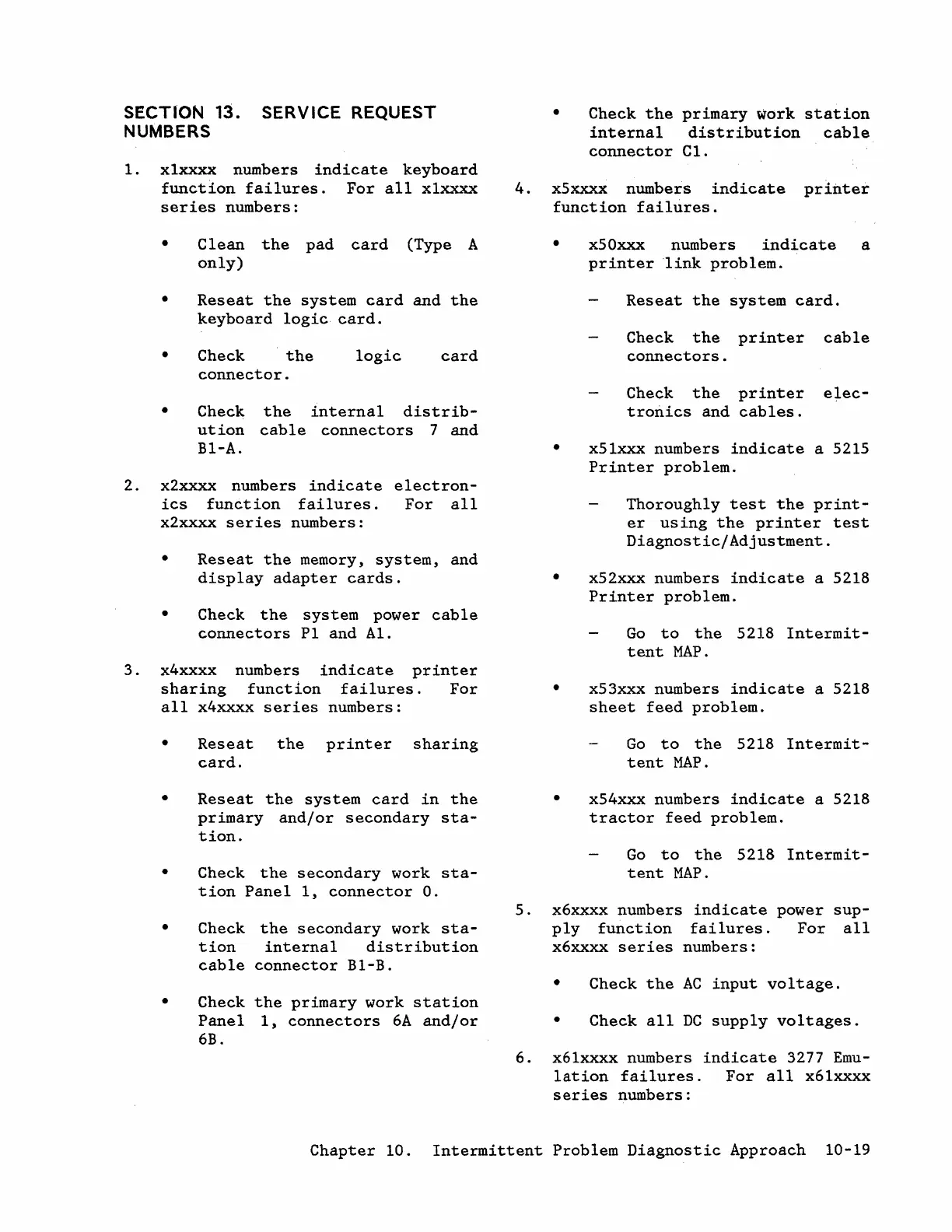

SECTION 13. SERVICE REQUEST
NUMBERS
1. x1xxxx numbers indicate keyboard
function failures. For all xlxxxx
series numbers:
•
•
•
•
Clean the pad card (Type A
only)
Reseat the system card and the
keyboard logic card.
Check
.
the
logic
card
connector.
Check the internal distrib-
ution cable connectors 7 and
B1-A.
2. x2xxxx numbers indicate electron-
ics function failures. For all
x2xxxx series numbers:
•
•
Reseat the memory, system, and
display adapter cards.
Check the system power cable
connectors P1 and AI.
3. x4xxxx numbers indicate printer
sharing function failures. For
all x4xxxx series numbers:
•
•
•
•
•
Reseat the printer sharing
card.
Reseat the system card in the
primary and/or secondary sta-
tion.
Check the secondary work sta-
tion Panel 1, connector o.
Check the secondary work sta-
tion internal distribution
cable connector B1-B.
Check the primary work station
Panel 1, connectors 6A and/or
6B.
•
Check the primary work station
internal distribution cable
connector C1.
4. x5xxxx numbers indicate printer
function failures.
•
•
•
•
•
x50xxx numbers indicate a
printer link problem.
Reseat the system card.
Check the printer cable
connectors.
Check the printer elec-
tronics and cables.
x51xxx numbers indicate a 5215
Printer problem.
Thoroughly test the print-
er using the printer test
Diagnostic/Adjustment.
x52xxx numbers indicate a 5218
Printer problem.
Go to the 5218 Intermit-
tent MAP.
x53xxx numbers indicate a 5218
sheet feed problem.
Go to the 5218 Intermit-
tent MAP.
x54xxx numbers indicate a 5218
tractor feed problem.
Go to the 5218 Intermit-
tent MAP.
5. x6xxxx numbers indicate power sup-
ply function failures. For all
x6xxxx series numbers:
• Check the AC input voltage.
•
Check all DC supply voltages.
6. x61xxxx numbers indicate 3277 Emu-
lation failures. For all x61xxxx
series numbers:
Chapter 10. Intermittent Problem Diagnostic Approach 10-19
