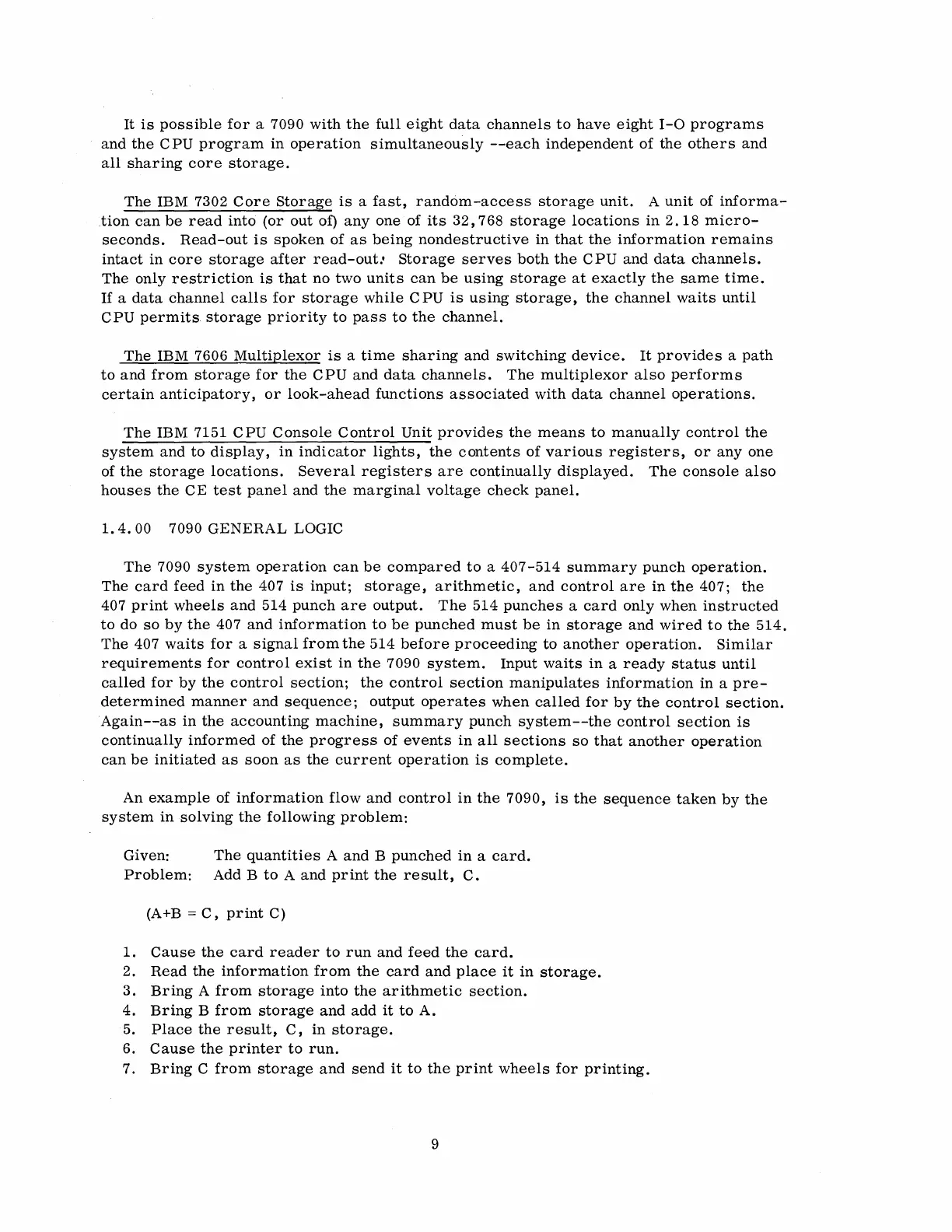

It
is
possible
for
a
7090
with
the
full
eight
data
channels
to
have
eight
1-0
programs
and
the
CPU
program
in
operation
simultaneously
--each
independent
of
the
others
and
all
sharing
core
storage.
The
IBM
7302
Core
Storage
is
a
fast,
random-access
storage
unit.
A
unit
of
informa-
tion
can
be
read
into
(or
out
of)
anyone
of
its
32,768
storage
locations
in
2.18
micro-
seconds.
Read-out
is
spoken
of
as
being
nondestructive
in
that
the
information
remains
intact
in
core
storage
after
read-out.-
Storage
serves
both
the
CPU
and
data
channels.
The
only
restriction
is
that
no
two
units
can
be
using
storage
at
exactly
the
same
time.
If
a
data
channel
calls
for
storage
while
CPU
is
using
storage,
the
channel
waits
until
CPU
permits.
storage
priority
to
pass
to
the
channel.
The
IBM
7606
Multiplexor
is
a
time
sharing
and
switching
device.
It
provides
a
path
to
and
from
storage
for
the
CPU
and
data
channels.
The
multiplexor
also
performs
certain
anticipatory,
or
look-ahead
functions
associated
with
data
channel
operations.
The
IBM
7151
CPU
Console
Control
Unit
provides
the
means
to
manually
control
the
system
and
to
display,
in
indicator
lights,
the
contents
of
various
registers,
or
anyone
of
the
storage
locations.
Several
registers
are
continually
displayed.
The
console
also
houses
the
C
E
test
panel
and
the
marginal
voltage
check
panel.
1.
4.
00
7090
GENERAL
LOGIC
The
7090
system
operation
can
be
compared
to
a
407
-514
summary
punch
operation.
The
card
feed
in
the
407
is
input;
storage,
arithmetic,
and
control
are
in
the
407;
the
407
print
wheels
and
514
punch
are
output.
The
514
punches
a
card
only
when
instructed
to
do
so
by
the
407
and
information
to
be
punched
must
be
in
storage
and
wired
to
the
514.
The
407
waits
for
a
signal
from
the
514
before
proceeding
to
another
operation.
Similar
requirements
for
control
exist
in
the
7090
system.
Input
waits
in
a
ready
status
until
called
for
by
the
control
section;
the
control
section
manipulates
information
in
a
pre-
determined
manner
and
sequence;
output
operates
when
called
for
by
the
control
section.
Again--as
in
the
accounting
machine,
summary
punch
system--the
control
section
is
continually
informed
of
the
progress
of
events
in
all
sections
so
that
another
operation
can
be
initiated
as
soon
as
the
current
operation
is
complete.
An
example
of
information
flow
and
control
in
the
7090,
is
the
sequence
taken
by
the
system
in
solving
the
following
problem:
Given:
Problem:
The
quantities
A
and
B
punched
in
a
card.
Add
B
to
A
and
print
the
result,
C.
(A+B
=
C,
print
C)
1.
Cause
the
card
reader
to
run
and
feed
the
card.
2.
Read
the
information
from
the
card
and
place
it
in
storage.
3.
Bring
A
from
storage
into
the
arithmetic
section.
4.
Bring
B
from
storage
and
add
it
to
A.
5.
Place
the
result,
C,
in
storage.
6.
Cause
the
printer
to
run.
7.
Bring
C
from
storage
and
send
it
to
the
print
wheels
for
printing.
9
9
11
Table of Contents
Table of Contents
3
00 Introduction to the Ibm 7090
6
General System Operation
6
Functional Parts of Acomputer System
6
7090 System Make-Up
7
7090 General Logic
10
The Stored Program
11
Exercises
11
Computer Operations
13
Storage Word Designation
13
The 7090 Word
13
Numeric Quantity (Data) Word
13
CPU Instruction Word
13
Data Channel Command Word
15
Fundamental Components
15
A+B = C, Print C
18
Other Components, Instructions and
22
Commands
22
Cpu Internal Functions
24
Functional Components
24
Storage Register (SR)
24
Accumulator Register (AC)
24
Multiplier-Quotient Register (MQ)
24
Index Registers (XR)
24
Program Register (PR)
24
Address Switches (AS)
27
Tag Registers
33
Adders (AD)
33
Instruction Decoding and Processing
37
Operation Decoders
37
Control Circuits
37
Pulses
37
Basic Cycle
37
Ibm 7606 Multiplexor
39
Multiplexor Functional Units
39
Multiplexor Clock
39
Multiplexor Storage Bus
42
Multiplexor Storage Bus Or'ing
44
Multiplexor Address Switches
44
Data Flow and Control
44
CPU to Core Storage
44
Core Storage to CPU
44
Cpu Data Flow and Timing
46
I Cycle
46
Indirect Addressing
46
Instructions
48
Word Transmission Instructions
48
Fixed-Point Arithmetic Instructions
56
Floating-Point Arithmetic Instructions
69
Transfer Instructions
92
Trap Mode Instructions
98
Skip Instructions
100
Control Instructions
108
Sense Indicator Instructions
112
Index Transmission Instructions
120
AND and or Instructions
129
Convert Instructions
133
Floating-Point Trap
142
Ibm 7151 Console Control Unit
145
Operator's Panel
147
Indicators
147
Manual Controls
150
Manual Control Keys
152
Customer Engineer's Test Panel
159
Indicators
159
Switches
163
Marginal Check Panel
166
Reference Information
167
Condensed Logic
167
Adders
167
Address Register
167
Program Register
167
Sense Indicators
167
Sh Ift C Ounte R
169
Program Counter
169
Accumulator
169
Multiplier Quotient
169
Index Registers
171
Storage Register
171
Service Aids
171
One Card Programs
171
Voltage
175
Adjustment of C Pulse Set
175
Operator's Panel
177
Console Indicators
177
Indicator Lights
178
Unitized Assembly Lights & Keys
179
Switches and Keys
179
Plastic Rocker
179
Reset Motor
179
CE Panel
180
Indicator Lights
180
Switches and Receptacles
180
Marginal Check Panel
181
MC Switches
181
MC Meters
181
Tailgate
182
Signal Connectors
182
Power Connector S
182
