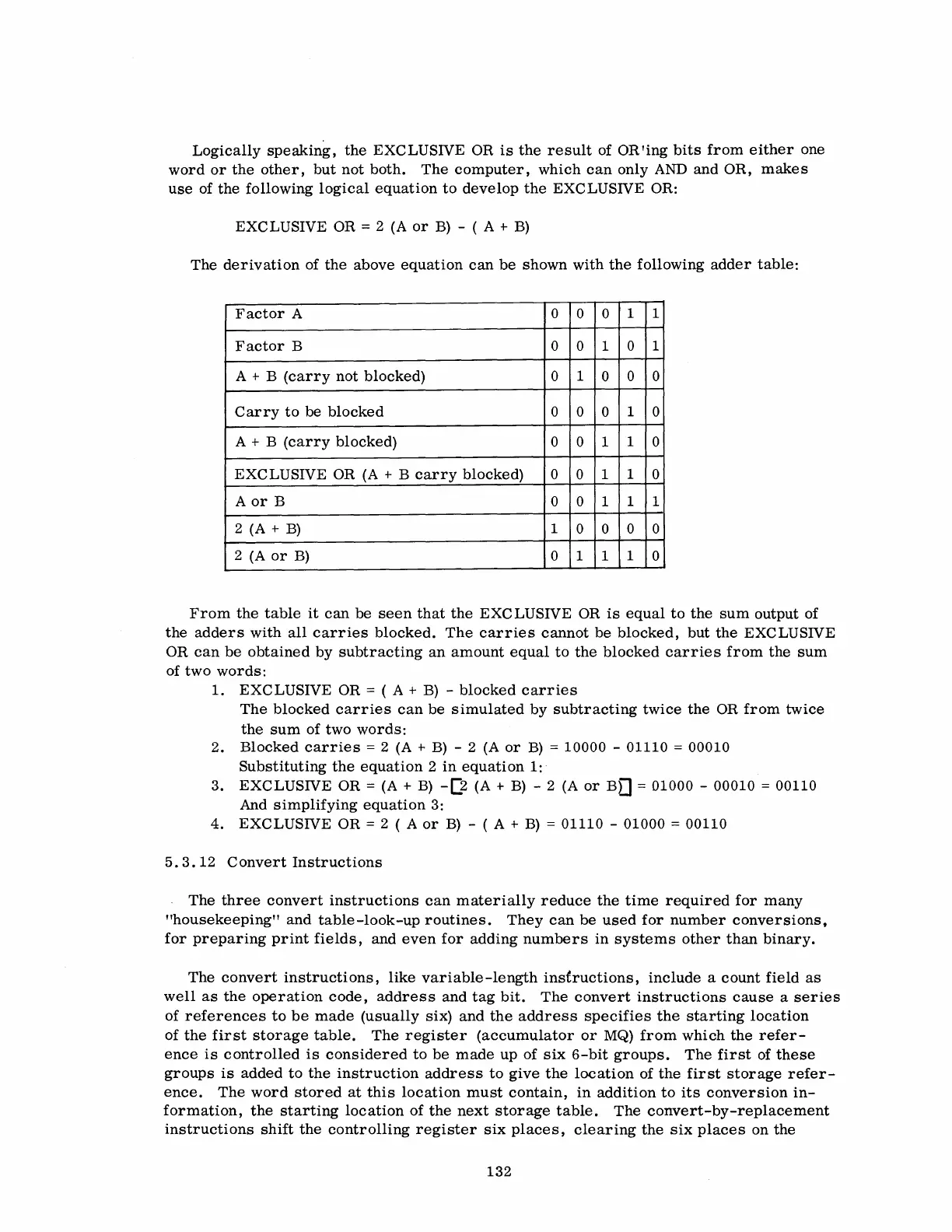

Logically
speaking,
the
EXCLUSIVE
OR
is
the
result
of
OR
'ing
bits
from
either
one
word
or
the
other,
but
not
both.
The
computer,
which
can
only
AND
and
OR,
makes
use
of
the
following
logical
equation
to
develop
the
EXCLUSIVE
OR:
EXCLUSIVE
OR
=
2
(A
or
B)
-
(
A
+
B)
The
derivation
of
the
above
equation
can
be
shown
with
the
following
adder
table:
Factor
A
0
0
0
1
1
Factor
B
0
0
1
0
1
A
+
B
(carry
not
blocked)
0
1
0
0
0
Carry
to
be
blocked
0
0
0
1
0
A
+
B
(carry
blocked)
0
0
1
1
0
EXCLUSIVE
OR
(A
+
B
carry
blocked)
0
0
1
1
0
A
or
B
0
0
1
1
1
2
(A
+
B)
1
0
0
0
0
2
(A
or
B)
0
1
1
1
0
From
the
table
it
can
be
seen
that
the
EXCLUSIVE
OR
is
equal
to
the
sum
output
of
the
adders
with
all
carries
blocked.
The
carries
cannot
be
blocked,
but
the
EXCLUSIVE
OR
can
be
obtained
by
subtracting
an
amount
equal
to
the
blocked
carries
from
the
sum
of
two
words:
1.
EXCLUSIVE
OR
= (
A
+
B)
-
blocked
carries
The
blocked
carries
can
be
simulated
by
subtracting
twice
the
OR
from
twice
the
sum
of
two
words:
2.
Blocked
carries
=
2
(A
+
B)
-
2
(A
or
B)
=
10000
-
01110
=
00010
Substituting
the
equation
2
in
equation
1:
3.
EXCLUSIVE
OR
=
(A
+
B)
-[2
(A
+
B)
-
2
(A
or
B[]
=
01000
-
00010
=
00110
And
Simplifying
equation
3:
4.
EXCLUSIVE
OR
=
2
(
A
or
B)
-
(
A
+
B)
=
01110
-
01000
=
00110
5.3.12
Convert
Instructions
The
three
convert
instructions
can
materially
reduce
the
time
required
for
many
"housekeeping"
and
table-look-up
routines.
They
can
be
used
for
number
conversions,
for
preparing
print
fields,
and
even
for
adding
numbers
in
systems
other
than
binary.
The
convert
instructions,
like
variable-length
instructions,
include
a
count
field
as
well
as
the
operation
code,
address
and
tag
bit.
The
convert
instructions
cause
a
series
of
references
to
be
made
(usually
six)
and
the
address
specifies
the
starting
location
of
the
first
storage
table.
The
register
(accumulator
or
MQ)
from
which
the
refer-
ence
is
controlled
is
considered
to
be
made
up
of
six
6-bit
groups.
The
first
of
these
groups
is
added
to
the
instruction
address
to
give
the
location
of
the
first
storage
refer-
ence.
The
word
stored
at
this
location
must
contain,
in
addition
to
its
conversion
in-
formation,
the
starting
location
of
the
next
storage
table.
The
convert-by-replacement
instructions
shift
the
controlling
register
six
places,
clearing
the
six
places
on
the
132
132
134
