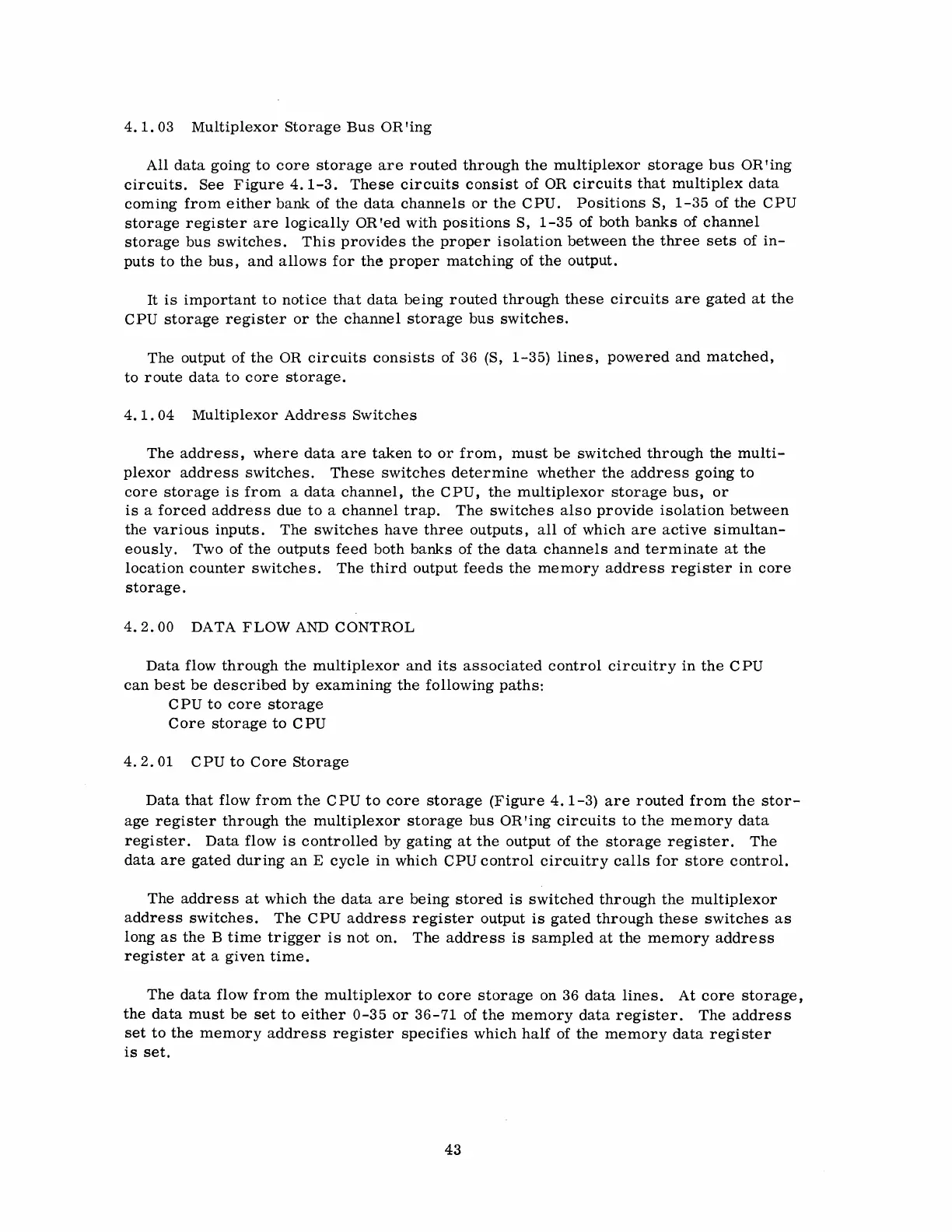

4.1.03
Multiplexor
Storage
Bus
OR ling
All
data
going
to
core
storage
are
routed
through
the
multiplexor
storage
bus
OR ling
circuits.
See
Figure
4.1-3.
These
circuits
consist
of OR
circuits
that
multiplex
data
coming
from
either
bank
of
the
data
channels
or
the
CPU.
Positions
S,
1-35
of
the
CPU
storage
register
are
logically
OR led
with
positions
S,
1-35
of
both
banks
of
channel
storage
bus
switches.
This
provides
the
proper
isolation
between
the
three
sets
of
in-
puts
to
the
bus,
and
allows
for
the
proper
matching
of
the
output.
It
is
important
to
notice
that
data
being
routed
through
these
circuits
are
gated
at
the
CPU
storage
register
or
the
channel
storage
bus
switches.
The
output
of
the
OR
circuits
consists
of 36 (S,
1-35)
lines,
powered
and
matched,
to
route
data
to
core
storage.
4.
1.
04
Multiplexor
Address
Switches
The
address,
where
data
are
taken
to
or
from,
must
be
switched
through
the
multi-
plexor
address
switches.
These
switches
determine
whether
the
address
going
to
core
storage
is
from
a
data
channel,
the
CPU,
the
multiplexor
storage
bus,
or
is
a
forced
address
due
to
a
channel
trap.
The
switches
also
provide
isolation
between
the
various
inputs.
The
switches
have
three
outputs,
all
of
which
are
active
simultan-
eously.
Two of
the
outputs
feed
both
banks
of
the
data
channels
and
terminate
at
the
location
counter
switches.
The
third
output
feeds
the
memory
address
register
in
core
storage.
4.2.00
DATA
FLOW
AND
CONTROL
Data
flow
through
the
multiplexor
and
its
associated
control
circuitry
in
the
CPU
can
best
be
described
by
examining
the
following
paths:
CPU
to
core
storage
Core
storage
to
CPU
4.2.01
CPU
to
Core
Storage
Data
that
flow
from
the
CPU
to
core
storage
(Figure
4.1-3)
are
routed
from
the
stor-
age
register
through
the
multiplexor
storage
bus
OR ling
circuits
to
the
memory
data
register.
Data
flow
is
controlled
by
gating
at
the
output
of
the
storage
register.
The
data
are
gated
during
an
E
cycle
in
which
CPU
control
circuitry
calls
for
store
control.
The
address
at
which
the
data
are
being
stored
is
switched
through
the
multiplexor
address
switches.
The
CPU
address
register
output
is
gated
through
these
switches
as
long
as
the
B
time
trigger
is
not
on.
The
address
is
sampled
at
the
memory
address
register
at
a
given
time.
The
data
flow
from
the
multiplexor
to
core
storage
on 36
data
lines.
At
core
storage,
the
data
must
be
set
to
either
0-35
or
36-71
of
the
memory
data
register.
The
address
set
to
the
memory
address
register
specifies
which
half
of
the
memory
data
register
is
set.
43
