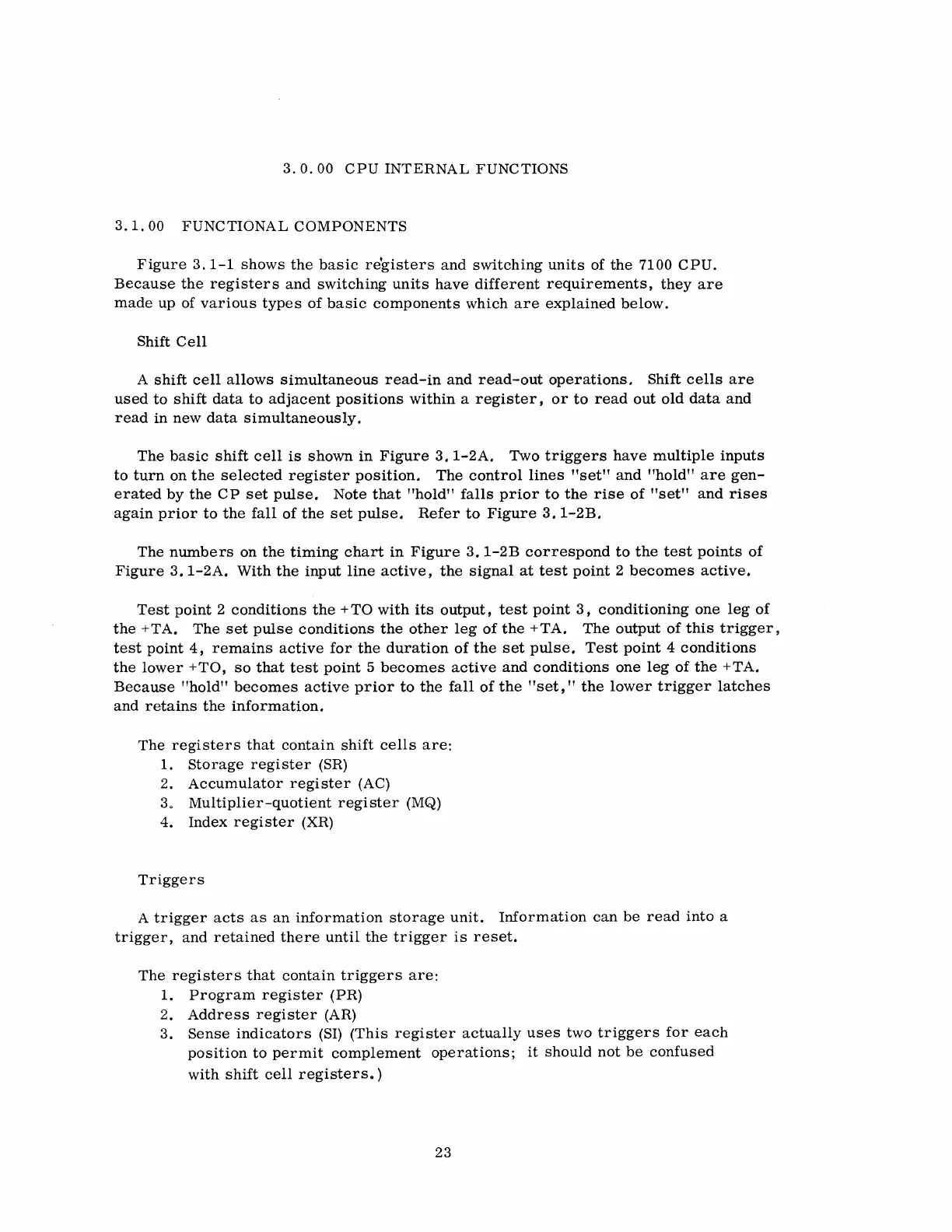

3.
O.
00
CPU
INTERNAL
FUNCTIONS
3.1.00
FUNCTIONAL
COMPONENTS
Figure
3.1-1
shows
the
basic
re'gisters
and
switching
units
of
the
7100
CPU.
Because
the
registers
and
switching
units
have
different
requirements,
they
are
made
up
of
various
types
of
basic
components
which
are
explained
below.
Shift
Cell
A
shift
cell
allows
simultaneous
read-in
and
read-out
operations.
Shift
cells
are
used
to
shift
data
to
adjacent
positions
within
a
register,
or
to
read
out
old
data
and
read
in
new
data
simultaneously.
The
basic
shift
cell
is
shown
in
Figure
3.
1-2A.
Two
triggers
have
multiple
inputs
to
turn
on
the
selected
register
position.
The
control
lines
"set"
and
"hold"
are
gen-
erated
by
the
CP
set
pulse.
Note
that
"hold"
falls
prior
to
the
rise
of
"set"
and
rises
again
prior
to
the
fall
of
the
set
pulse.
Refer
to
Figure
3.1-2B.
The
numbers
on
the
timing
chart
in
Figure
3.
1-2B
correspond
to
the
test
points
of
Figure
3.
1-2A.
With
the
input
line
active,
the
signal
at
test
point
2
becomes
active.
Test
point
2
conditions
the
+
TO
with
its
output,
test
point
3,
conditioning
one
leg
of
the
+TA.
The
set
pulse
conditions
the
other
leg
of
the
+TA.
The
output
of
this
trigger,
test
point
4,
remains
active
for
the
duration
of
the
set
pulse.
Test
point
4
conditions
the
lower
+TO,
so
that
test
point
5
becomes
active
and
conditions
one
leg
of
the
+TA.
Because
"hold"
becomes
active
prior
to
the
fall
of
the
"set,"
the
lower
trigger
latches
and
retains
the
information.
The
registers
that
contain
shift
cells
are:
1.
Storage
register
(SR)
2.
Accumulator
register
(AC)
30
Multiplier-quotient
register
(MQ)
4.
Index
register
(XR)
Triggers
A
trigger
acts
as
an
information
storage
unit.
Information
can
be
read
into
a
trigger,
and
retained
there
until
the
trigger
is
reset.
The
registers
that
contain
triggers
are:
1.
Program
register
(PR)
2.
Address
register
(AR)
3.
Sense
indicators
(SI)
(This
register
actually
uses
two
triggers
for
each
position
to
permit
complement
operations;
it
should
not
be
confused
with
shift
cell
registers.)
23
23
25
Table of Contents
Table of Contents
3
00 Introduction to the Ibm 7090
6
General System Operation
6
Functional Parts of Acomputer System
6
7090 System Make-Up
7
7090 General Logic
10
The Stored Program
11
Exercises
11
Computer Operations
13
Storage Word Designation
13
The 7090 Word
13
Numeric Quantity (Data) Word
13
CPU Instruction Word
13
Data Channel Command Word
15
Fundamental Components
15
A+B = C, Print C
18
Other Components, Instructions and
22
Commands
22
Cpu Internal Functions
24
Functional Components
24
Storage Register (SR)
24
Accumulator Register (AC)
24
Multiplier-Quotient Register (MQ)
24
Index Registers (XR)
24
Program Register (PR)
24
Address Switches (AS)
27
Tag Registers
33
Adders (AD)
33
Instruction Decoding and Processing
37
Operation Decoders
37
Control Circuits
37
Pulses
37
Basic Cycle
37
Ibm 7606 Multiplexor
39
Multiplexor Functional Units
39
Multiplexor Clock
39
Multiplexor Storage Bus
42
Multiplexor Storage Bus Or'ing
44
Multiplexor Address Switches
44
Data Flow and Control
44
CPU to Core Storage
44
Core Storage to CPU
44
Cpu Data Flow and Timing
46
I Cycle
46
Indirect Addressing
46
Instructions
48
Word Transmission Instructions
48
Fixed-Point Arithmetic Instructions
56
Floating-Point Arithmetic Instructions
69
Transfer Instructions
92
Trap Mode Instructions
98
Skip Instructions
100
Control Instructions
108
Sense Indicator Instructions
112
Index Transmission Instructions
120
AND and or Instructions
129
Convert Instructions
133
Floating-Point Trap
142
Ibm 7151 Console Control Unit
145
Operator's Panel
147
Indicators
147
Manual Controls
150
Manual Control Keys
152
Customer Engineer's Test Panel
159
Indicators
159
Switches
163
Marginal Check Panel
166
Reference Information
167
Condensed Logic
167
Adders
167
Address Register
167
Program Register
167
Sense Indicators
167
Sh Ift C Ounte R
169
Program Counter
169
Accumulator
169
Multiplier Quotient
169
Index Registers
171
Storage Register
171
Service Aids
171
One Card Programs
171
Voltage
175
Adjustment of C Pulse Set
175
Operator's Panel
177
Console Indicators
177
Indicator Lights
178
Unitized Assembly Lights & Keys
179
Switches and Keys
179
Plastic Rocker
179
Reset Motor
179
CE Panel
180
Indicator Lights
180
Switches and Receptacles
180
Marginal Check Panel
181
MC Switches
181
MC Meters
181
Tailgate
182
Signal Connectors
182
Power Connector S
182
