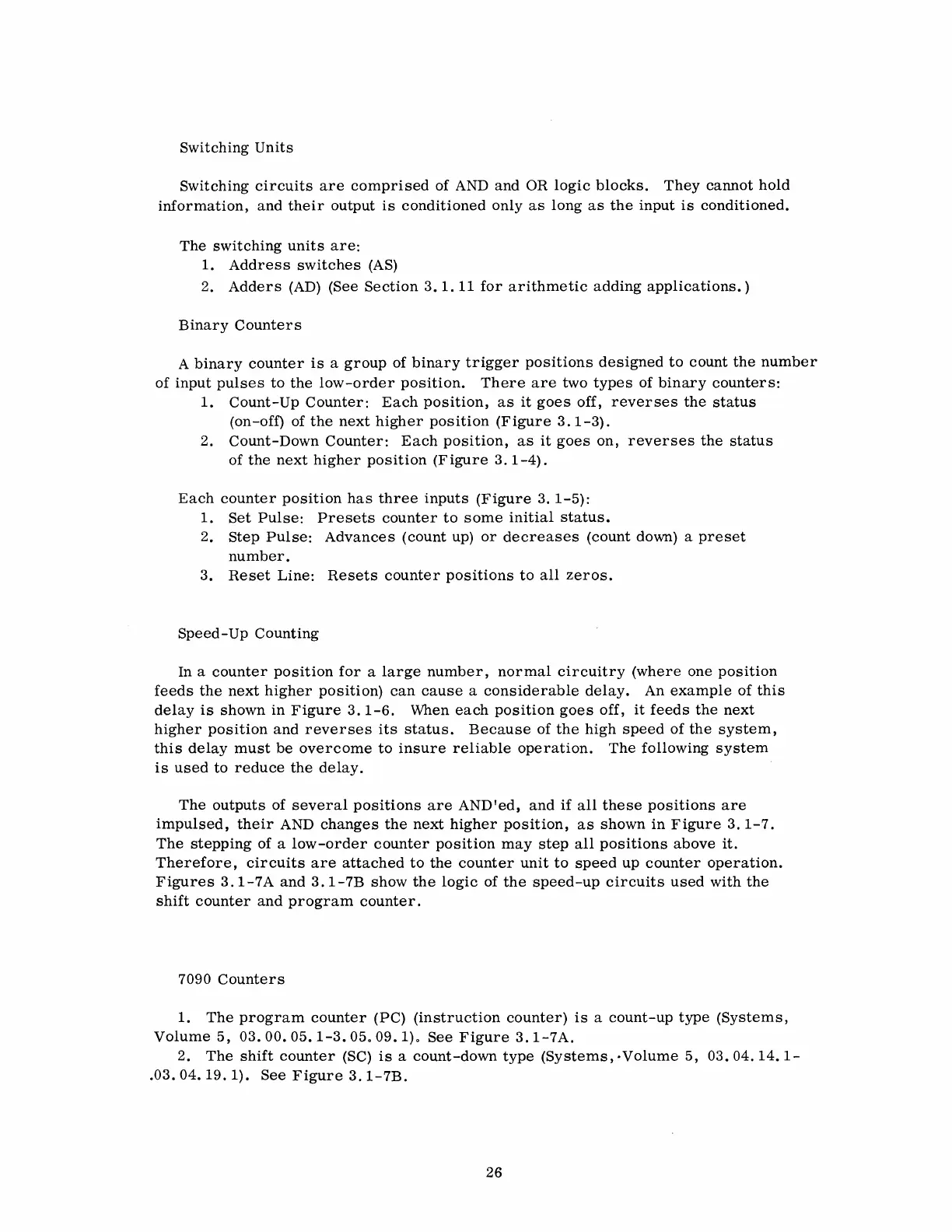

Switching
Units
Switching
circuits
are
comprised
of
AND
and
OR
logic
blocks.
They
cannot
hold
information,
and
their
output
is
conditioned
only
as
long
as
the
input
is
conditioned.
The
switching
units
are:
1.
Address
switches
(AS)
2.
Adders
(AD)
(See
Section
3.
1.
11
for
arithmetic
adding
applications.
)
Binary
Counters
A
binary
counter
is
a
group
of
binary
trigger
positions
designed
to
count
the
number
of
input
pulses
to
the
low-order
position.
There
are
two
types
of
binary
counters:
1.
Count-Up
Counter:
Each
position,
as
it
goes
off,
reverses
the
status
(on-off)
of
the
next
higher
position
(Figure
3.1-3).
2.
Count-Down
Counter:
Each
position,
as
it
goes
on,
reverses
the
status
of
the
next
higher
position
(F
igure
3.
1-4)
.
Each
counter
position
has
three
inputs
(Figure
3.1-5):
1.
Set
Pulse:
Presets
counter
to
some
initial
status.
2.
Step
Pulse:
Advances
(count
up)
or
decreases
(count
down)
a
preset
number.
3.
Reset
Line:
Resets
counter
positions
to
all
zeros.
Speed-Up
Counting
In
a
counter
position
for
a
large
number,
normal
circuitry
(where
one
position
feeds
the
next
higher
position)
can
cause
a
considerable
delay.
An
example
of
this
delay
is
shown
in
Figure
3.1-6.
\Vhen
each
position
goes
off,
it
feeds
the
next
higher
position
and
reverses
its
status.
Because
of
the
high
speed
of
the
system,
this
delay
must
be
overcome
to
insure
reliable
operation.
The
following
system
is
used
to
reduce
the
delay.
The
outputs
of
several
positions
are
AND'ed,
and
if
all
these
positions
are
impulsed,
their
AND
changes
the
next
higher
position,
as
shown
in
Figure
3.
1-7.
The
stepping
of
a
low-order
counter
position
may
step
all
positions
above
it.
Therefore,
circuits
are
attached
to
the
counter
unit
to
speed
up
counter
operation.
Figures
3.1-7
A
and
3.
1-7B
show
the
logic
of
the
speed-up
circuits
used
with
the
shift
counter
and
program
counter.
7090
Counters
1.
The
program
counter
(PC)
(instruction
counter)
is
a
count-up
type
(Systems,
Volume
5,
03.00.05.1-3.05.09.1)0
See
Figure
3.1-7A.
2.
The
shift
counter
(SC)
is
a
count-down
type
(Systems,
Ā·Volume
5,
03.04.14.1-
.03.04.
19.
1).
See
Figure
3.
1-7B.
26
26
28
