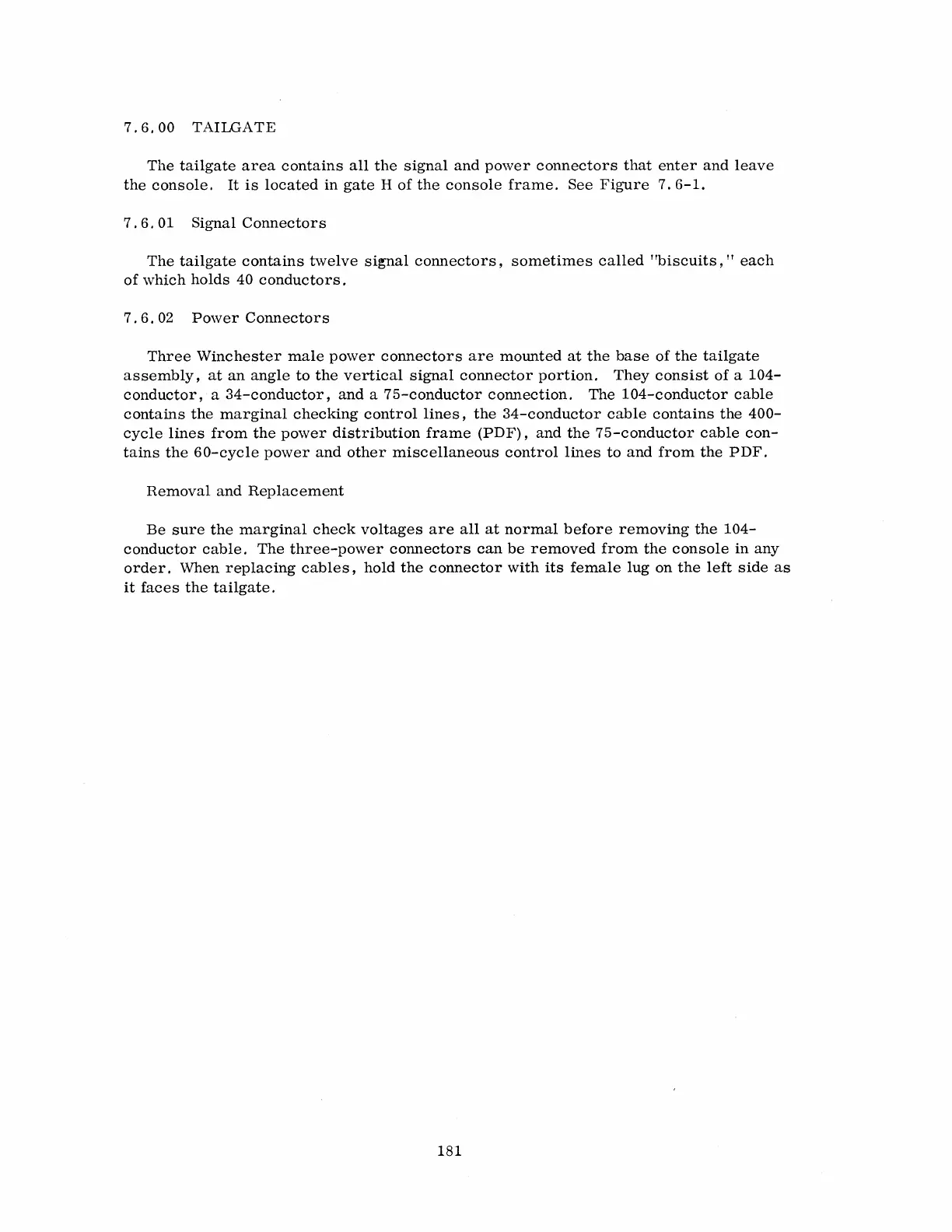

TAILGATE
The
tailgate
area
contains
all
the
signal
and
power
connectors
that
enter
and
leave
the
console.
It
is
located
in
gate
H
of
the
console
frame.
See
Figure
7.
6-1.
7.6.01
Signal
Connectors
The
tailgate
contains
twelve
si~al
connectors,
sometimes
called
"biscuits,"
each
of
which
holds
40
conductors.
7
.
6.
02
Power
Connectors
Three
Winchester
male
power
connectors
are
mounted
at
the
base
of
the
tailgate
assembly,
at
an
angle
to
the
vertical
signal
connector
portion.
They
consist
of
a
104-
conductor,
a
34-conductor,
and
a
75-conductor
connection.
The
104-conductor
cable
contains
the
marginal
checking
control
lines,
the
34-conductor
cable
contains
the
400-
cycle
lines
from
the
power
distribution
frame
(PDF),
and
the
75-conductor
cable
con-
tains
the
60-cycle
power
and
other
miscellaneous
control
lines
to
and
from
the
PDF.
Removal
and
Replacement
Be
sure
the
marginal
check
voltages
are
all
at
normal
before
removing
the
104-
conductor
cable.
The
three-power
connectors
can
be
removed
from
the
console
in
any
order.
When
replacing
cables,
hold
the
connector
with
its
female
lug
on
the
left
side
as
it
faces
the
tailgate.
