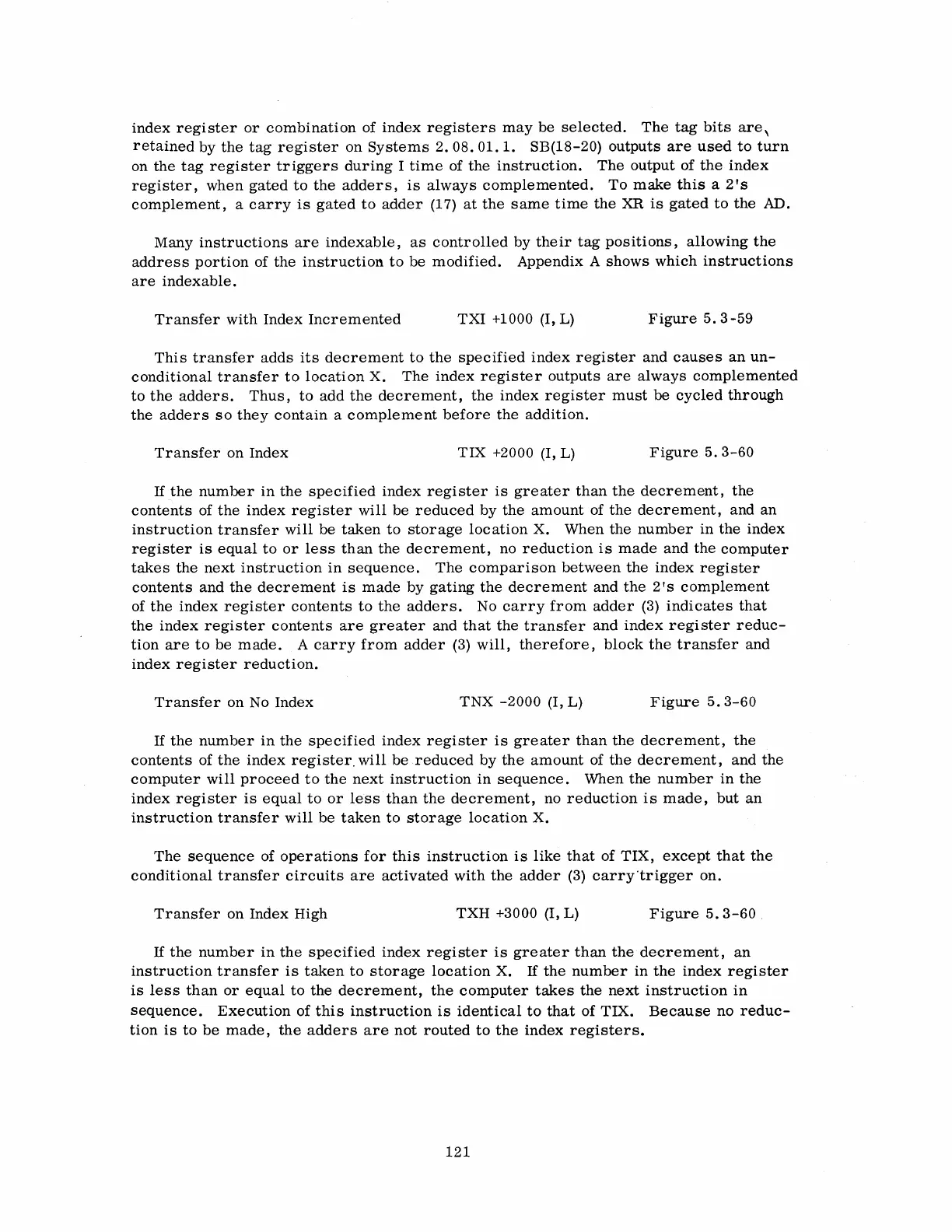

index
register
or
combination
of
index
registers
may
be
selected.
The
tag
bits
are,
retained
by
the
tag
register
on
Systems
2.
OS.
01.
1.
SB(lS-20)
outputs
are
used
to
turn
on
the
tag
register
triggers
during
I
time
of
the
instruction.
The
output
of
the
index
register,
when
gated
to
the
adders,
is
always
complemented.
To
make
this
a
2's
complement,
a
carry
is
gated
to
adder
(17)
at
the
same
time
the
XR
is
gated
to
the
AD.
Many
instructions
are
indexable,
as
controlled
by
their
tag
positions,
allowing
the
address
portion
of
the
instruction
to
be
modified.
Appendix
A
shows
which
instructions
are
index
able
.
Transfer
with
Index
Incremented
TXI
+1000
(I,
L)
Figure
5.3-59
This
transfer
adds
its
decrement
to
the
specified
index
register
and
causes
an
un-
conditional
transfer
to
location
X.
The
index
register
outputs
are
always
complemented
to
the
adders.
Thus,
to
add
the
decrement,
the
index
register
must
be
cycled
through
the
adders
so
they
contain
a
complement
before
the
addition.
Transfer
on
Index
TIX
+2000
(I,
L)
Figure
5.3-60
If
the
number
in
the
specified
index
register
is
greater
than
the
decrement,
the
contents
of
the
index
register
will
be
reduced
by
the
amount
of
the
decrement,
and
an
instruction
transfer
will
be
taken
to
storage
location
X.
When
the
number
in
the
index
register
is
equal
to
or
less
than
the
decrement,
no
reduction
is
made
and
the
computer
takes
the
next
instruction
in
sequence.
The
comparison
between
the
index
register
contents
and
the
decrement
is
made
by
gating
the
decrement
and
the
2'
s
complement
of
the
index
register
contents
to
the
adders.
No
carry
from
adder
(3)
indicates
that
the
index
register
contents
are
greater
and
that
the
transfer
and
index
regi
ster
reduc-
tion
are
to
be
made.
A
carry
from
adder
(3)
will,
therefore,
block
the
transfer
and
index
register
reduction.
Transfer
on
No
Index
TNX
-2000
(I,
L)
Figure
5.3-60
If
the
number
in
the
specified
index
register
is
greater
than
the
decrement,
the
contents
of
the
index
register.
will
be
reduced
by
the
amount
of
the
decrement,
and
the
computer
will
proceed
to
the
next
instruction
in
sequence.
When
the
number
in
the
index
register
is
equal
to
or
less
than
the
decrement,
no
reduction
is
made,
but
an
instruction
transfer
will
be
taken
to
storage
location
X.
The
sequence
of
operations
for
this
instruction
is
like
that
of
TIX,
except
that
the
conditional
transfer
circuits
are
activated
with
the
adder
(3)
carry·trigger
on.
Transfer
on
Index
High
TXH
+3000
(I,
L)
Figure
5.3-60
If
the
number
in
the
specified
index
register
is
greater
than
the
decrement,
an
instruction
transfer
is
taken
to
storage
location
X.
If
the
number
in
the
index
register
is
less
than
or
equal
to
the
decrement,
the
computer
takes
the
next
instruction
in
sequence.
Execution
of
this
instruction
is
identical
to
that
of
TIX.
Because
no
reduc-
tion
is
to
be
made,
the
adders
are
not
routed
to
the
index
registers.
121
121
123
