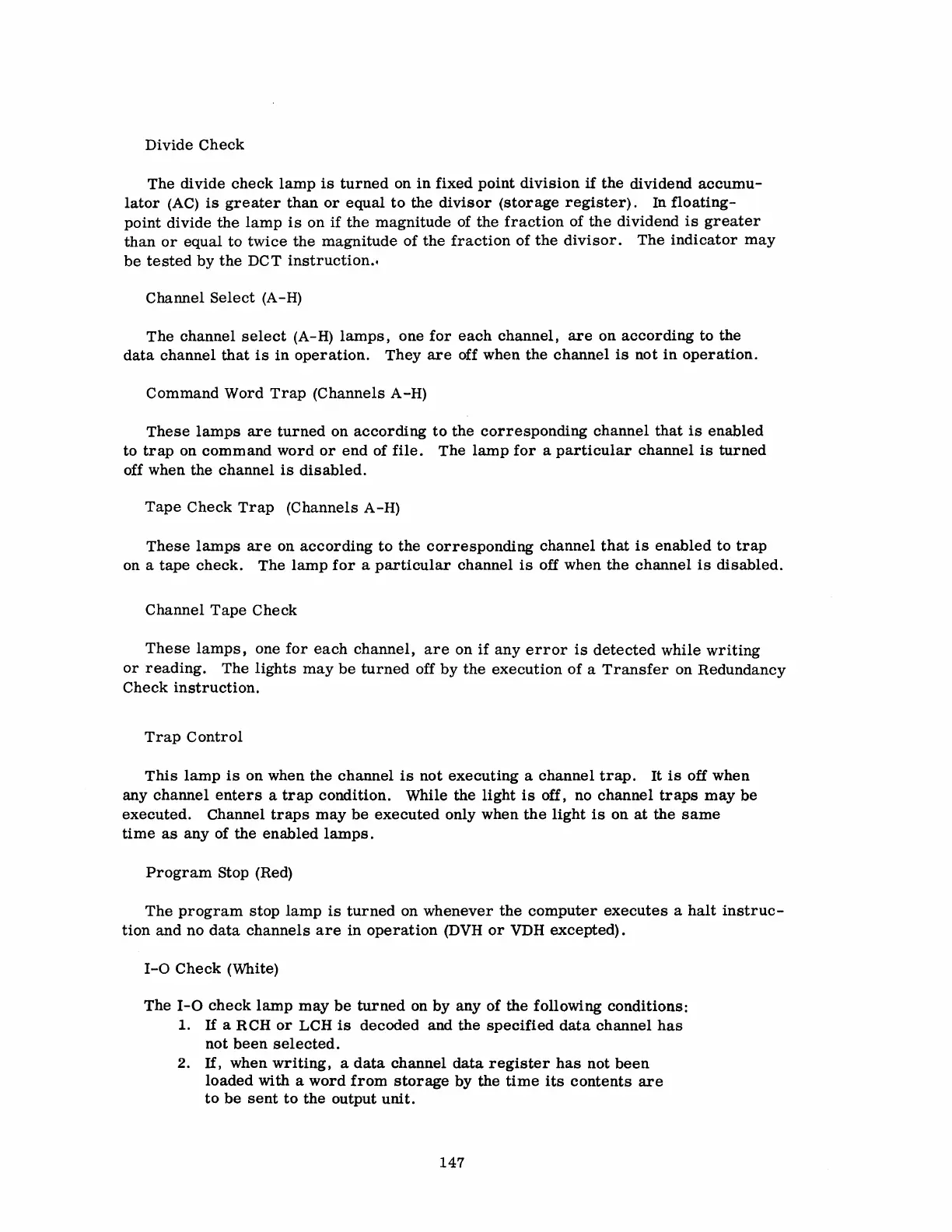

Divide
Check
The
divide
check
lamp
is
turned
on
in
fixed
point
division
if
the
dividend
accumu-
lator
(AC)
is
greater
than
or
equal
to
the
divisor
(storage
register).
In
floating-
point
divide
the
lamp
is
on
if
the
magnitude
of
the
fraction
of
the
dividend
is
greater
than
or
equal
to
twice
the
magnitude
of
the
fraction
of
the
divisor.
The
indicator
may
be
tested
by
the
DCT
instruction
.•
Channel
Select
(A-H)
The
channel
select
(A-H)
lamps,
one
for
each
channel,
are
on
according
to
the
data
channel
that
is
in
operation.
They
are
off
when
the
channel
is
not
in
operation.
Command
Word
Trap
(Channels
A-H)
These
lamps
are
turned
on
according
to
the
corresponding
channel
that
is
enabled
to
trap
on
command
word
or
end
of
file.
The
lamp
for
a
particular
channel
is
turned
off
when
the
channel
is
disabled.
Tape
Check
Trap
(Channels
A-H)
These
lamps
are
on
according
to
the
corresponding
channel
that
is
enabled
to
trap
on
a
tape
check.
The
lamp
for
a
particular
channel
is
off
when
the
channel
is
disabled.
Channel
Tape
Check
These
lamps,
one
for
each
channel,
are
on
if
any
error
is
detected
while
writing
or
reading.
The
lights
may
be
turned
off
by
the
execution
of
a
Transfer
on
Redundancy
Check
instruction.
Trap
Control
This
lamp
is
on
when
the
channel
is
not
executing
a
channel
trap.
It
is
off
when
any
channel
enters
a
trap
condition.
While
the
light
is
off,
no
channel
traps
may
be
executed.
Channel
traps
may
be
executed
only
when
the
light
is
on
at
the
same
time
as
any
of
the
enabled
lamps.
Program
Stop
(Red)
The
program
stop
lamp
is
turned
on
whenever
the
computer
executes
a
halt
instruc-
tion
and
no
data
channels
are
in
operation
(DVH
or
VDH
excepted).
1-0
Check
(White)
The
1-0
check
lamp
may
be
turned
on
by
any
of
the
following
conditions:
1.
If
aRCH
or
LCH
is
decoded
and
the
specified
data
channel
has
not
been
selected.
2.
If,
when
writing,
a
data
channel
data
register
has
not
been
loaded
with
a
word
from
storage
by
the
time
its
contents
are
to
be
sent
to
the
output
unit.
147
