IBM 7090 - Page 5

CORE STORAGE
CARD MACHINES
To Channels B-D
CENTRAL PROCESSING UNIT
MULTIPLEXOR
DATA CHANNEL A
TAPE UNIT

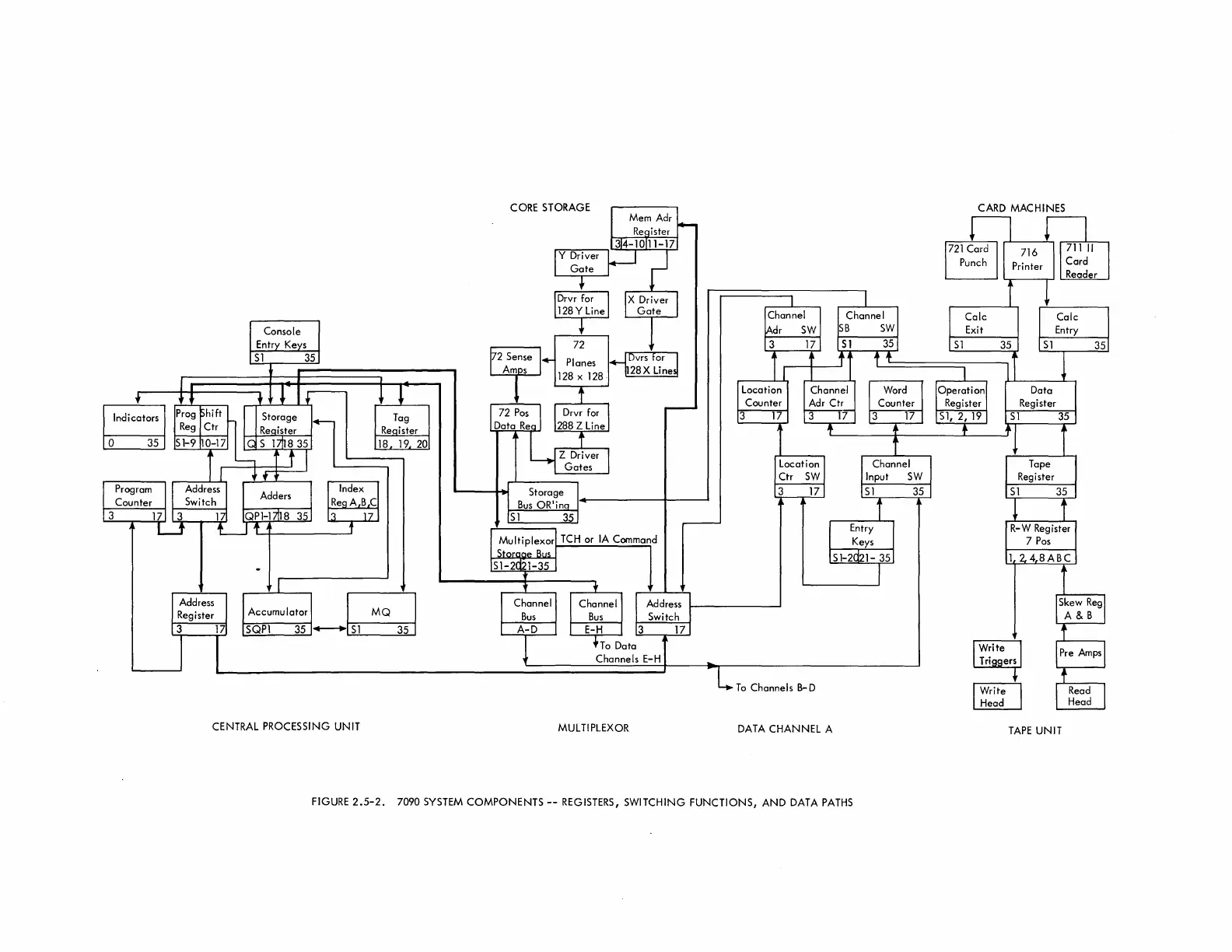

FIGURE 2.5-2. 7090 SYSTEM COMPONENTS -- REGISTERS, SWITCHING FUNCTIONS, AND DATA PATHS
