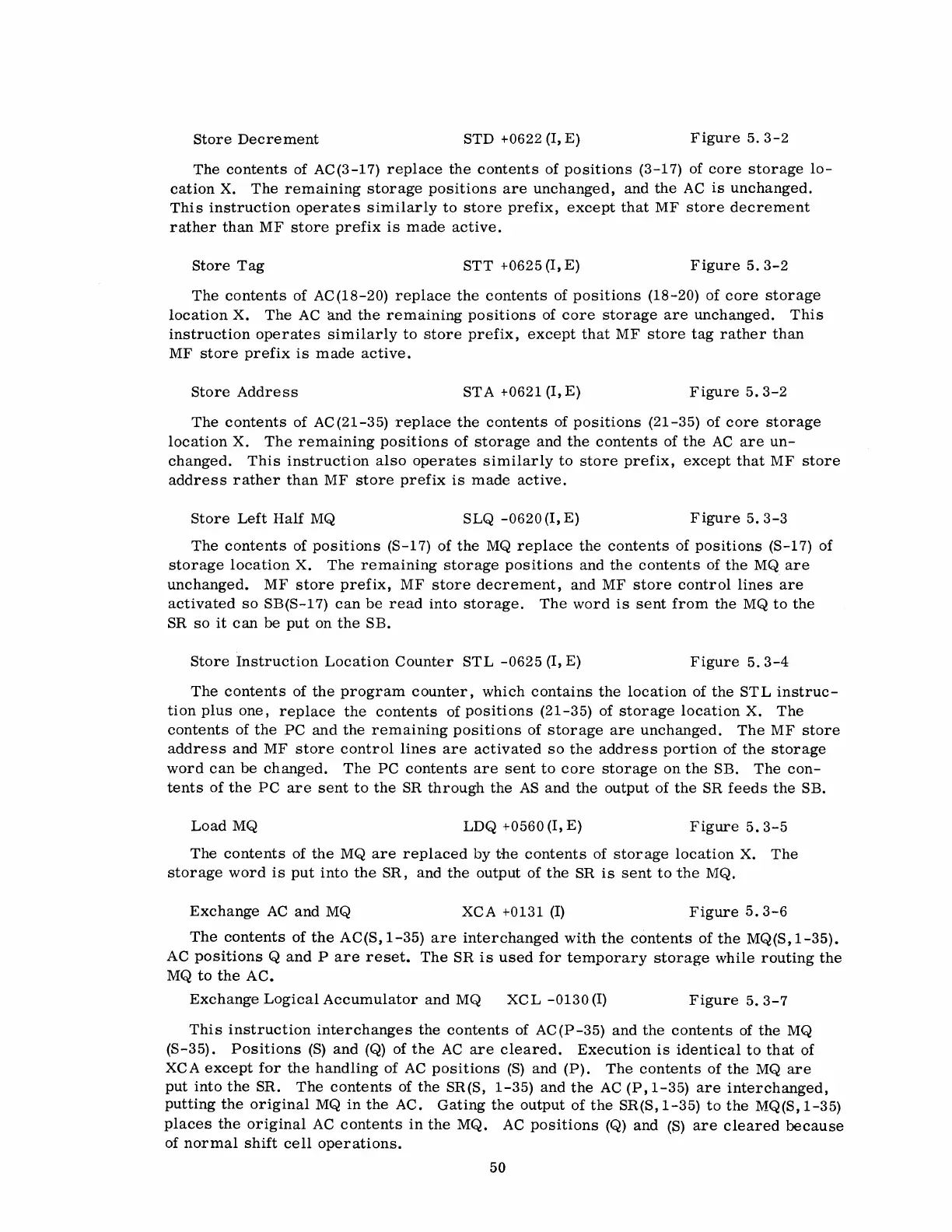

Store
Decrement
STD
+0622
(I,
E)
Figure
5.3-2
The
contents
of
AC(3-17)
replace
the
contents
of
positions
(3-17)
of
core
storage
lo-
cation
X.
The
remaining
storage
positions
are
unchanged,
and
the
AC
is
unchanged.
This
instruction
operates
similarly
to
store
prefix,
except
that
MF
store
decrement
rather
than
MF
store
prefix
is
made
active.
Store
Tag
STT
+0625
(I,
E)
Figure
5.3-2
The
contents
of
AC(18-20)
replace
the
contents
of
positions
(18-20)
of
core
storage
location
X.
The
AC
and
the
remaining
positions
of
core
storage
are
unchanged.
This
instruction
operates
similarly
to
store
prefix,
except
that
MF
store
tag
rather
than
MF
store
prefix
is
made
active.
Store
Address
ST
A
+0621
(I,
E)
Figure
5.3-2
The
contents
of
AC(21-35)
replace
the
contents
of
positions
(21-35)
of
core
storage
location
X.
The
remaining
positions
of
storage
and
the
contents
of
the
AC
are
un-
changed.
This
instruction
also
operates
Similarly
to
store
prefix,
except
that
MF
store
address
rather
than
MF
store
prefix
is
made
active.
Store
Left
Half
MQ
SLQ
-0620
(1,
E)
Figure
5.3-3
The
contents
of
positions
(S-17)
of
the
MQ
replace
the
contents
of
positions
(S-17)
of
storage
location
X.
The
remaining
storage
positions
and
the
contents
of
the
MQ
are
unchanged.
MF
store
prefix,
MF
store
decrement,
and
MF
store
control
lines
are
activated
so
SB(S-17)
can
be
read
into
storage.
The
word
is
sent
from
the
MQ
to
the
SR
so
it
can
be
put
on
the
SB.
Store
Instruction
Location
Counter
STL
-0625
(1,
E)
Figure
5.3-4
The
contents
of
the
program
counter,
which
contains
the
location
of
the
STL
instruc-
tion
plus
one,
replace
the
contents
of
positions
(21-35)
of
storage
location
X.
The
contents
of
the
PC
and
the
remaining
positions
of
storage
are
unchanged.
The
MF
store
address
and
MF
store
control
lines
are
activated
so
the
address
portion
of
the
storage
word
can
be
changed.
The
PC
contents
are
sent
to
core
storage
on
the
SB.
The
con-
tents
of
the
PC
are
sent
to
the
SR
through
the
AS
and
the
output
of
the
SR
feeds
the
SB.
Load
MQ
LDQ
+0560
(1,
E)
Figure
5.3-5
The
contents
of
the
MQ
are
replaced
by
the
contents
of
stor
age
location
X.
The
storage
word
is
put
into
the
SR,
and
the
output
of
the
SR
is
sent
to
the
MQ.
Exchange
AC
and
MQ
XCA
+0131
(1)
Figure
5.3-6
The
contents
of
the
AC(S,
1-35)
are
interchanged
with
the
contents
of
the
MQ(S,1-35).
AC
positions
Q
and
P
are
reset.
The
SR
is
used
for
temporary
storage
while
routing
the
MQ
to
the
AC.
Exchange
Logical
Accumulator
and
MQ
XC
L
-0130
(I)
Figure
5.3-7
This
instruction
interchanges
the
contents
of
AC(P-35)
and
the
contents
of
the
MQ
(S-35).
Positions
(S)
and
(Q)
of
the
AC
are
cleared.
Execution
is
identical
to
that
of
XCA
except
for
the
handling
of
AC
positions
(S)
and
(P).
The
contents
of
the
MQ
are
put
into
the
SR.
The
contents
of
the
SR(S,
1-35)
and
the
AC
(P,
1-35)
are
interchanged,
putting
the
original
MQ
in
the
AC.
Gating
the
output
of
the
SR(S,
1-35)
to
the
MQ(S,
1-35)
places
the
original
AC
contents
in
the
MQ.
AC
positions
(Q)
and
(S)
are
cleared
because
of
normal
shift
cell
operations.
50
50
52
Table of Contents
Table of Contents
3
00 Introduction to the Ibm 7090
6
General System Operation
6
Functional Parts of Acomputer System
6
7090 System Make-Up
7
7090 General Logic
10
The Stored Program
11
Exercises
11
Computer Operations
13
Storage Word Designation
13
The 7090 Word
13
Numeric Quantity (Data) Word
13
CPU Instruction Word
13
Data Channel Command Word
15
Fundamental Components
15
A+B = C, Print C
18
Other Components, Instructions and
22
Commands
22
Cpu Internal Functions
24
Functional Components
24
Storage Register (SR)
24
Accumulator Register (AC)
24
Multiplier-Quotient Register (MQ)
24
Index Registers (XR)
24
Program Register (PR)
24
Address Switches (AS)
27
Tag Registers
33
Adders (AD)
33
Instruction Decoding and Processing
37
Operation Decoders
37
Control Circuits
37
Pulses
37
Basic Cycle
37
Ibm 7606 Multiplexor
39
Multiplexor Functional Units
39
Multiplexor Clock
39
Multiplexor Storage Bus
42
Multiplexor Storage Bus Or'ing
44
Multiplexor Address Switches
44
Data Flow and Control
44
CPU to Core Storage
44
Core Storage to CPU
44
Cpu Data Flow and Timing
46
I Cycle
46
Indirect Addressing
46
Instructions
48
Word Transmission Instructions
48
Fixed-Point Arithmetic Instructions
56
Floating-Point Arithmetic Instructions
69
Transfer Instructions
92
Trap Mode Instructions
98
Skip Instructions
100
Control Instructions
108
Sense Indicator Instructions
112
Index Transmission Instructions
120
AND and or Instructions
129
Convert Instructions
133
Floating-Point Trap
142
Ibm 7151 Console Control Unit
145
Operator's Panel
147
Indicators
147
Manual Controls
150
Manual Control Keys
152
Customer Engineer's Test Panel
159
Indicators
159
Switches
163
Marginal Check Panel
166
Reference Information
167
Condensed Logic
167
Adders
167
Address Register
167
Program Register
167
Sense Indicators
167
Sh Ift C Ounte R
169
Program Counter
169
Accumulator
169
Multiplier Quotient
169
Index Registers
171
Storage Register
171
Service Aids
171
One Card Programs
171
Voltage
175
Adjustment of C Pulse Set
175
Operator's Panel
177
Console Indicators
177
Indicator Lights
178
Unitized Assembly Lights & Keys
179
Switches and Keys
179
Plastic Rocker
179
Reset Motor
179
CE Panel
180
Indicator Lights
180
Switches and Receptacles
180
Marginal Check Panel
181
MC Switches
181
MC Meters
181
Tailgate
182
Signal Connectors
182
Power Connector S
182
