IBM 7090 - Page 65

I Time
Next Inst
MQ1=1
No
Yes
AC(Q-35) ... AD
Carry .... A D(35)
10 (D3)
2.12.24.1
10 (D3)
2.12.29.1
""'-
~
~
,
AD(Q-35) "'AC
12 (Dl)
2.12.31.1
Operates the Same as MPY, Except
that the Above is also Done During
the
I Cycle after ... MPY.

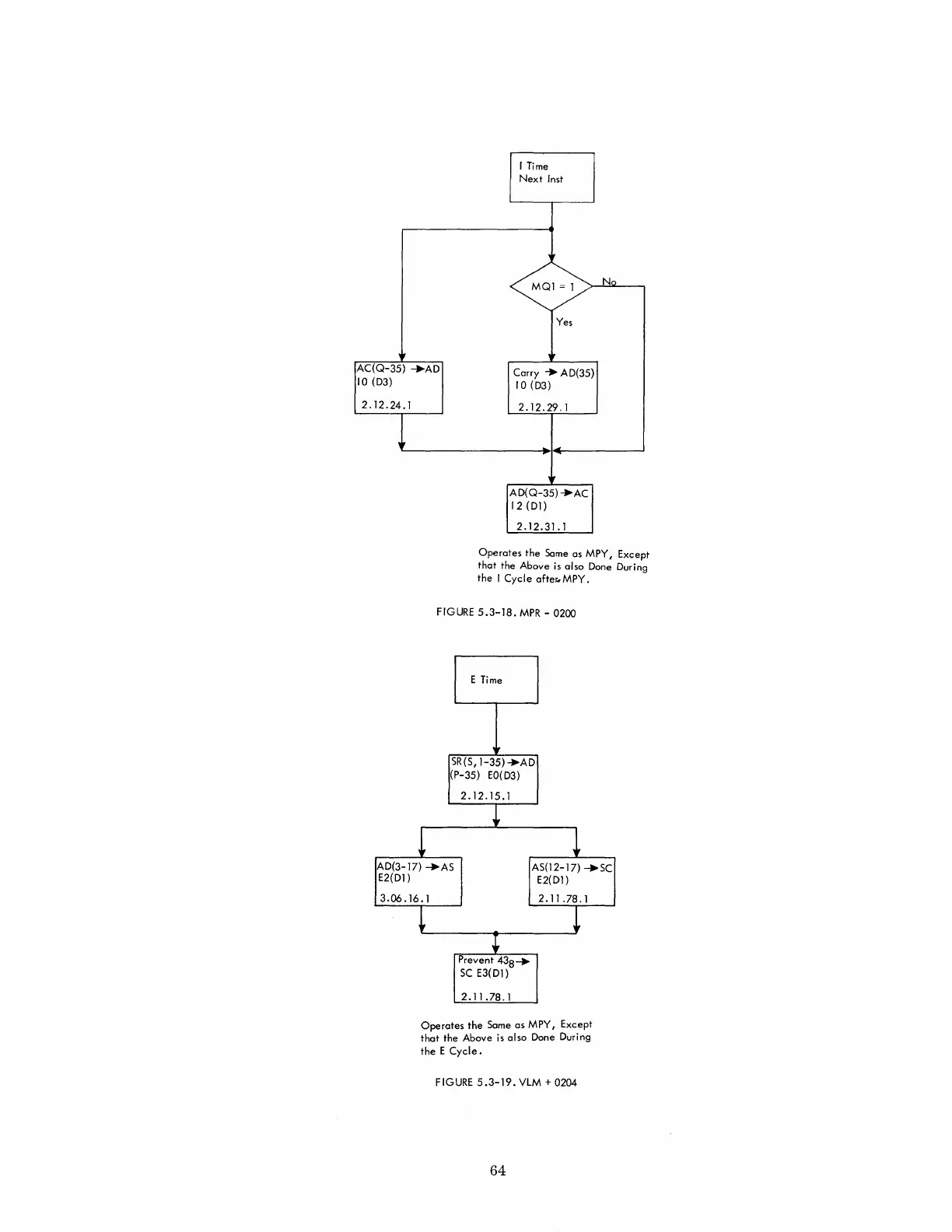

FIGURE 5.3-18. MPR - 0200
E Time
SR(S,l-35)"'AD
(P-35) EO(D3)
2.12.15.1
1
AD(3-17) "'AS
E2(D1)
AS(12-17)
"'SC
E2(Dl)
3.06.16.1
Prevent 438'"
SC E3(D1)
2.11.78.1
2.11.78.1
Operates the Same as MPY, Except
that the Above is also Done During
the E Cycle.
FIGURE 5.3-19. VLM + 0204
64
