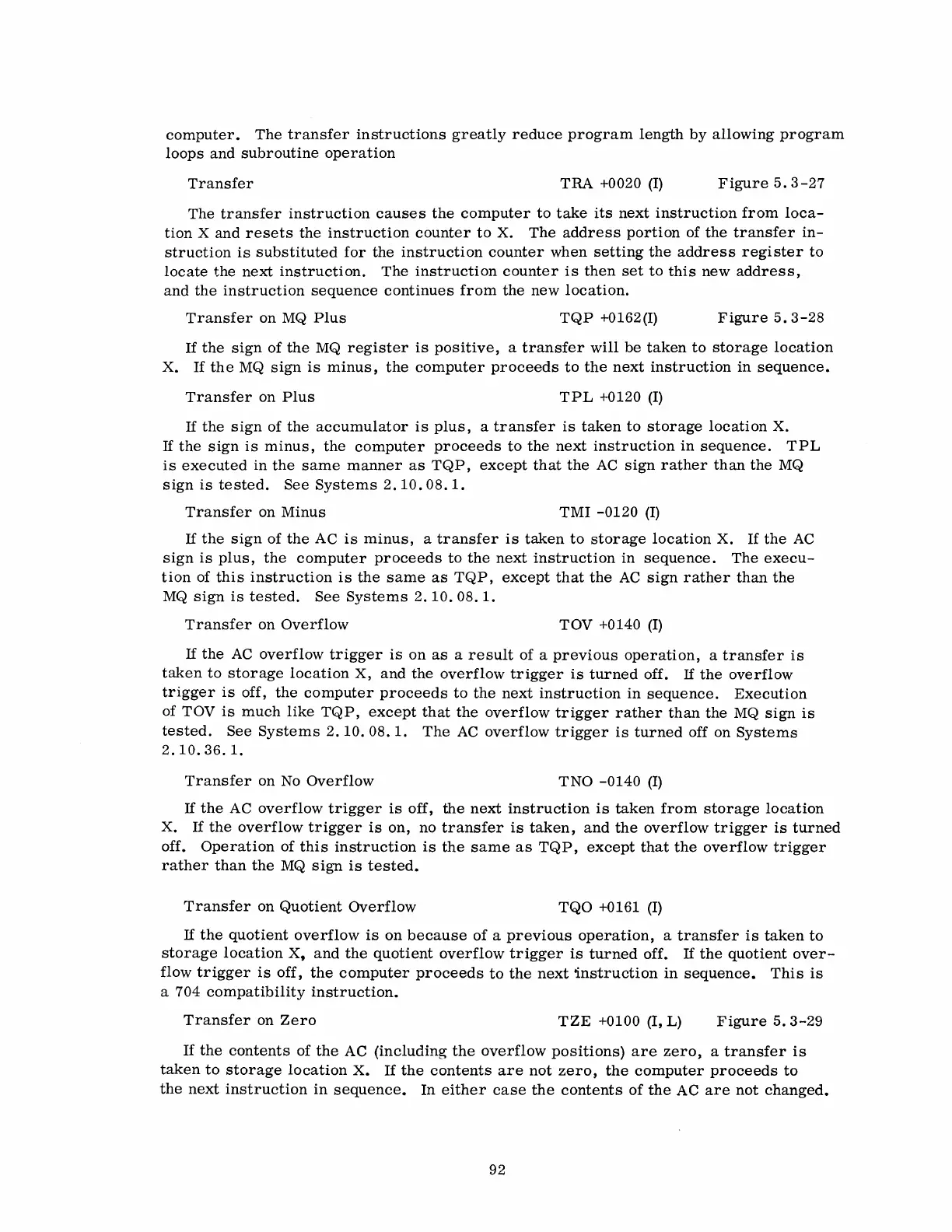

computer.
The
transfer
instructions
greatly
reduce
program
length
by
allowing
program
loops
and
subroutine
operation
Transfer
TRA
+0020
(I)
Figure
5.3-27
The
transfer
instruction
causes
the
computer
to
take
its
next
instruction
from
loca-
tion
X
and
resets
the
instruction
counter
to
X.
The
address
portion
of
the
transfer
in-
struction
is
substituted
for
the
instruction
counter
when
setting
the
address
register
to
locate
the
next
instruction.
The
instruction
counter
is
then
set
to
this
new
address,
and
the
instruction
sequence
continues
from
the
new
location.
Transfer
on
MQ
Plus
TQP
+0162(1)
Figure
5.3-28
If
the
sign
of
the
MQ
register
is
positive,
a
transfer
will
be
taken
to
storage
location
X.
If
the
MQ
sign
is
minus,
the
computer
proceeds
to
the
next
instruction
in
sequence.
Transfer
on
Plus
TPL
+0120
(I)
If
the
sign
of
the
accumulator
is
plus,
a
transfer
is
taken
to
storage
location
X.
If
the
sign
is
minus,
the
computer
proceeds
to
the
next
instruction
in
sequence.
TPL
is
executed
in
the
same
manner
as
TQP,
except
that
the
AC
sign
rather
than
the
MQ
sign
is
tested.
See
Systems
2.10.08.1.
Transfer
on
Minus
TMI
-0120
(I)
If
the
sign
of
the
AC
is
minus,
a
transfer
is
taken
to
storage
location
X.
If
the
AC
sign
is
plus,
the
computer
proceeds
to
the
next
instruction
in
sequence.
The
execu-
tion
of
this
instruction
is
the
same
as
TQP,
except
that
the
AC
sign
rather
than
the
MQ
sign
is
tested.
See
Systems
2.
10.
08.
1.
Transfer
on
Overflow
TOV
+0140
(I)
If
the
AC
overflow
trigger
is
on
as
a
result
of
a
previous
operation,
a
transfer
is
taken
to
storage
location
X,
and
the
overflow
trigger
is
turned
off.
If
the
overflow
trigger
is
off,
the
computer
proceeds
to
the
next
instruction
in
sequence.
Execution
of
TOV
is
much
like
TQP,
except
that
the
overflow
trigger
rather
than
the
MQ
sign
is
tested.
See
Systems
2.
10.
08.
1.
The
AC
overflow
trigger
is
turned
off
on
Systems
2.10.36.1.
Transfer
on
No
Overflow
TNO
-0140
(I)
If
the
AC
overflow
trigger
is
off,
the
next
instruction
is
taken
from
storage
location
X.
If
the
overflow
trigger
is
on,
no
transfer
is
taken,
and
the
overflow
trigger
is
turned
off.
Operation
of
this
instruction
is
the
same
as
TQP,
except
that
the
overflow
trigger
rather
than
the
MQ
sign
is
tested.
Transfer
on
Quotient
Overflow
TQO
+0161
(I)
If
the
quotient
overflow
is
on
because
of
a
previous
operation,
a
transfer
is
taken
to
storage
location
X,
and
the
quotient
overflow
trigger
is
turned
off.
If
the
quotient
over-
flow
trigger
is
off,
the
computer
proceeds
to
the
next
instruction
in
sequence.
This
is
a
704
compatibility
instruction.
Transfer
on
Zero
TZE
+0100
(I,
L)
Figure
5.3-29
If
the
contents
of
the
AC
(including
the
overflow
positions)
are
zero,
a
transfer
is
taken
to
storage
location
X.
If
the
contents
are
not
zero,
the
computer
proceeds
to
the
next
instruction
in
sequence.
In
either
case
the
contents
of
the
AC
are
not
changed.
92
