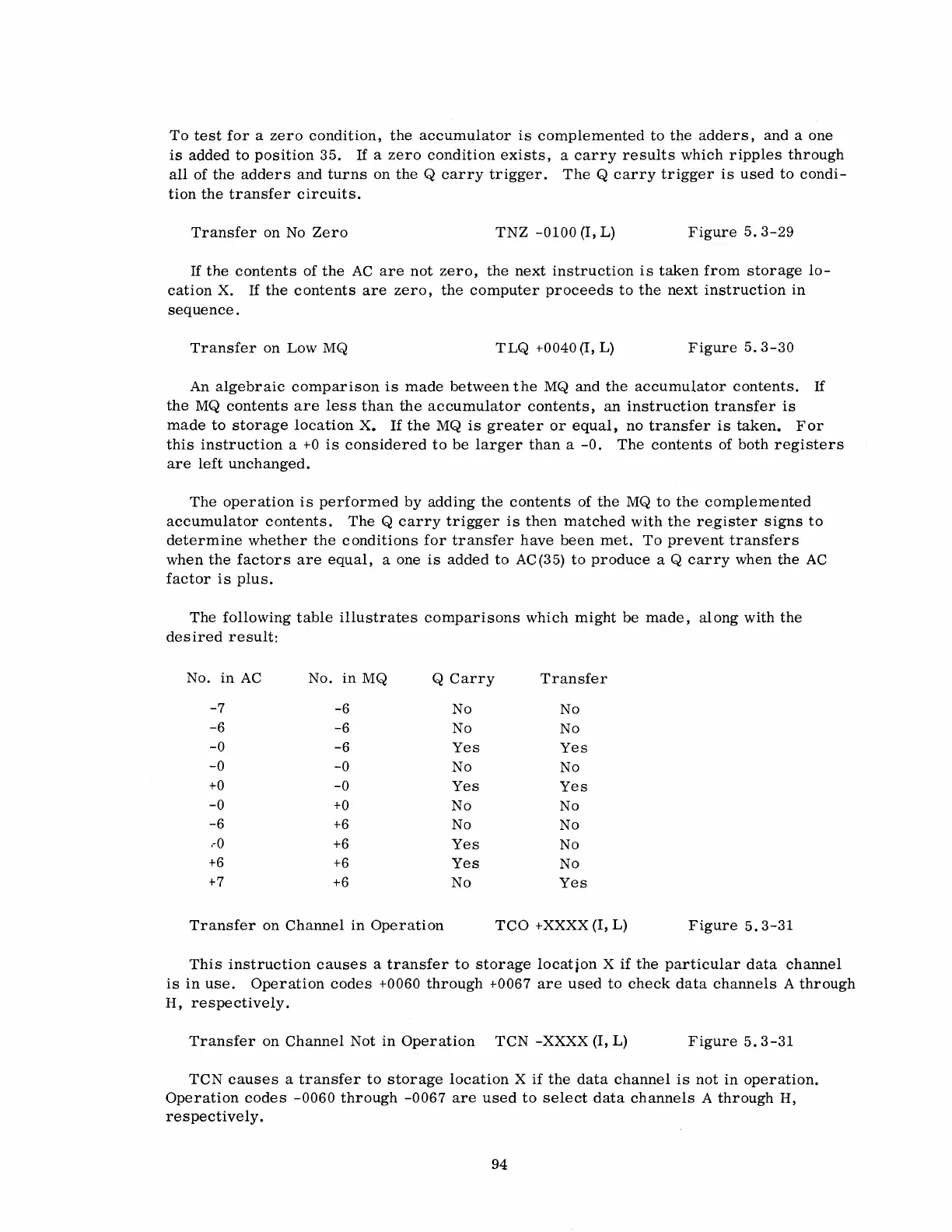

To
test
for
a
zero
condition,
the
accumulator
is
complemented
to
the
adders,
and
a
one
is
added
to
position
35.
If
a
zero
condition
exists,
a
carry
results
which
ripples
through
all
of
the
adders
and
turns
on
the
Q
carry
trigger.
The
Q
carry
trigger
is
used
to
condi-
tion
the
transfer
circuits.
Transfer
on
No
Zero
TNZ
-0100
(1,
L)
Figure
5.3-29
If
the
contents
of
the
AC
are
not
zero,
the
next
instruction
is
taken
from
storage
lo-
cation
X.
If
the
contents
are
zero,
the
computer
proceeds
to
the
next
instruction
in
sequence.
Transfer
on
Low
MQ
TLQ
+0040
(I,
L)
Figure
5.3-30
An
algebraic
comparison
is
made
between
the
MQ
and
the
accumulator
contents.
If
the
MQ
contents
are
less
than
the
accumulator
contents,
an
instruction
transfer
is
made
to
storage
location
X.
If
the
MQ
is
greater
or
equal,
no
transfer
is
taken.
For
this
instruction
a
+0
is
considered
to
be
larger
than
a
-0.
The
contents
of
both
registers
are
left
unchanged.
The
operation
is
performed
by
adding
the
contents
of
the
MQ
to
the
complemented
accumulator
contents.
The
Q
carry
trigger
is
then
matched
with
the
re.gister
signs
to
determine
whether
the
conditions
for
transfer
have
been
met.
To
prevent
transfers
when
the
factors
are
equal,
a
one
is
added
to
AC(35)
to
produce
a
Q
carry
when
the
AC
factor
is
plus.
The
following
table
illustrates
comparisons
which
might
be
made,
along
with
the
desired
result:
No.
in
AC
No.
in
MQ
Q
Carry
Transfer
-7
-6
No
No
-6
-6
No
No
-0
-6
Yes
Yes
-0
-0
No
No
+0
-0
Yes
Yes
-0
+0
No
No
-6
+6
No
No
,-0
+6
Yes
No
+6
+6
Yes
No
+7
+6
No
Yes
Transfer
on
Channel
in
Operation
TCO
+XXXX
(I,
L)
Figure
5.3-31
This
instruction
causes
a
transfer
to
storage
locaqon
X
if
the
particular
data
channel
is
in
use.
Operation
codes
+0060
through
+0067
are
used
to
check
data
channels
A
through
H,
respectively.
Transfer
on
Channel
Not
in
Operation
TCN
-XXXX
(I,
L)
Figure
5.3-31
TCN
causes
a
transfer
to
storage
location
X
if
the
data
channel
is
not
in
operation.
Operation
codes
-0060
through
-0067
are
used
to
select
data
channels
A
through
H,
respectively.
94
