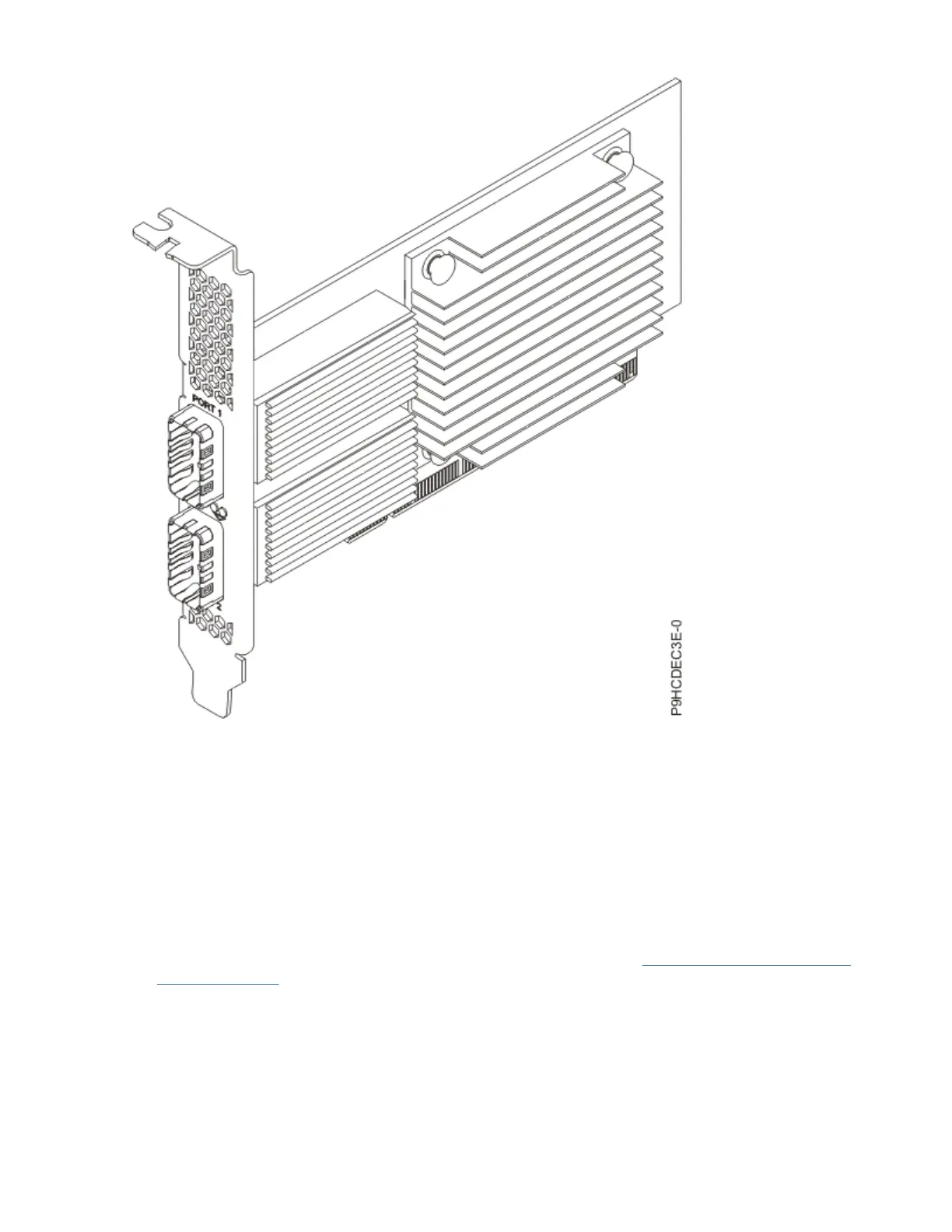

Figure 24. PCIe3 2-port 100 Gb EDR InniBand adapter

Specications

Item

Description

Adapter FRU number

00WT075 (Designed to comply with RoHS requirement.)

I/O bus architecture

PCIe3 x16

Slot requirement

For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules

and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/

p9eab_mtm_pciplacement.htm) and select the system you are working on.

Voltage

3.3 V

Form factor

Short, low-prole (FC EC3E)

Short, will full-height tailstock (FC EC3F)
