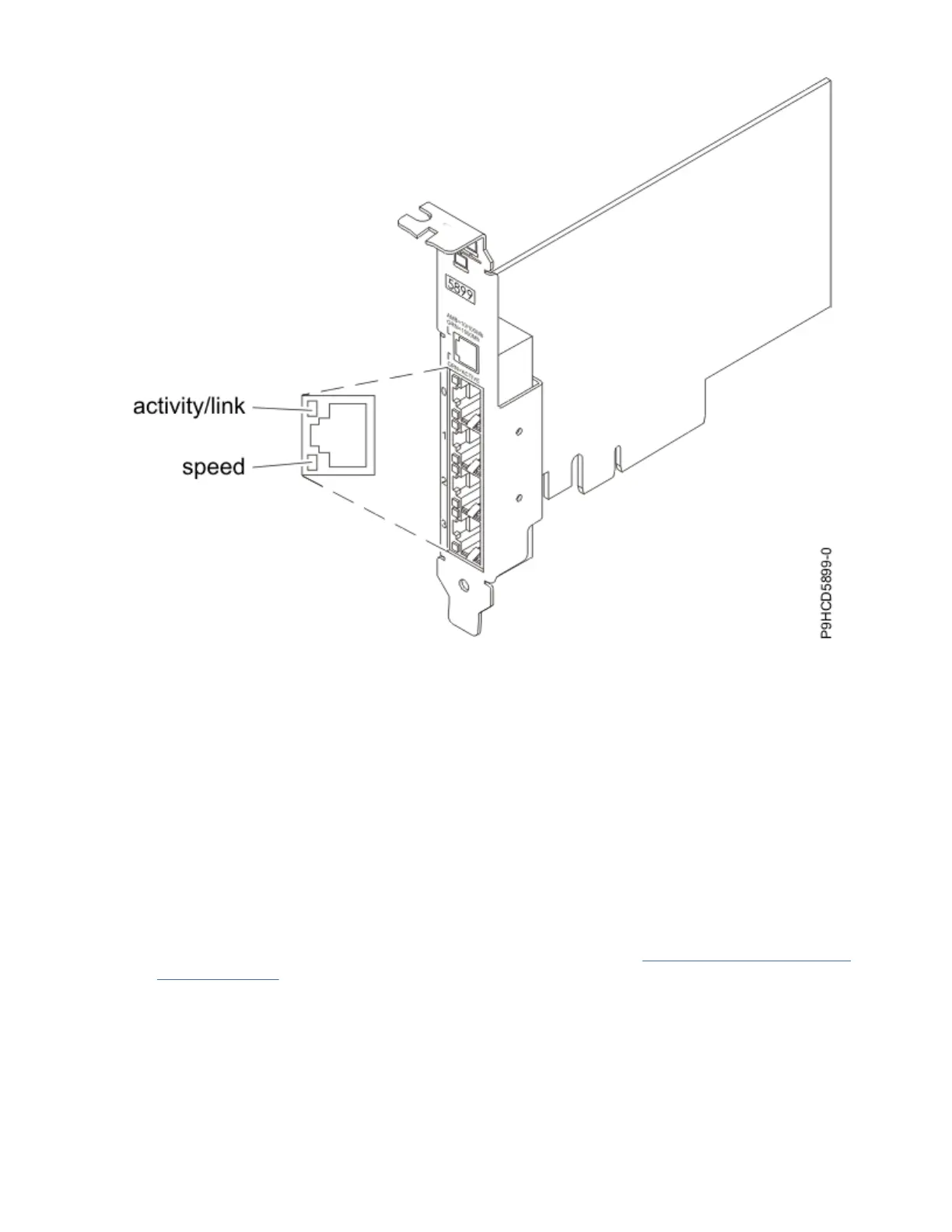

Figure 4. FC 5899 and FC EL4L PCIe2 4-port 1 GbE adapter
Specications
Item
Description
Adapter FRU number
74Y4064 (Designed to comply with RoHS requirement)
Wrap plug
10N7405
Note: Wrap plugs are not included with the card and cannot be purchased from IBM.
I/O bus architecture
PCIe2 x4
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Voltage
3.3 V
Form factor
short, low-prole
Connector information
• Two RJ-45 ports
