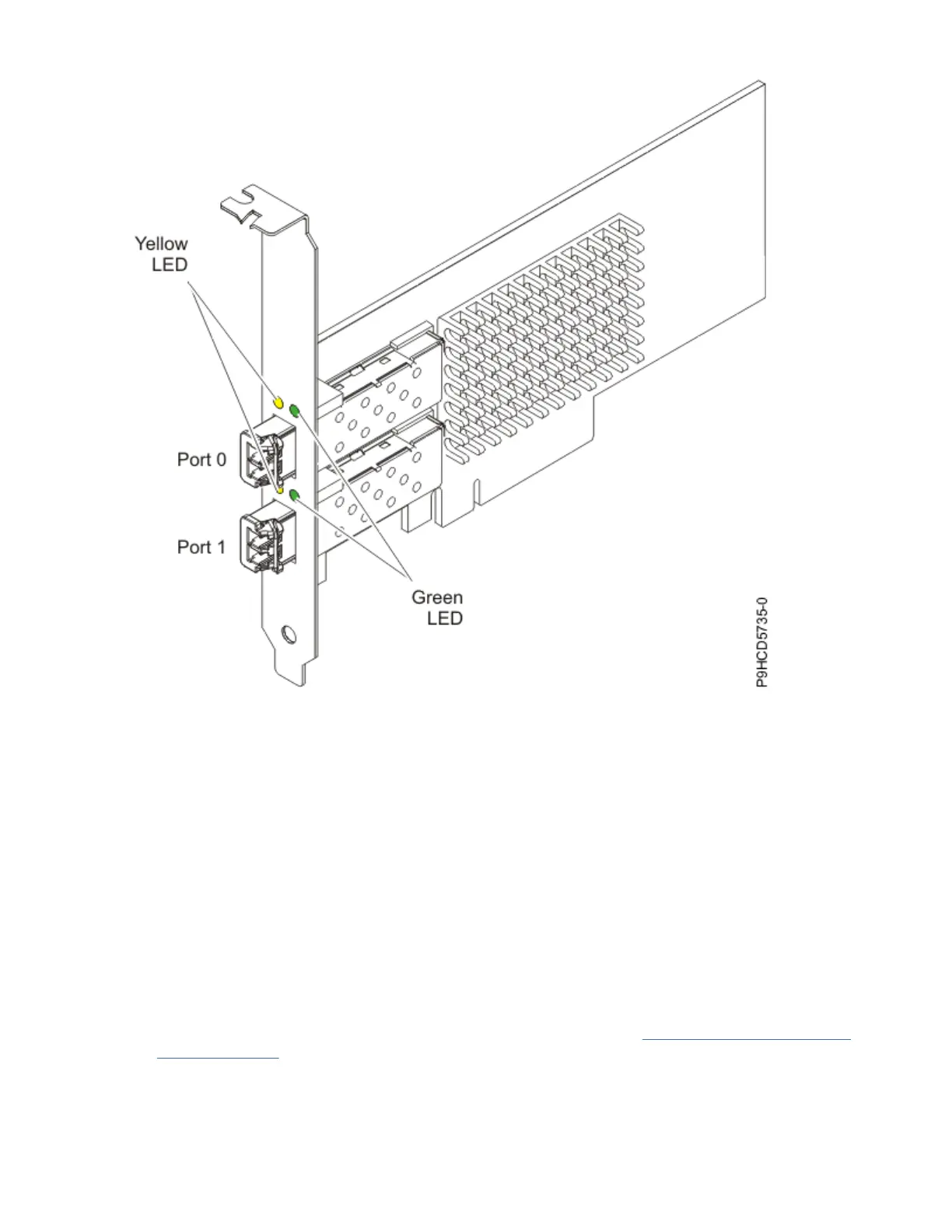

Figure 7. PCIe 8 Gb 2-Port Fibre Channel adapter (FC 5735 and FC 5738)
Adapter specications
Item
Description
FRU number
10N9824 (Designed to comply with RoHS requirement).
Wrap plug FRU number
12R9314
Note: The wrap plug is included with the card, and can also be purchased from IBM.
I/O bus architecture
PCI Express (PCIe) Base and Card Electromechanical (CEM) 2.0
x8 PCIe bus interface.
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Voltage
3.3 V.
Managing PCIe adapters
61
