PCIe3 cable adapter (FC EJ07; CCIN 6B52)
Learn about the specications and operating system requirements for the feature code (FC) EJ07 adapter.
Overview
The FC EJ07 is a double-wide, low-prole, PCIe generation 3 (PCIe3) cable adapter. The adapter provides
two optical ports for the attachment of two expansion drawer cables. One adapter supports the
attachment of one PCIe3 6-slot fanout module in a EMX0 PCIe Gen3 I/O expansion drawer.
Note: The FC EJ07 (CCIN 6B52) adapter only works with the CCIN 50CB PCIe3 6-slot fanout module.

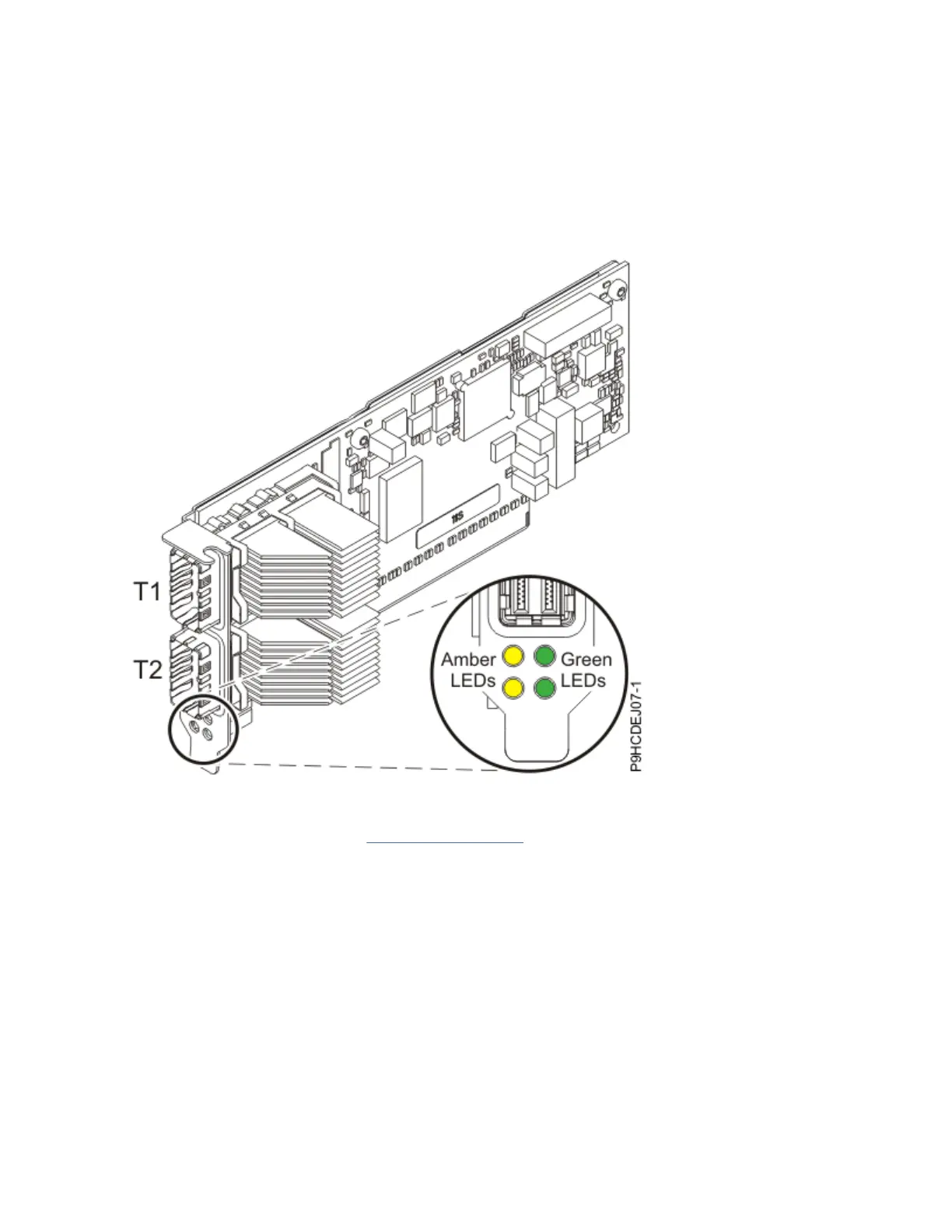

Figure 42. PCIe3 x16 GPU adapter
Note: The LEDs that are shown in Figure 42 on page 133 indicate the following states:
• The green LED indicates link status. If the green LED is on, at least one PCIe link is in the trained state.
• The amber LED indicates FRU identify. If the amber LED is on, it will blink at 2 Hz, and indicates that the
adapter is in the identify function state.
Specications
Item
Description
Adapter FRU number
000TK704 (Designed to comply with RoHS requirement).
I/O bus architecture
PCIe3 x16
Managing PCIe adapters
133
