Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Voltage
12 V
Form factor
Full-height, full-length
PCIe3 cable adapter (FC EJ08; CCIN 2CE2)
Learn about the specications and operating system requirements for the feature code (FC) EJ08 adapter.
Overview
The FC EJ08 is a full-height, half-length PCIe3 cable adapter. The adapter provides two optical ports for
the attachment of two expansion drawer cables. One adapter supports the attachment of one PCIe3 6-
slot fanout module in a EMX0 PCIe Gen3 I/O expansion drawer.
Note: The FC EJ08 (CCIN 2CE2) adapter only works with the CCIN 50CB PCIe3 6-slot fanout module.

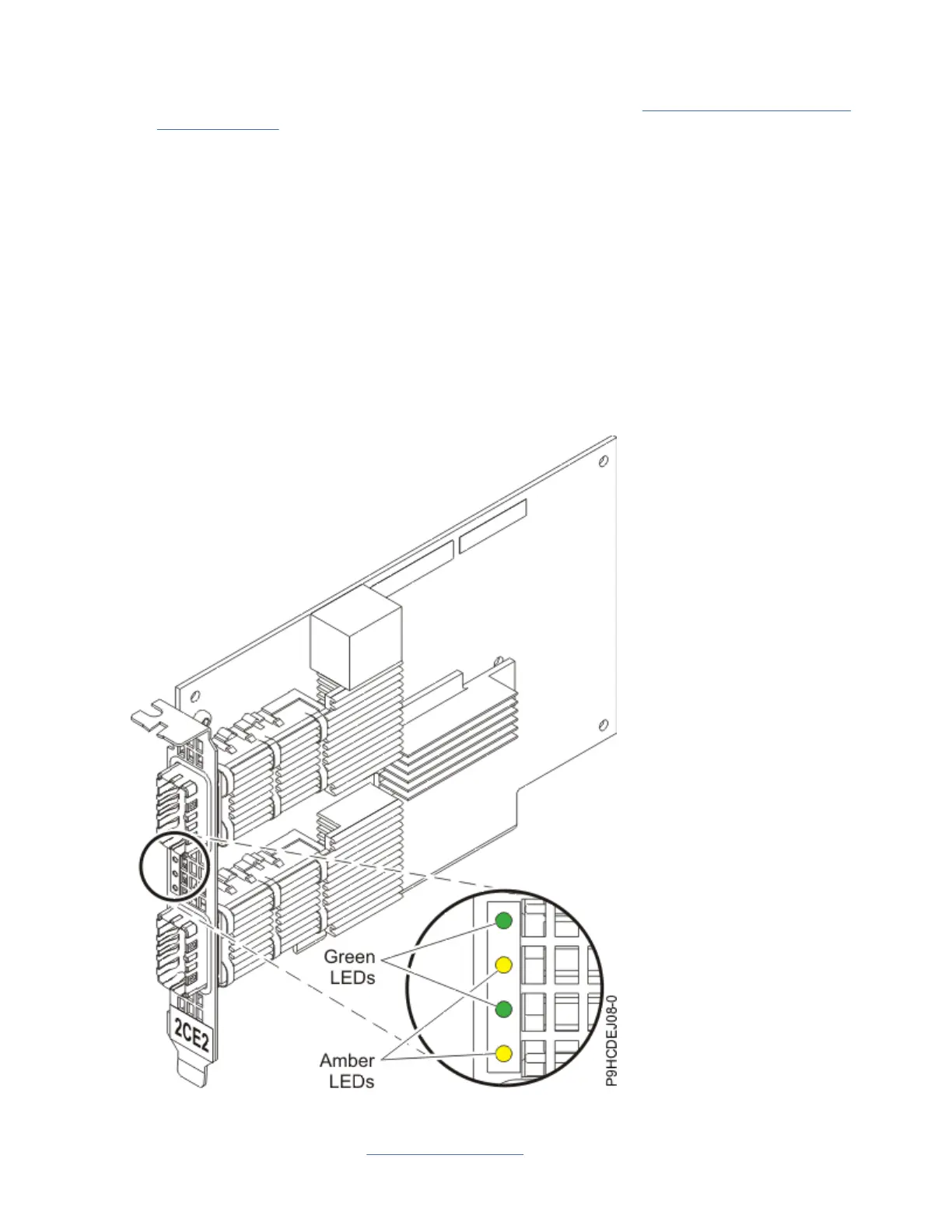

Figure 43. PCIe3 cable adapter
Note: The LEDs that are shown in Figure 43 on page 134 indicate the following states:
134
Power Systems: Managing PCIe adapters
