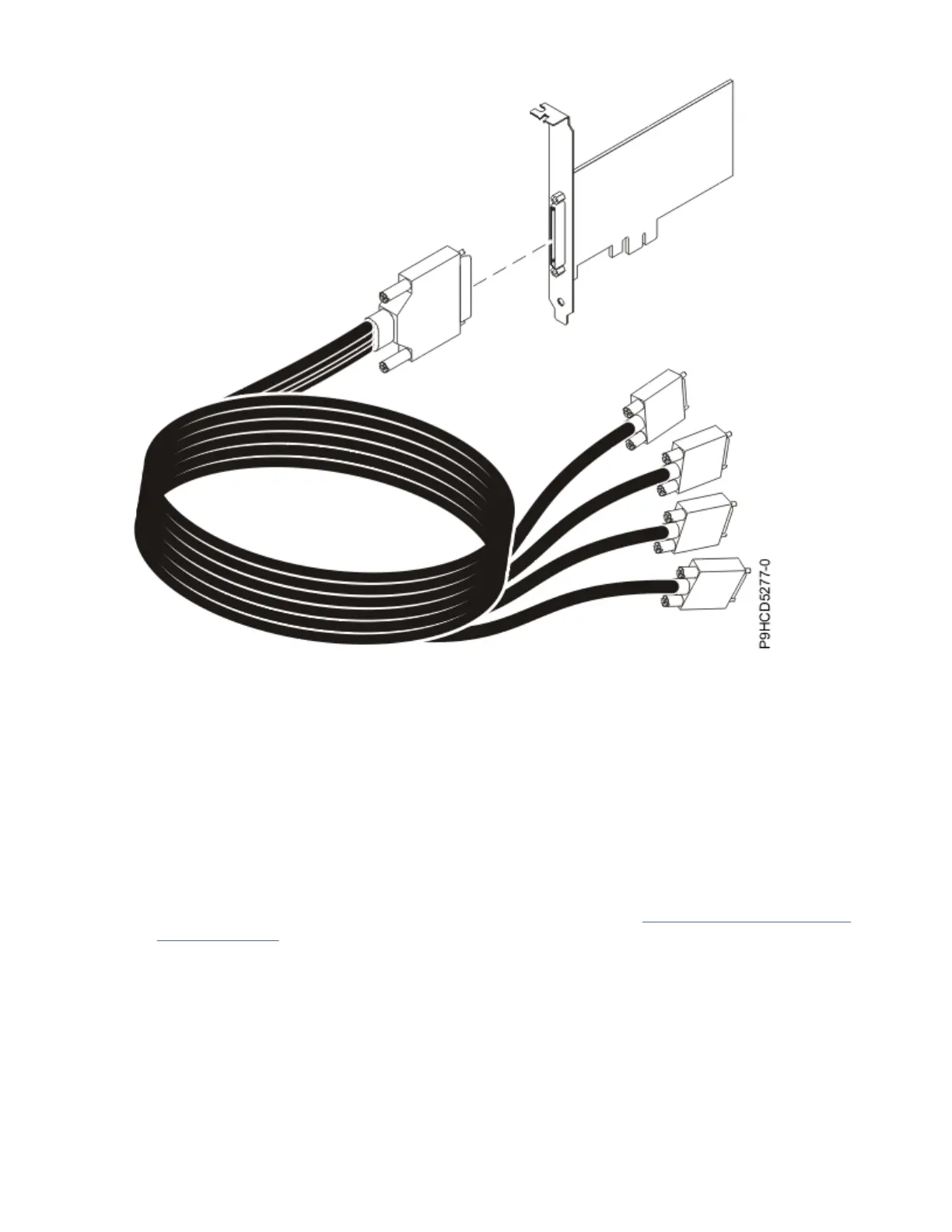

Figure 9. Cable for the PCIe 4-port Async EIA-232 1X adapter
Specications
Item
Description
FRU number
Adapter: 46K6734 (Designed to comply with RoHS requirement)
Cable: 46K6735 (Designed to comply with RoHS requirement)
I/O bus architecture
PCIe-V1.0a 1x
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Busmaster
No
Adapter size
PCIe 1x, short form-factor
Connectors
Adapter: 68-pin SCSI
Cable: 68-pin SCSI to DB 9-pin shell
66
Power Systems: Managing PCIe adapters
