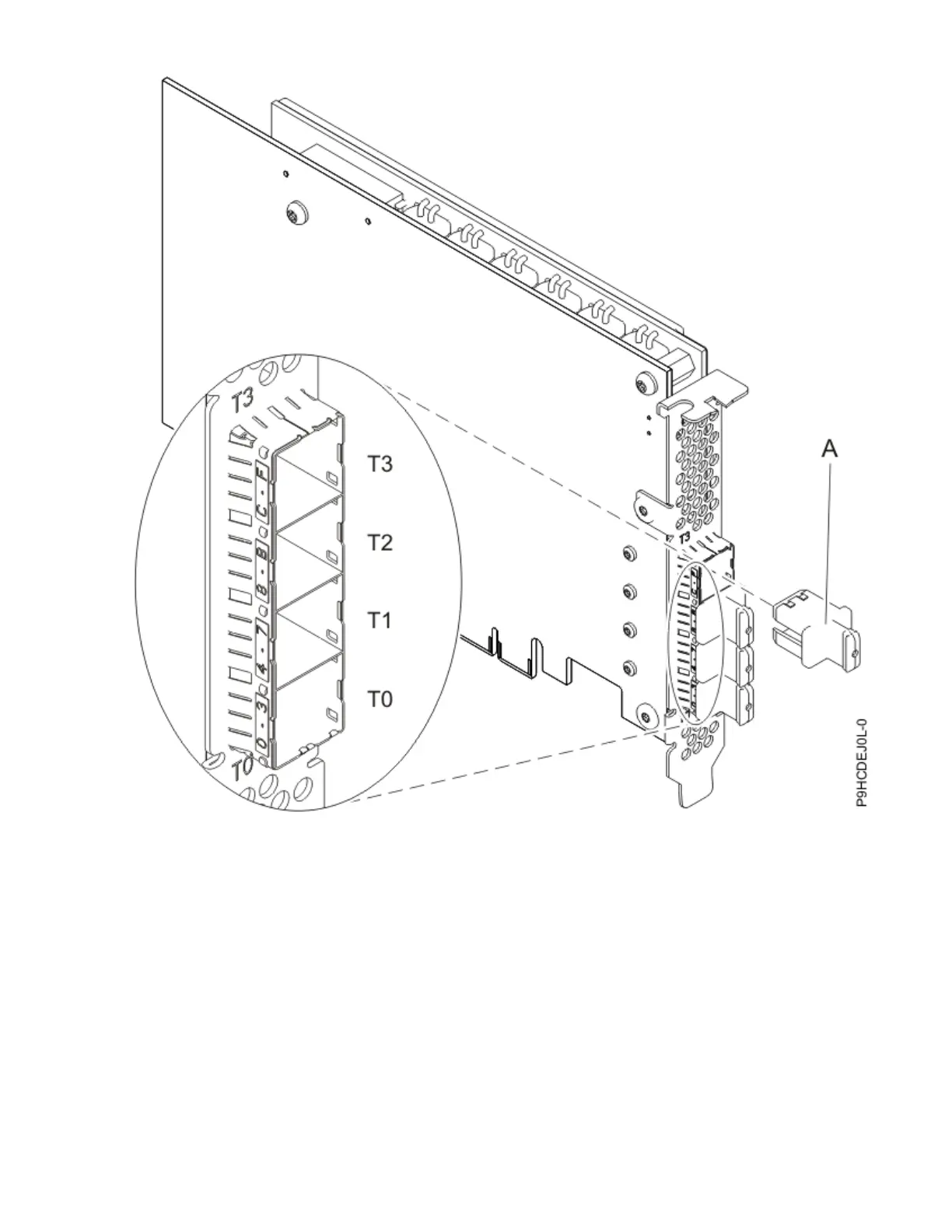

Figure 50. PCIe3 12 GB Cache RAID + SAS 6 Gb Adapter
Specications
Item
Description
Adapter FRU number
01DH742 (Designed to comply with RoHS requirement)
Connector plug part number
00FW784 (The connector plug is installed in an empty port and prevents damage to that port
whenever a cable for the adjacent port connectors is plugged-in or removed)
I/O bus architecture
PCIe 3.0 (compatible with 2.0 and 1.0)
Slot requirement
One PCIe x8 slot per adapter
Adapters are installed in pairs
Managing PCIe adapters
151
