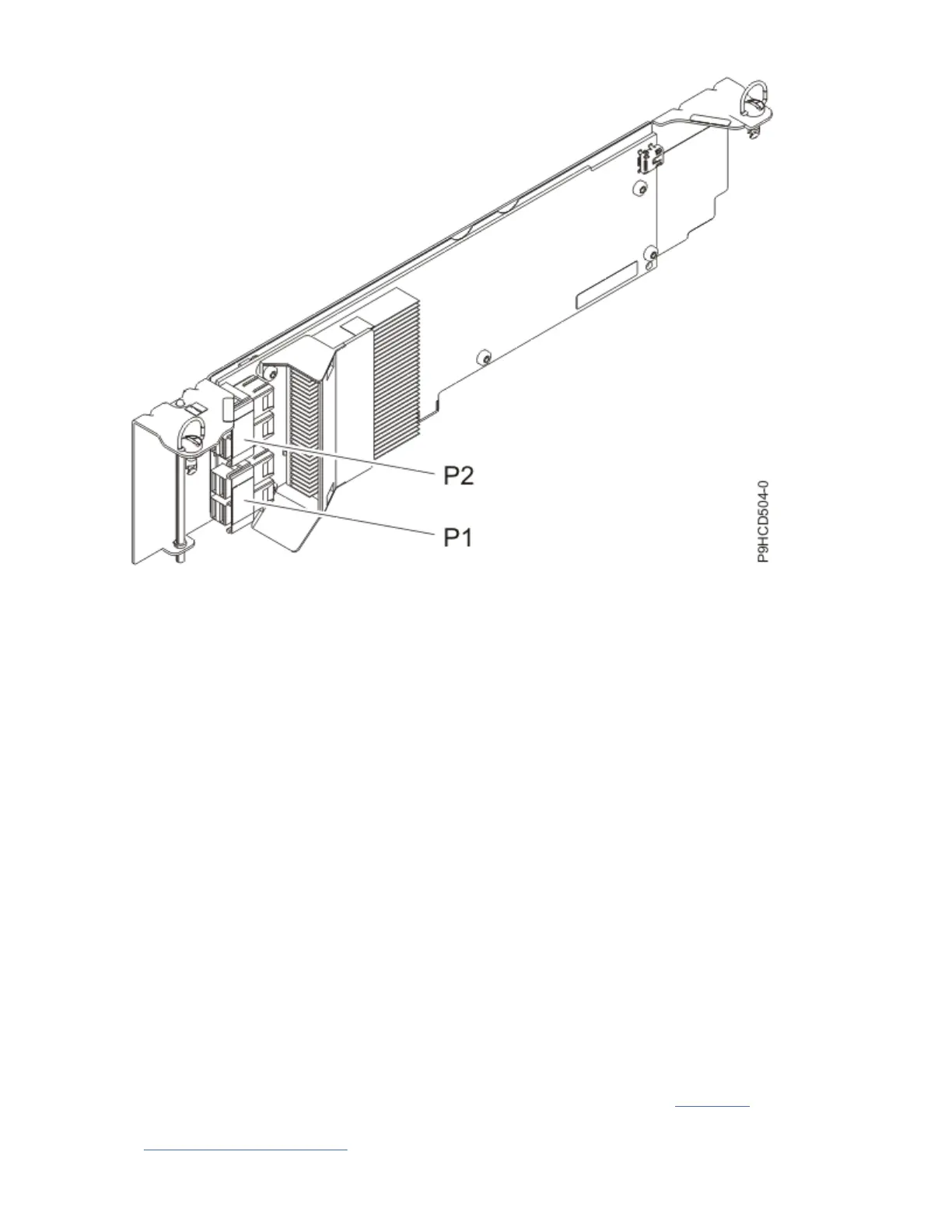

Figure 52. PCIe3 x8 SAS RAID internal adapter 6 Gb
Specications
Item
Description
Adapter FRU number
01LK399 (Designed to comply with RoHS requirement)
I/O bus architecture
PCIe3 x8
Slot requirement
Internal PCIe3 slot with x16 connector and x8 bus signaling per adapter.
Base conguration: Adapter is preinstalled in slot P1-C49.
Split storage backplane conguration: Second adapter is installed in slot P1-C50.
Cables
Two mini-SAS HD cables that are supplied with the adapter.
Voltage
12 V
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. For information about operating system and partition requirements, see one of the following
topics:
• The latest version of enabling libraries and utilities can be downloaded from Fix Central (http://
www.ibm.com/support/xcentral/).
• Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home).
Managing PCIe adapters
155
