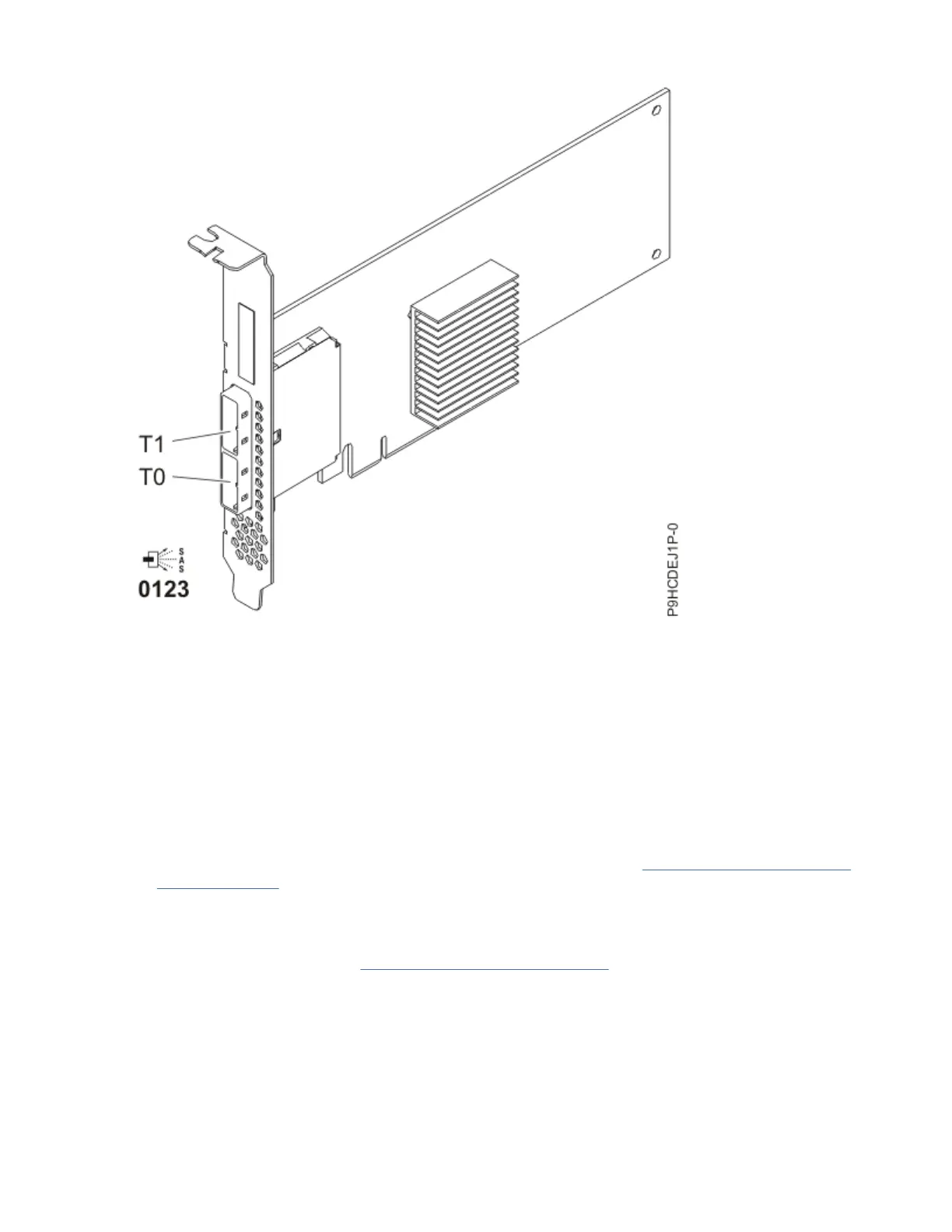

Figure 56. PCIe1 SAS Tape/DVD Dual-port 3 Gb x8 Adapter
Specications
Item
Description
Adapter FRU number
44V4852 (Designed to comply with RoHS requirement)
I/O bus architecture
PCIe1 x8
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Cables
SAS device attachment requires specic cables that are provided with the subsystem or device
features being attached. See Serial attached SCSI cable planning.
Voltage
3.3 V
Form factor
Short, low-prole (FC EJ1N)
Short, with full-height tailstock (FC EJ1P)
Attributes
• Two external mini-SAS 4x connectors provide attachment of SAS and Serial Advanced Technology
Attachment (SATA) device enclosures
Managing PCIe adapters
163
