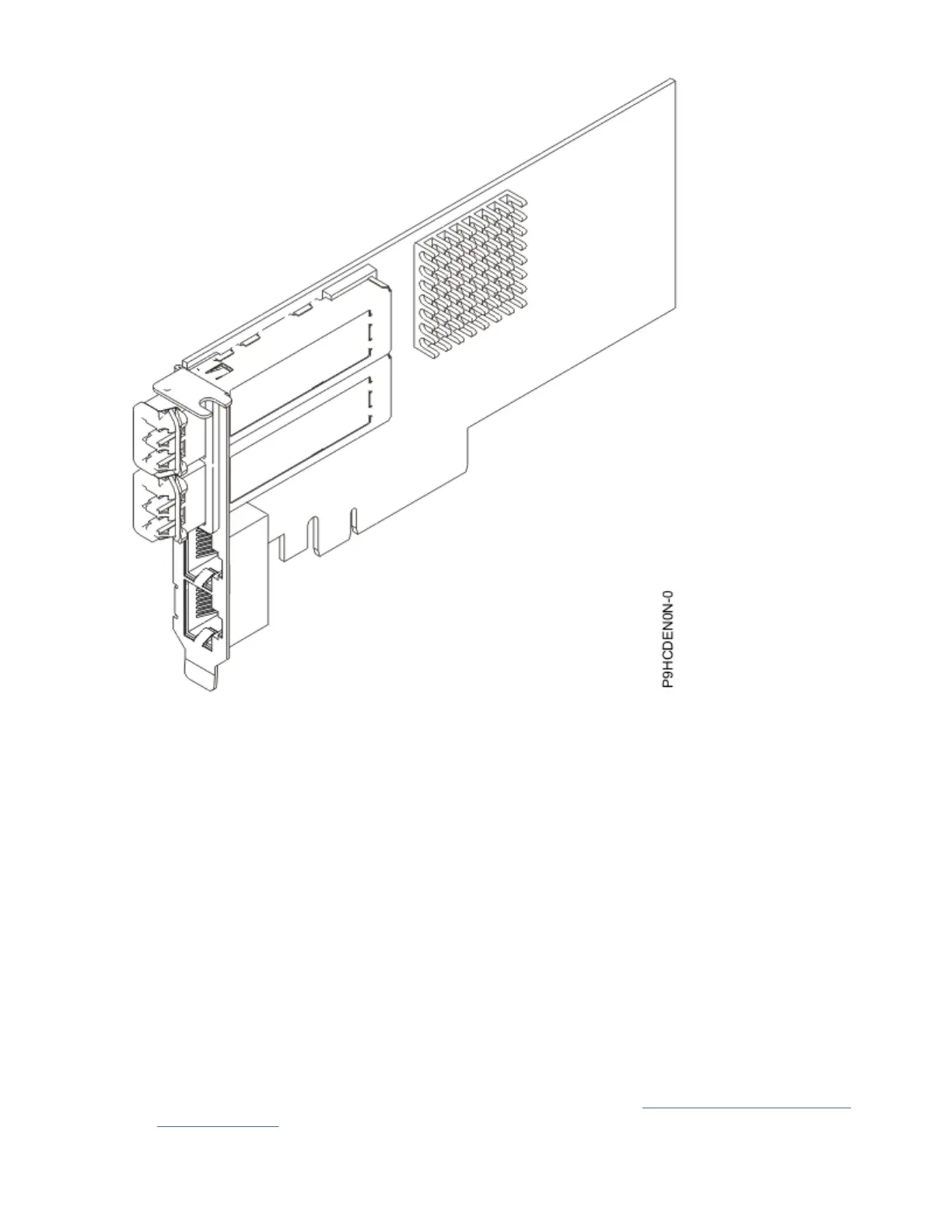

Figure 71. PCIe3 LP 4-port (10 Gb FCoE and 1GbE) LR and RJ45 adapter (FC EN0N)
Specications
Item
Description
Adapter FRU number
FC EN0M: 00E8144 (Designed to comply with RoHS requirement)
FC EN0N: 00E8143 (Designed to comply with RoHS requirement)
Low-prole tailstock part number: 00E8163
Wrap plug FRU number
12R9314 (for Fibre LC connector)
10N7405
Note: These wrap plugs are not included with the card. 12R9314 (FC ECW0) is the only wrap plug that
can be purchased from IBM.
I/O bus architecture
PCIe3 x8
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Managing PCIe adapters
193
