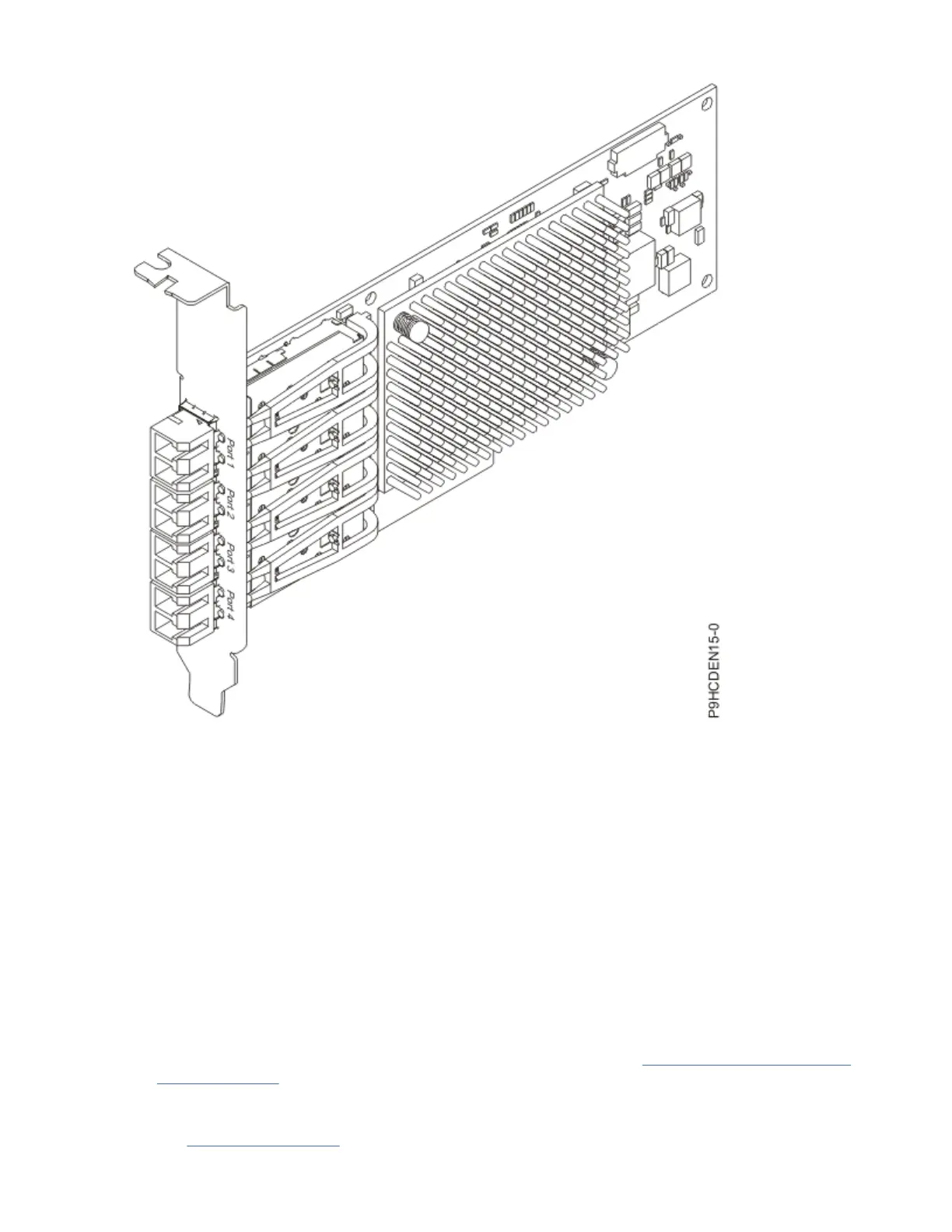

Figure 78. FPCIe3 4-port 10 GbE SR Adapter
Specications
Item
Description
Adapter FRU number
00ND466 (Designed to comply with RoHS requirement)
Full-height tailstock part number: 00ND462
Wrap plug FRU number
12R9314 (SFP+ SR wrap plug)
Note: The wrap plug is not included with the card, but can be purchased from IBM.
I/O bus architecture
PCIe3 x8
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Cables
See “Cables” on page 209 for details.
208
Power Systems: Managing PCIe adapters
