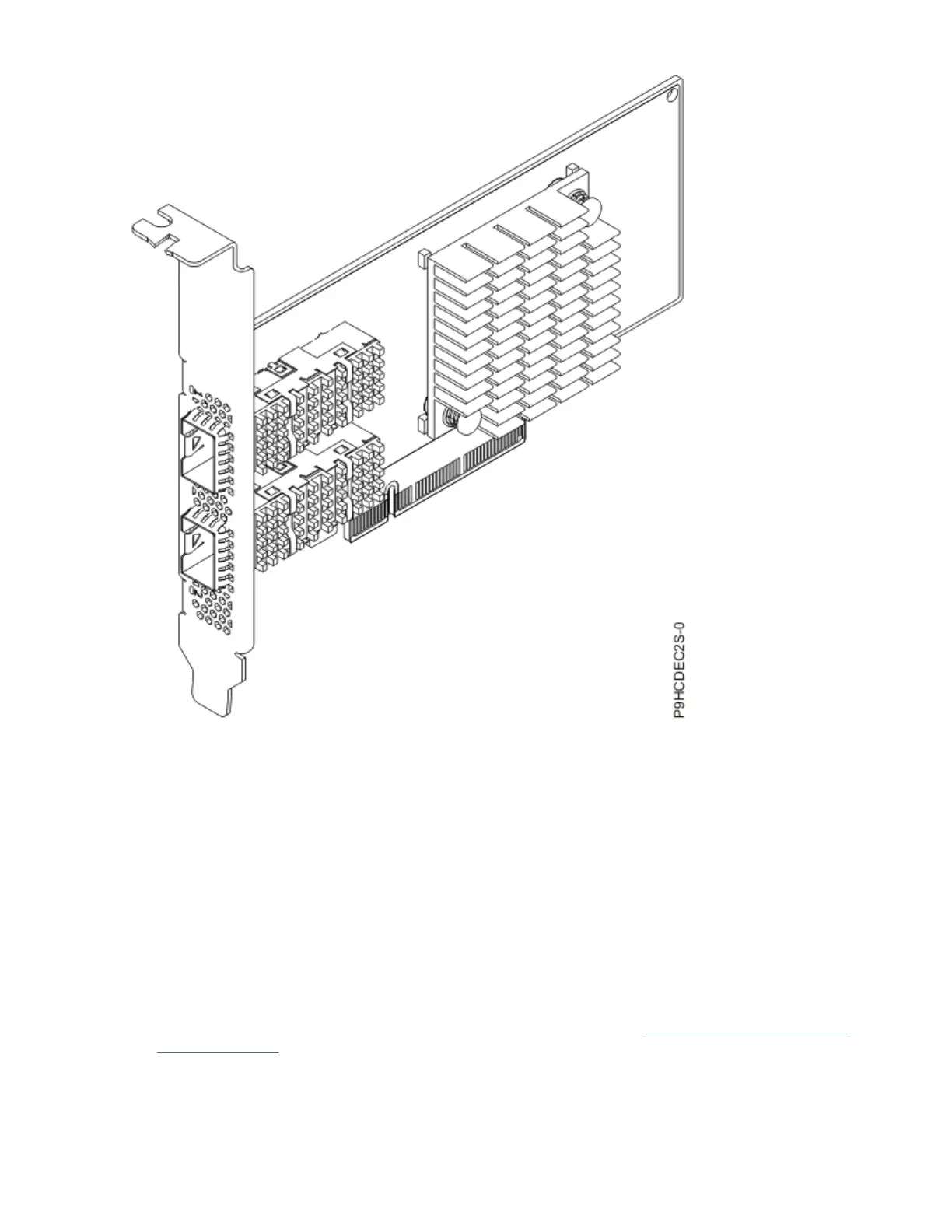

Figure 15. PCIe3 2-port 10 Gb NIC & RoCE SR/Cu Adapter (FC EC2S)
Specications
Item
Description
Adapter FRU number
01FT759 (Designed to comply with RoHS requirement)
Wrap Plug FRU number
74Y7010 (Twinax wrap plug)
12R9314 (Optical wrap plug)
I/O bus architecture
PCIe3 x8
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Voltage
3.3 V, 12 V
Managing PCIe adapters
79
