2035—Adapter Cards
Note: Before removing an adapter card, note the location of the adapter
card and cables. When removing an adapter card, install the replacement
card in the same slot as the one you removed.
Remove any cables (note location of cables).
Remove the adapter card mounting screw (1).
Pull out the adapter card (2).
(Front)
(Top)
(Back)
Riser
Card
Riser Card
Screw
Adapter
Card
2
1

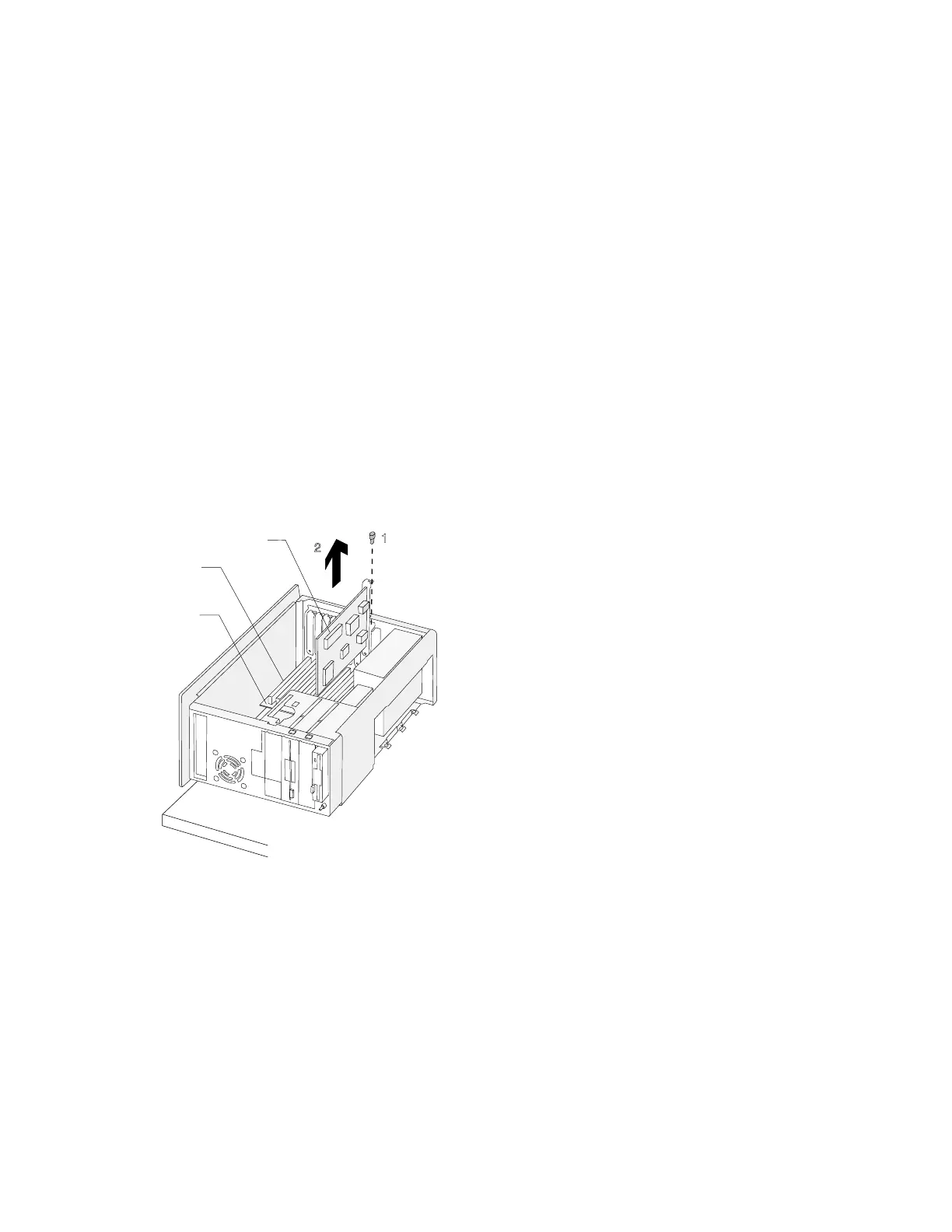

Figure 4-27. Adapter Cards
Note: When reinstalling an Mwave or modem adapter card, ensure the
Wake Up on Ring cable is connected from the 2-pin keyed connector on the
modem to Wake Up on Ring connector on the system board. See “System
Board Layout—Type A-1” on page 5-2 and “System Board Layout—Type
A-2” on page 5-5 for locations.
4-26
