Zip Drive
The factory installed Zip 100 ATA/IDE drive is connected to the system
board secondary drive connector. The Zip drive is a direct access storage
device that features removable media having a formatted capacity of 100
MB.

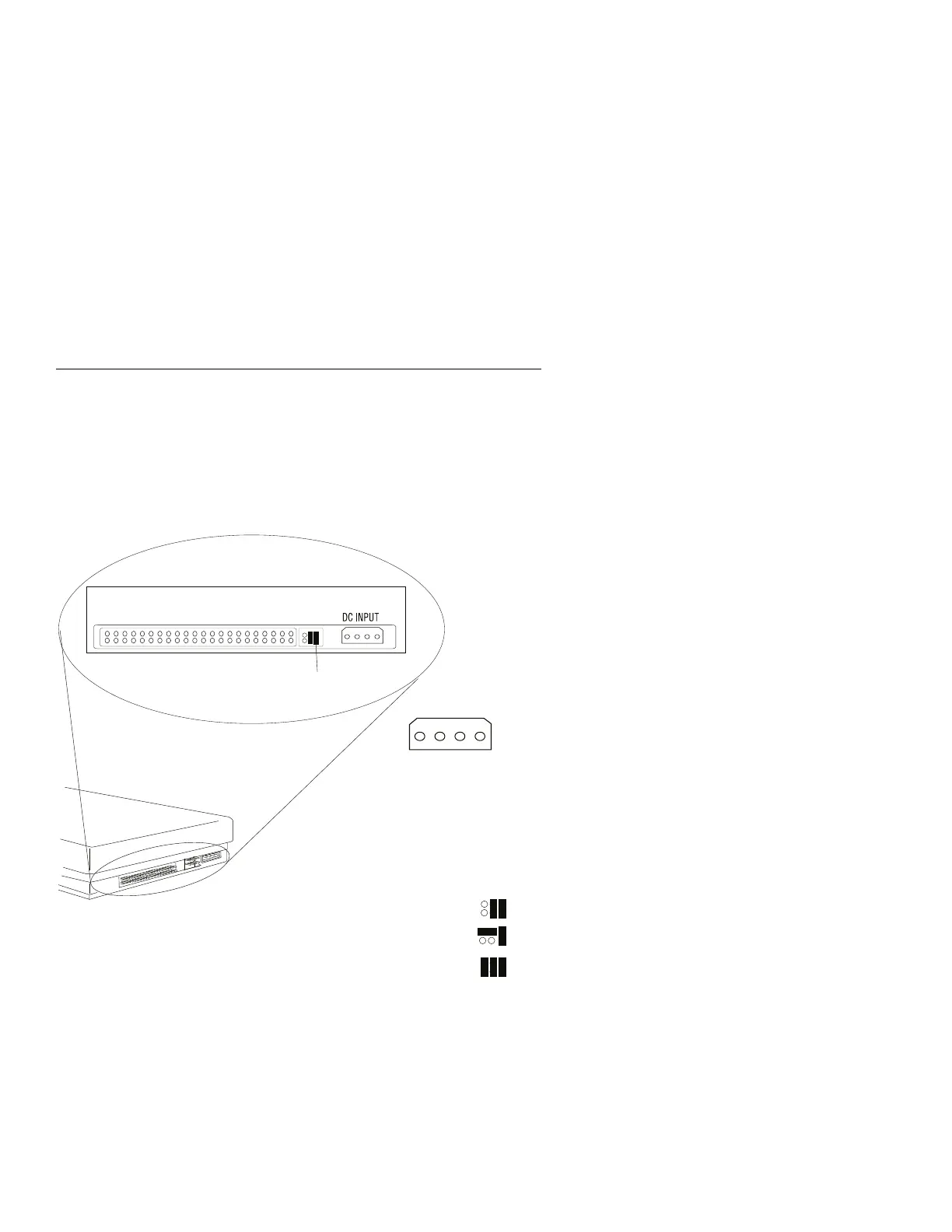

The Zip Drive jumper is set as the master drive, as shown in Figure 5-23.
MasterDrive
AutomaticSelection
Slave
Master
JumperSettings
JumperSettings
ZipDrive
RearView
Pin1+5V
Pin2+5VReturn
Pin3+5VReturn
Pin4NoConnection
DCInput
4321
ATA Interface
Figure 5-23. Zip Drive Jumper Settings
5-24
