2053—Cache Memory—Type A-1
Attention
Memory cards are sensitive to static discharge. See “Handling
ESD-Sensitive Parts” on page 4-38.
Adapter cards (2035) if applicable
Riser card (2045) if applicable
Notes:
1. See “System Board Layout—Type A-1” on page 5-2 for cache memory
jumper settings.
2. Run the Setup Utility after adding or removing memory.
cache memory
module socket
cache
memory module
notch
cache memory
module socket
To insert cache module:
Position bottom notch over
socket divider as shown.

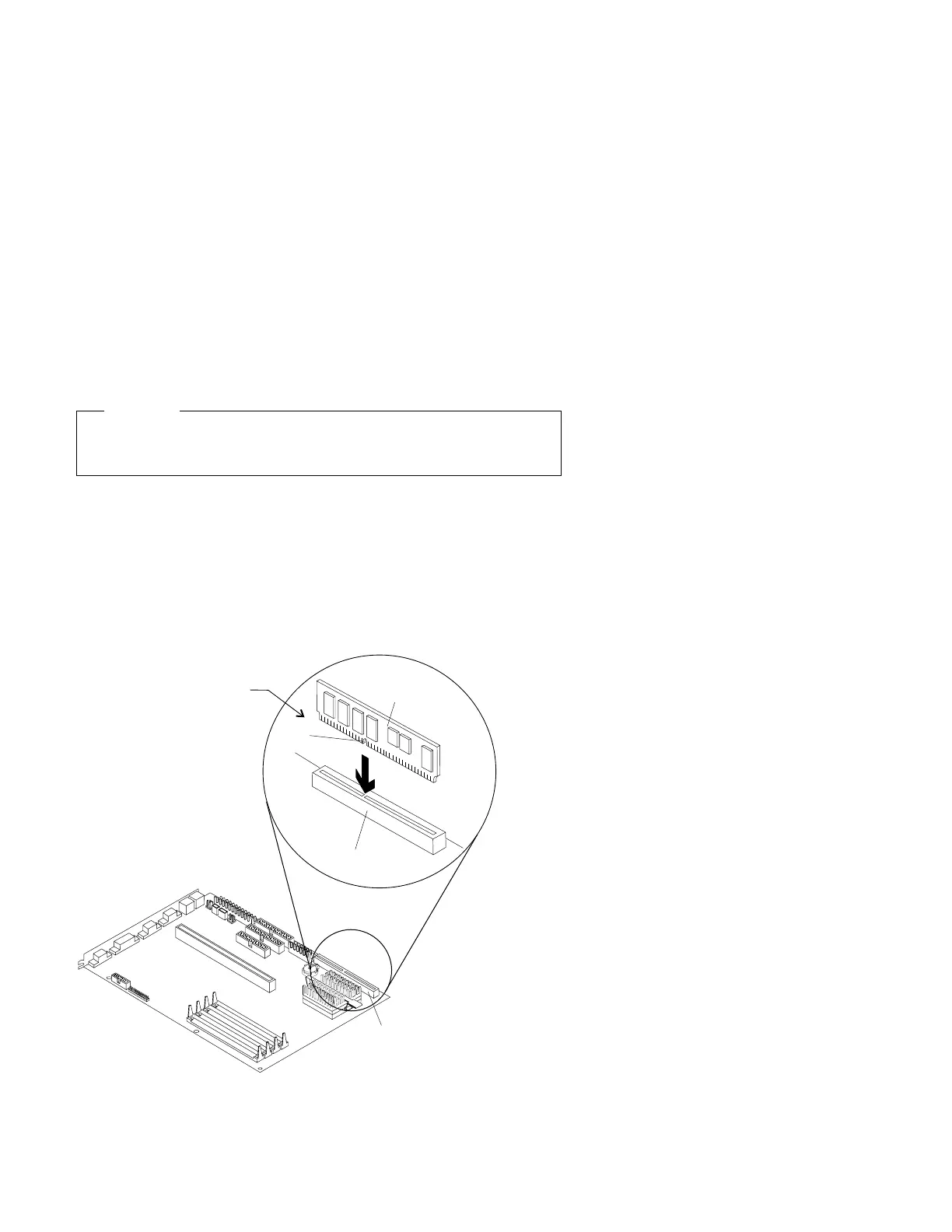

Figure 4-32. Cache Memory Modules - Type A-1
Repair Information 4-31
