Page #195 background imageLoading...
Page #195 background image
5 V dc 12 V dc
4 1

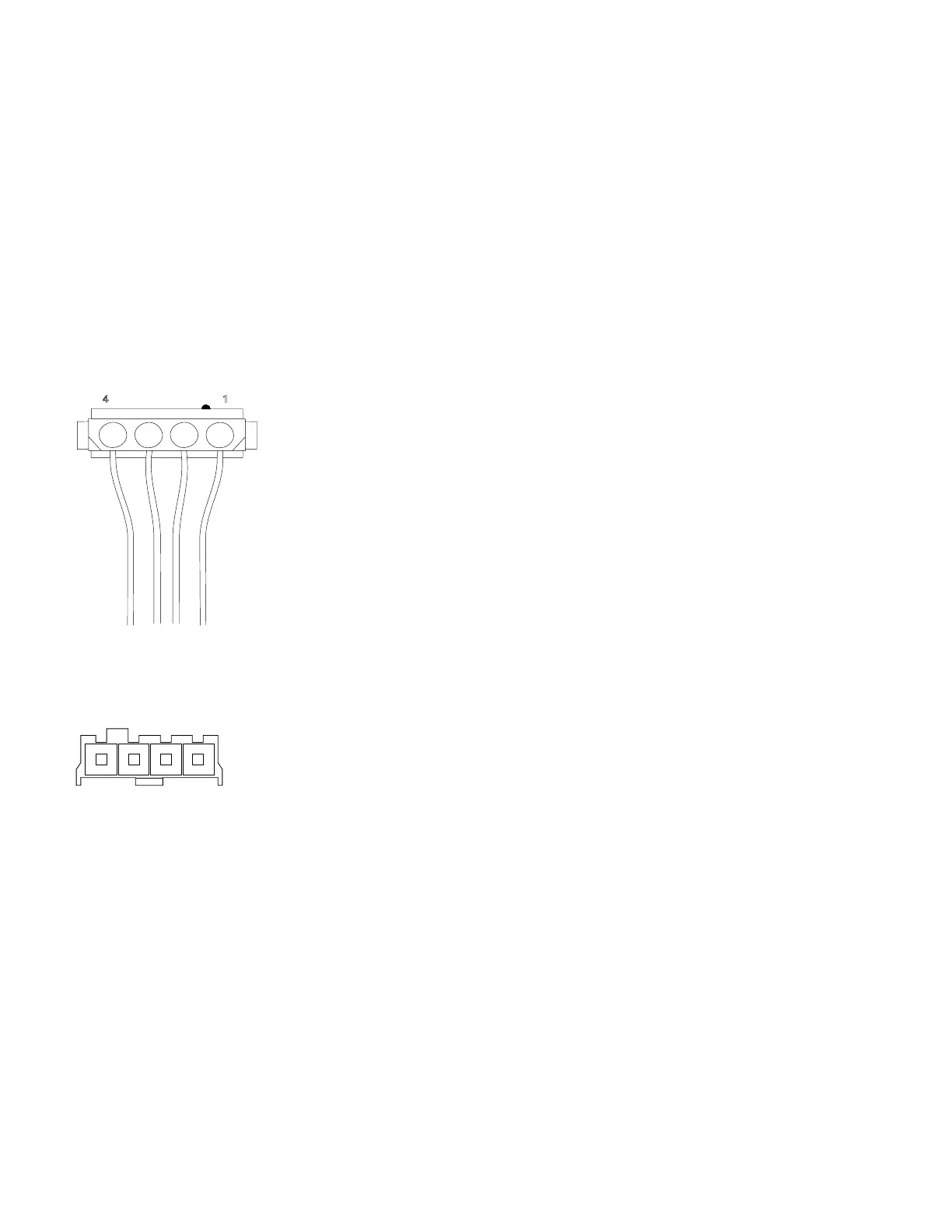

Figure 5-9. Hard Drive or CD-ROM Power Cable Connector
14
5 V dc 12 V dc
Figure 5-10. 3.5-In. Diskette Drive Power Cable Connector
Parts/Test Point Locations 5-9
