(continued)
– PWR GOOD
– +3.75 to 6.25 V dc
– +9 to 15 V dc
– -9 to -15 V dc
GND
– -3.75 to -6.25 V dc
– +3.75 to 6.25 V dc
Pin
1
Pin
12

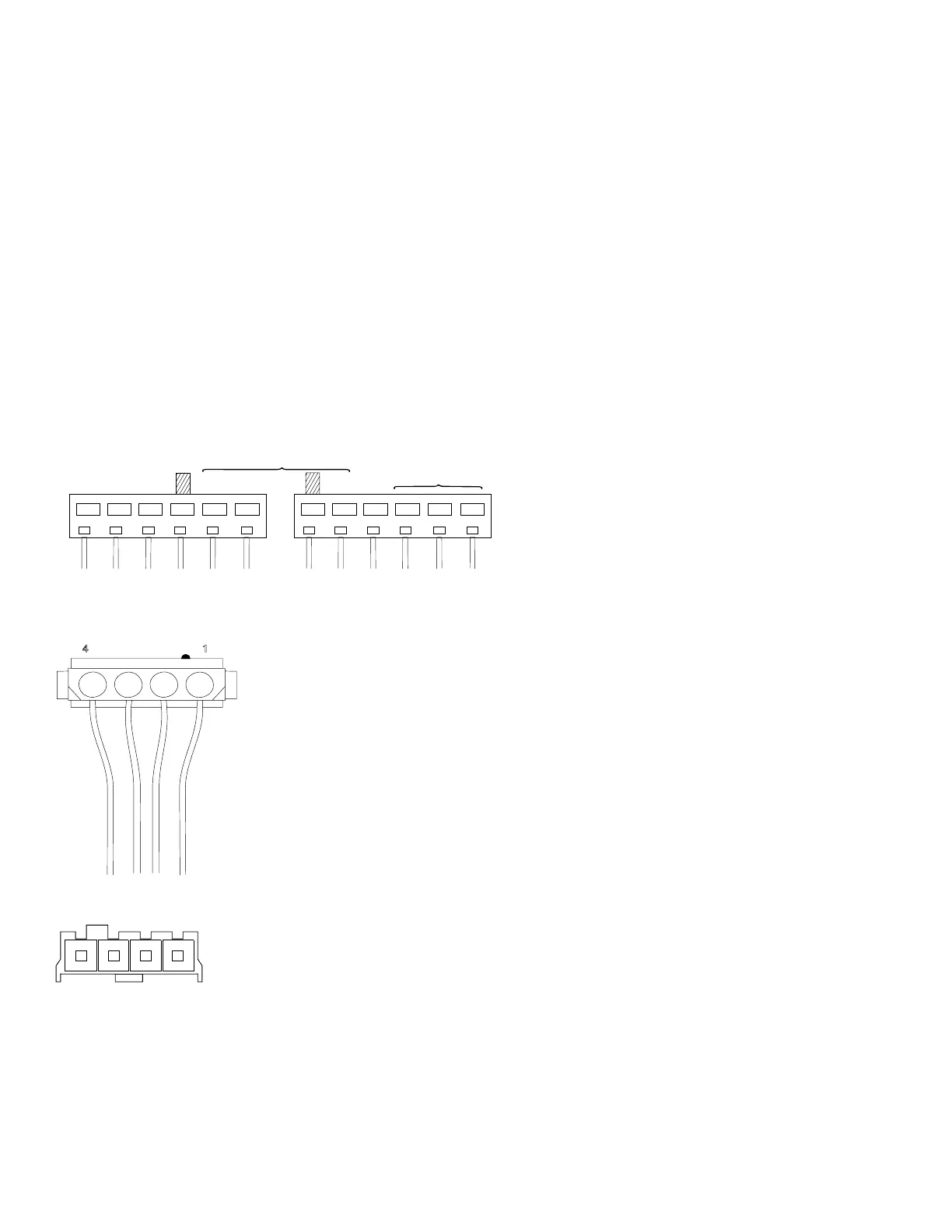

Figure 2-1. System Board Power Supply Connectors (Bottom View)
5 V dc 12 V dc
4 1
Figure 2-2. Hard Drive or CD-ROM End of Power Cable
14
5 V dc 12 V dc
Figure 2-3. 3.5-In. Diskette Drive End of Power Cable
(Step 006 continues)
