1030—Hard Disk Drive
 Left drive support bracket (1010)
 Right drive support bracket (1015)
Note: Refer to Appendix, “Model/Monitor Configurations and FRU Part
Numbers” on page A-1 and install the correct software.
Hard Disk
Connectors
Hard Disk
Right Bracket
(Front Upside Down View)

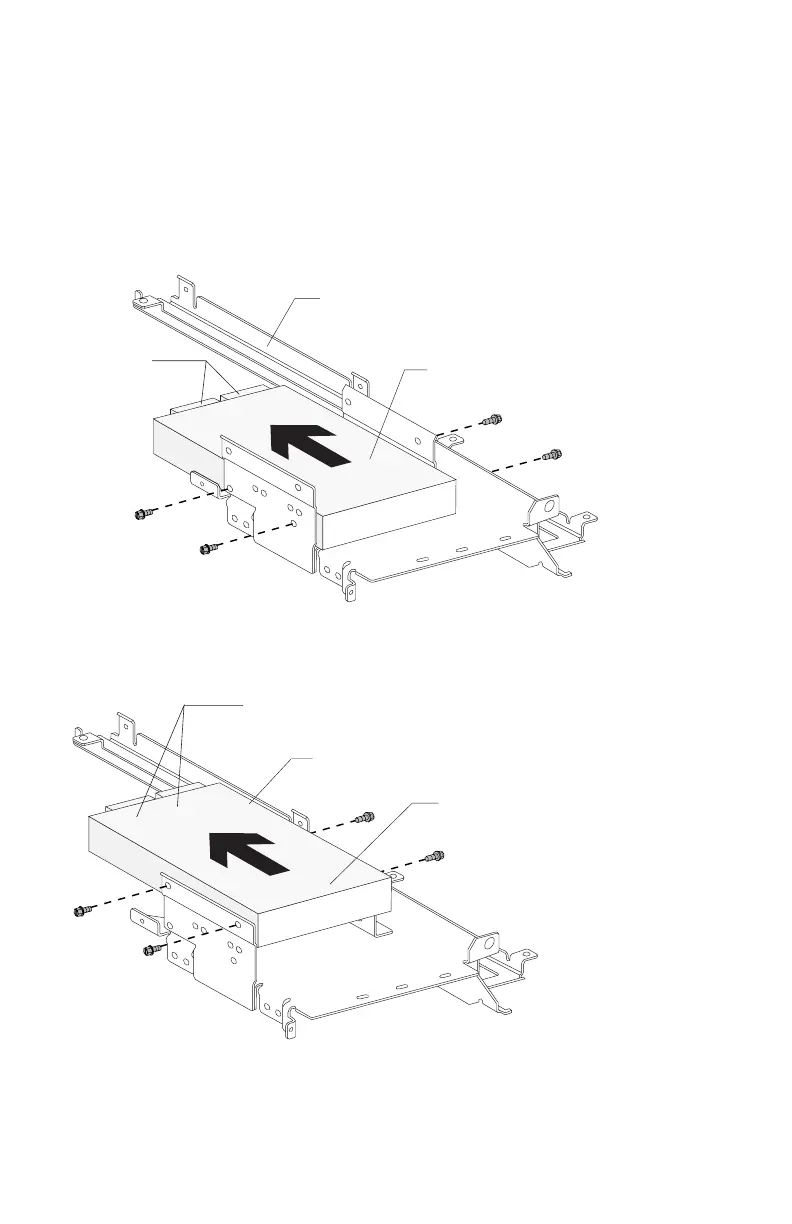

Figure 4-7. Hard Disk Drive—Bay 3
Hard Disk
Connectors
Hard Disk
Right Bracket
(Front Upside Down View)
Figure 4-8. Hard Disk Drive—Bay 4
