2045—Riser Card
 Adapter cards (2035) if applicable.
 Riser card power connector.
 Remove the riser card mounting screw (1).
 Remove the riser card (2).
Some riser cards may contain a VESA local bus extension. See “System
Board Layout—Type I-2” on page 5-5 for socket locations on the system
board.
(Front)
(Back)
Riser Card
Connector
Riser
Card
2
1
System Board

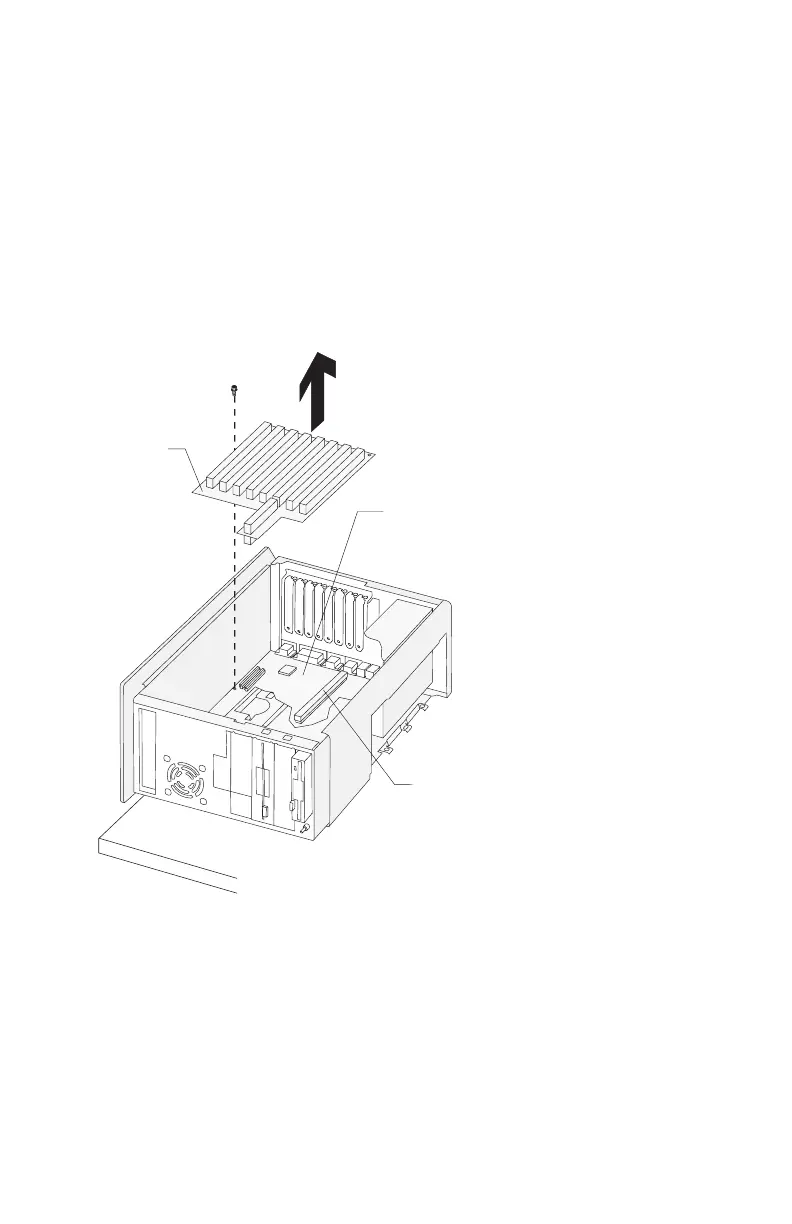

Figure 4-32. Riser Card
Repair Information 4-33
