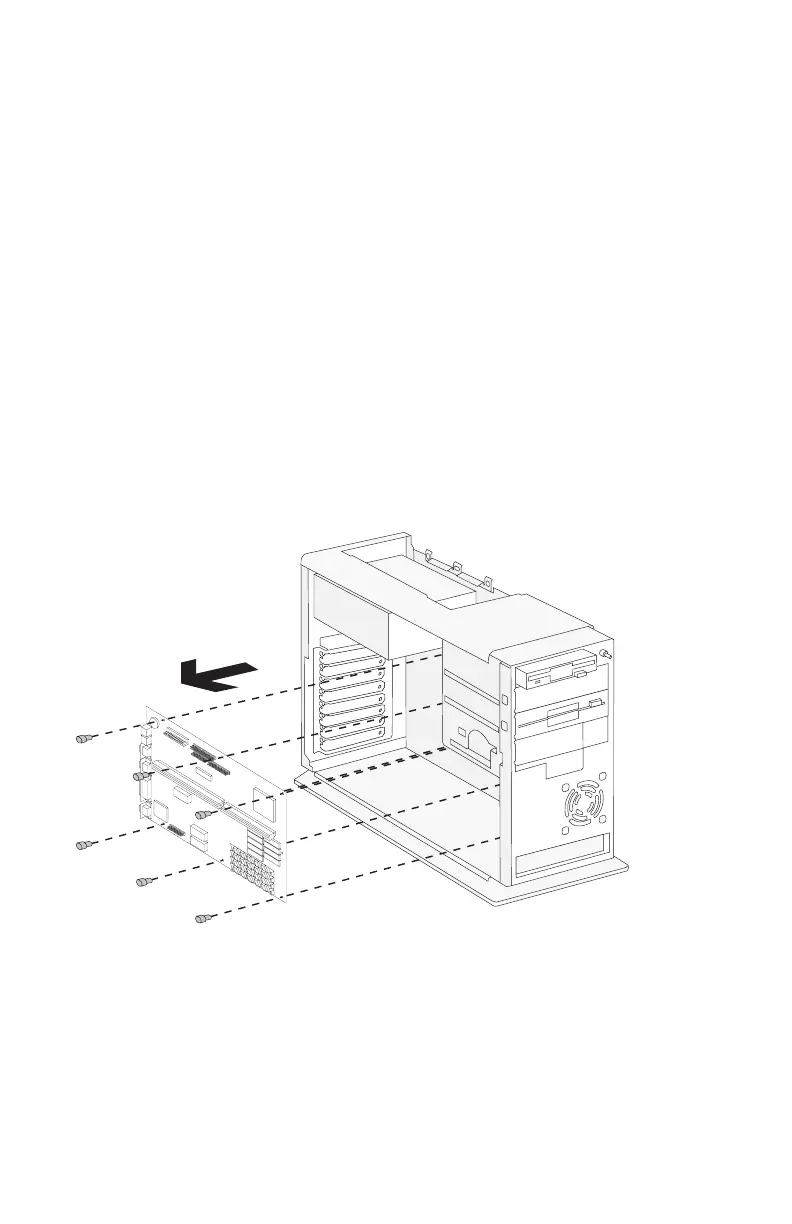

2090—System Board
Adapter cards (2035) if applicable.
Riser card (2045).
Disconnect any cables necessary for removal.
Memory (SIMM) (2050) if applicable.
Video memory (2056) if applicable.
Cache memory (2055) if applicable.
Math coprocessor/upgrade processor (2060) if applicable.
Notes:
1. Be certain to reinstall the processor, SIMMs, optional math
coprocessor/upgrade processor, video memory, and cache memory in
the new system board if applicable.
2. When reinstalling a new system board, push the board to the rear and
place it over the front locating pin prior to installing the screws.
3. Run the Setup Utility after changing the system board.
4-40
