1055—Cache Memory—Type I-1
Warning: Memory cards are sensitive to static discharge. See “Handling
ESD-Sensitive Parts” on page 4-41.
 Adapter cards (1035) if applicable
 Riser card (1045) if applicable
Note: Run the Setup Utility after adding or removing memory.
Cache Memory
Module Sockets
SIMM Sockets
Tag Address
Module Socket
To insert cache module:
Position notched
end as shown.
Notch
Cache Memory
Module Socket
Cache
Memory Module

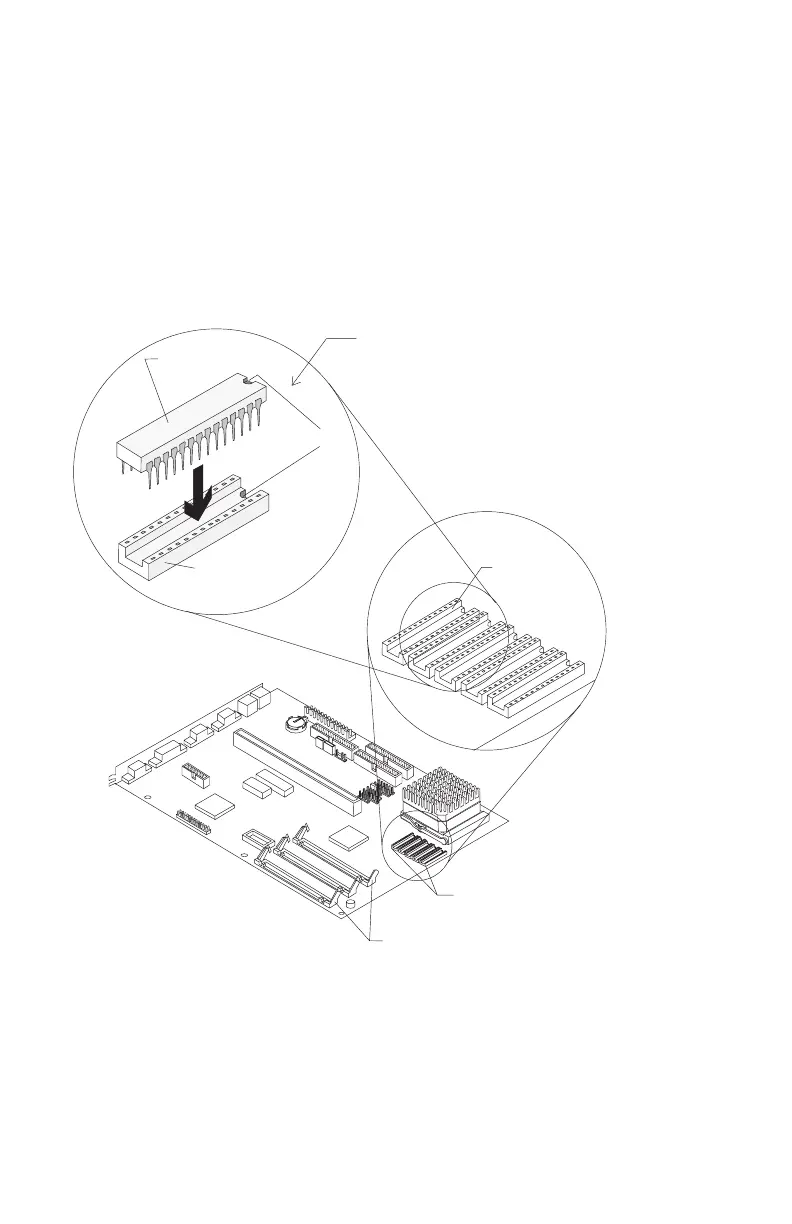

Figure 4-13. Cache Memory Modules - Type I -1
