2055—Cache Memory—Type I-2
Warning: Memory cards are sensitive to static discharge. See “Handling
ESD-Sensitive Parts” on page 4-41.
 Adapter cards (2035) if applicable
 Riser card (2045) if applicable
Notes:
1. See “System Board Layout—Type I-2” on page 5-5 for cache memory
jumper settings.
2. Run the Setup Utility after adding or removing memory.
cache memory
module sockets
cache
memory module
notch
cache memory
module socket
memory module sockets

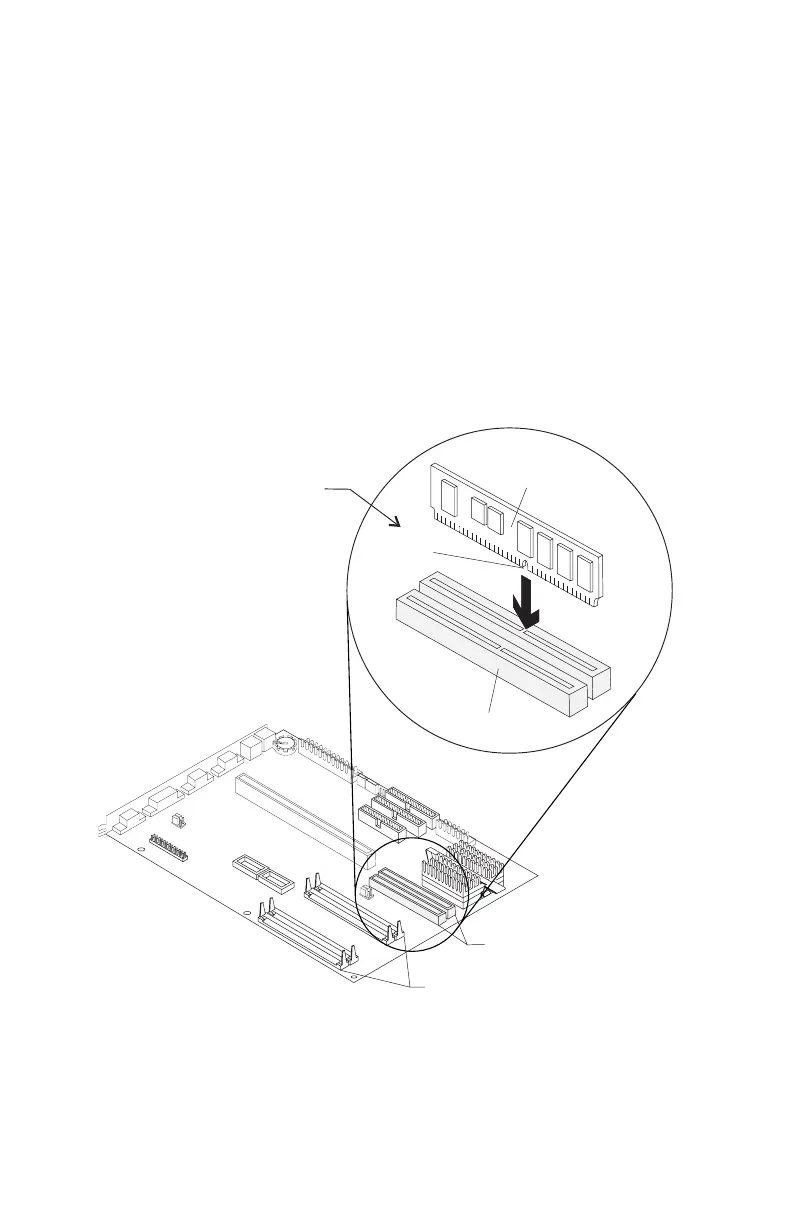

To insert cache module:
Position bottom notch over
socket divider as shown.
Figure 4-34. Cache Memory
