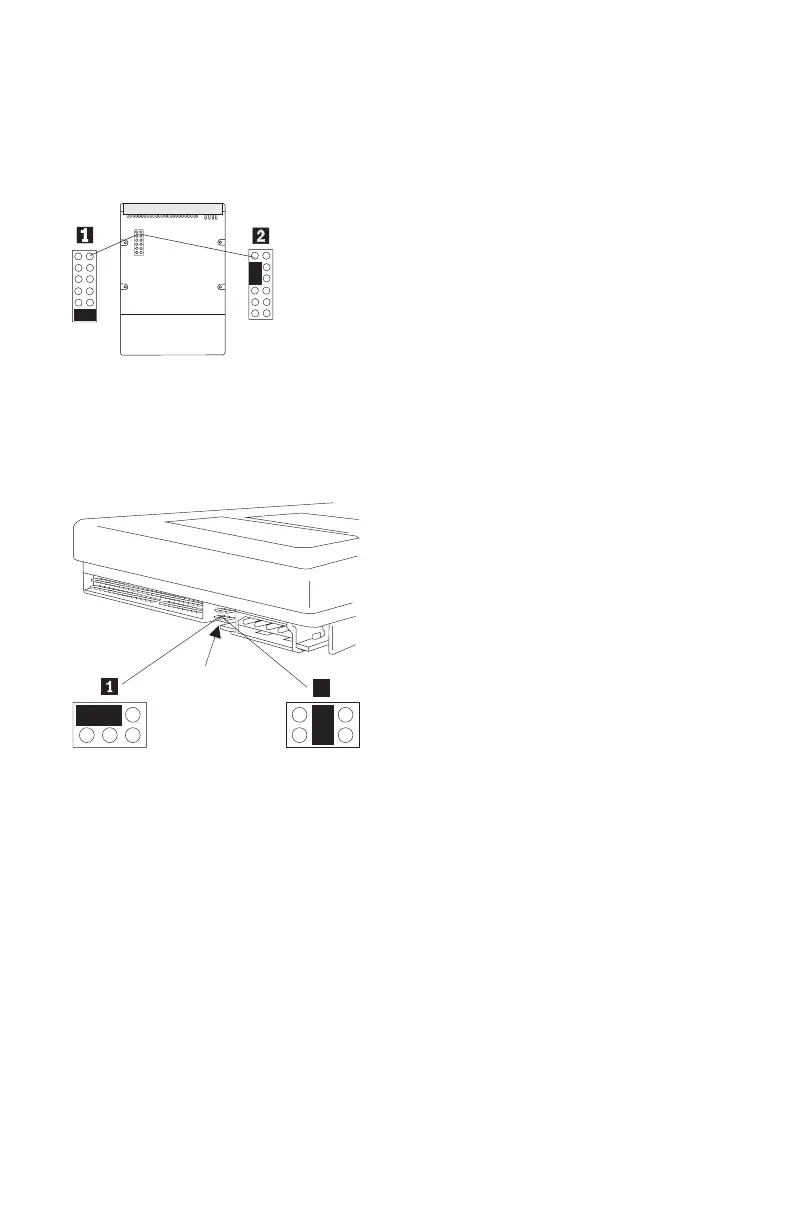

For jumper settings, match your hard disk drive to one of the following
figures. .1/ = Master Drive .2/ = Slave Drive.
Figure 5-12. 538MB, 1.6GB, 2.0GB Drive
2
Jumper
Block
Figure 5-13. 635MB, 850MB Drive
Continued on next page.
5-12
