Chapter 2. Setting up your 5065 Expansion Unit
This chapter explains how to set up your 5065 Expansion Unit. This chapter has
two sets of directions:
v “Connecting your 5065 directly to your AS/400e system unit”.
v “Connecting your 5065 Expansion Unit in a loop” on page 12.
Follow the direction that best fits your configuration.
Connecting your 5065 directly to your AS/400e system unit
Connecting your 5065 directly to your system unit consists of two major steps:
1. Connecting cables to your 5065 Expansion unit.
2. Connecting cables to your system unit.
Connecting the cables to your 5065 Expansion Unit
Use the following steps to install the SPCN cables and optical cables to the 5065
Expansion Unit.
__ 1. Find the sheet of labels for the optical cables in the information shipped
with your expansion unit. (Make your own, if labels are not in the
information that is shipped with your expansion unit.)
__ 2. Find the optical cables and the SPCN cable in the information that is
shipped with your expansion unit.
__ 3. Attach a label to each end of the optical cables.
__ 4. Label one optical cable 0. Label the other optical cable 1.
__ 5. Use the latch that is shown at A to open the back cover on your
expansion unit.
__ 6. If needed, use latch shown at B to remove the back cover.

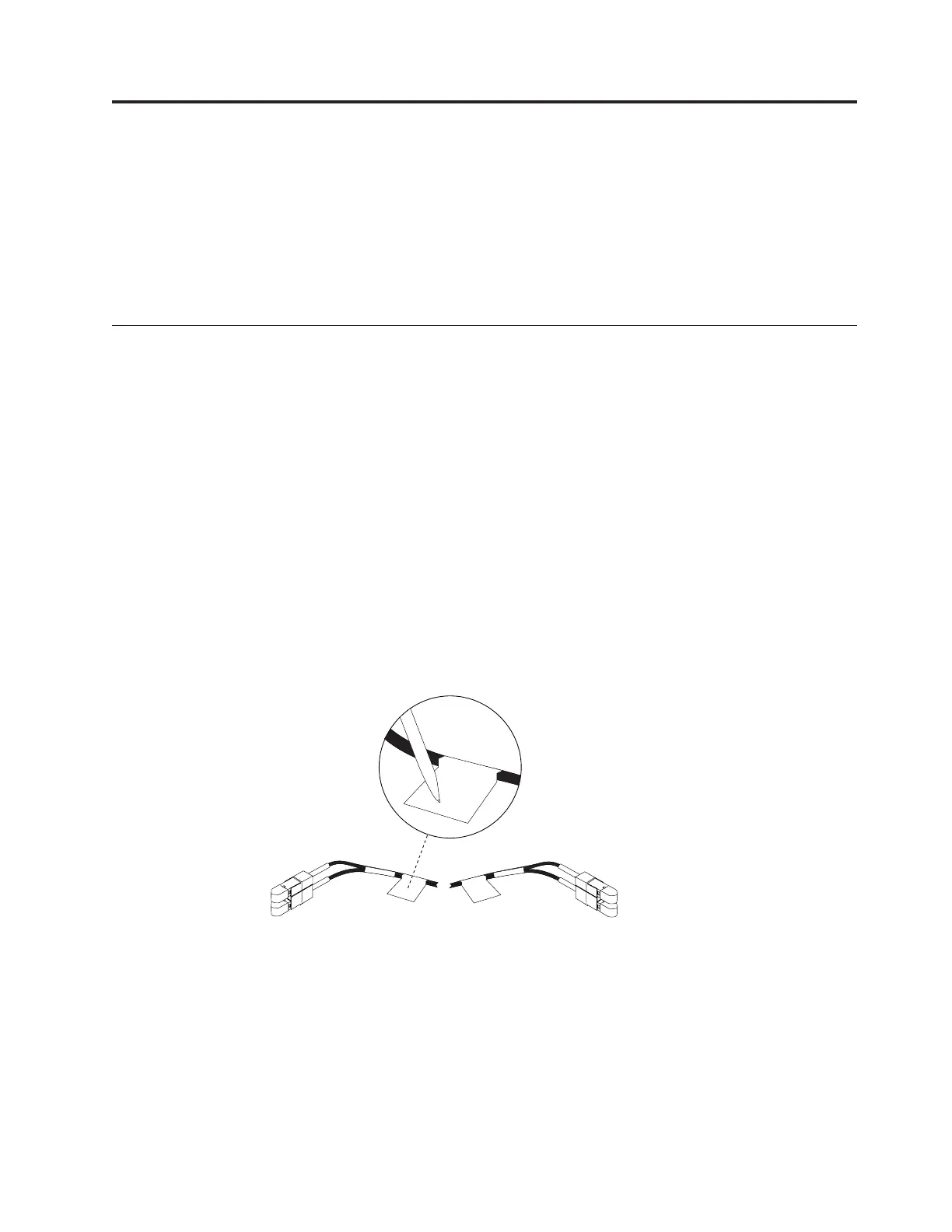

Figure 6. Labeling the optical cables
© Copyright IBM Corp. 1999, 2000 7
