Replacing the covers on your AS/400e system 620 or server S20
__ 1. Install the access cover and secure with slotted-head screws.
__ 2. Install the side cover for the system unit as follows:
a. Install the side cover. The cover may fall if you do not hold on to it.
b. Secure with the two screws.
c. Slide the cover latches down to close the louvers.
__ 3. Install the top cover by sliding it towards the back of the system.
__ 4. Secure the screw and pivot the top cover lock.
__ 5. While gripping its upper corners, install the back cover.
__ 6. Install the AS/400 front cover by doing the following:
a. Install the cover

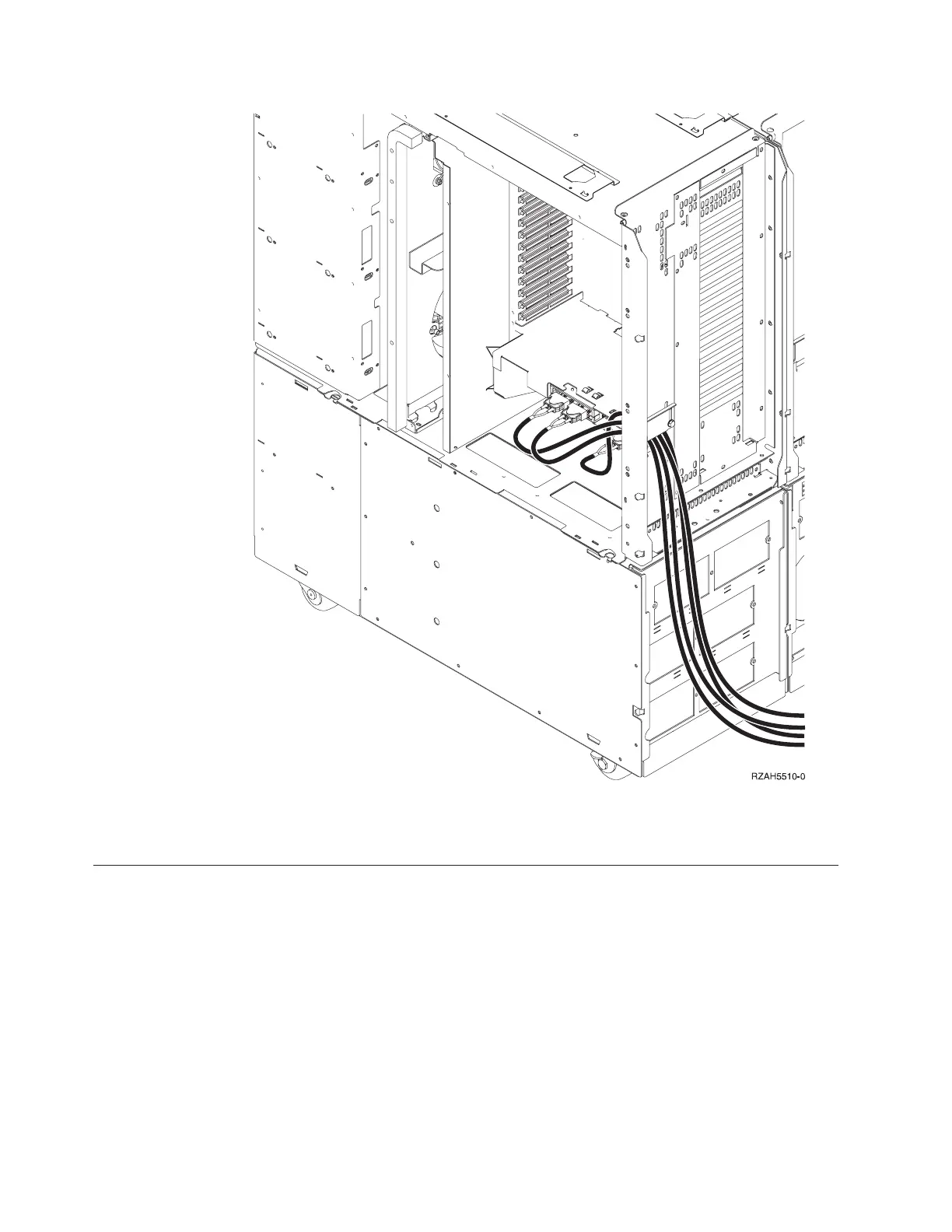

Figure 32. Installing optical cables in a system 620 or server S20
32 Setting Up Your 5065 or 5066 Expansion Unit V4R5
