__ 1. Find the sheet of labels for the optical cables in the information shipped
with your expansion unit. Make your own, if labels are not in the
information that is shipped with your expansion unit.
__ 2. Find the optical and the SPCN cables in the information that is shipped
with your expansion unit.
__ 3. Attach a label to each end of the optical cable.
__ 4. Label the optical cable 1.
__ 5. Remove the back cover from unit X by gripping the upper corners of the
cover and pulling it up and toward you.
__ 6. Refer to Figure 15 and locate the 2682 connector on the back of unit X.
__ 7. Remove the top optical cable (the optical cable between your system unit
and unit X) from the 2682 connector. Do not disconnect the cable from the
system unit.

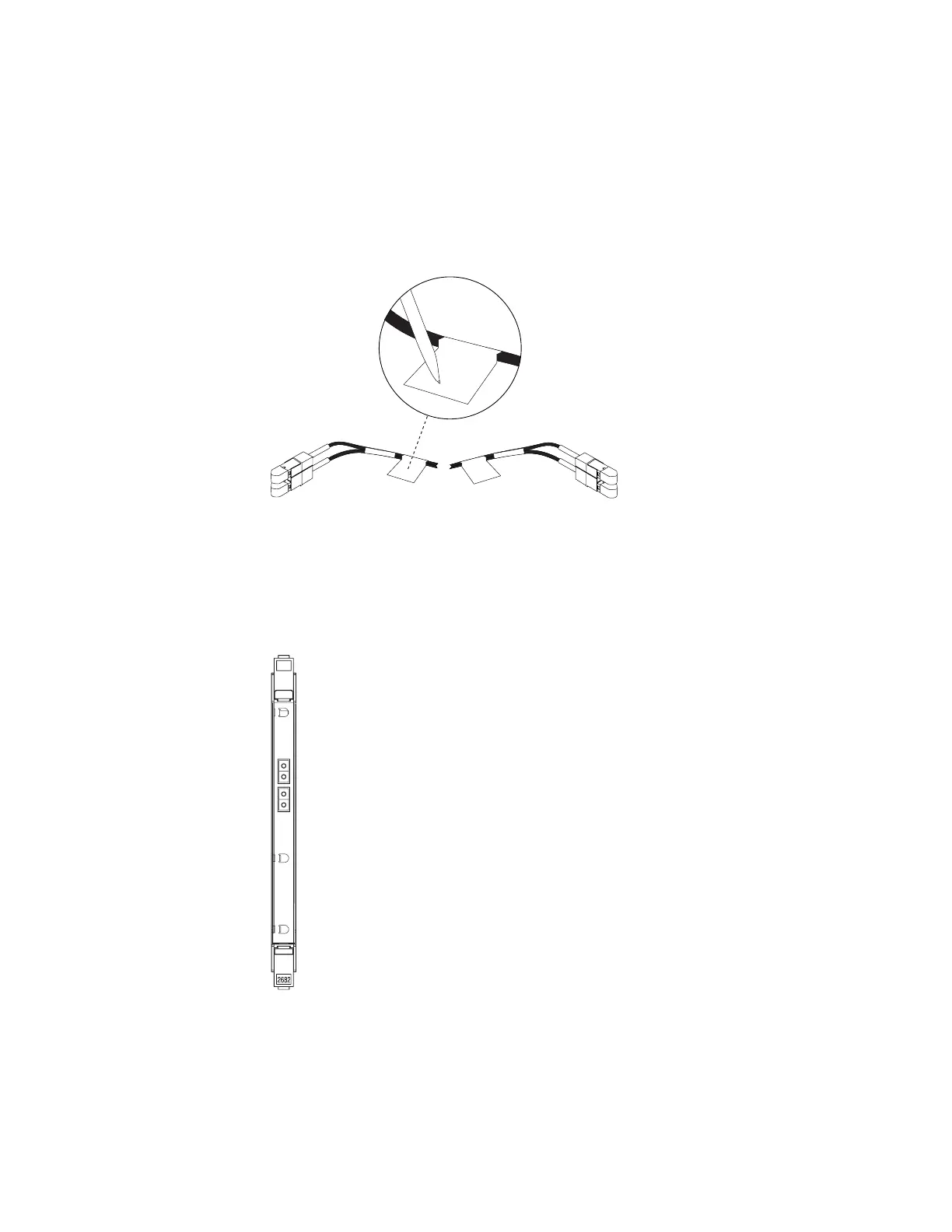

Figure 14. Labeling the optical cables
Figure 15. 2682 OLP card
Chapter 2. Setting up your 5065 Expansion Unit 13
