Connecting the SPCN and optical cables to the AS/400e system 620 or
server S20
To connect the SPCN cable and the optical cable to your system unit, follow these
steps:
__ 1. Plug the SPCN cable into the SPCN connector on your system unit.
__ 2. Tighten the thumbscrews.
Refer to Figure 32 on page 32 and install your optical cables:
__ 1. Locate the optical card connector inside of your system unit.
__ 2. On the back of the system unit, loosen two screws and open the cover plate.
__ 3. Route the optical cable to the optical connector through the back of your
system unit.
__ 4. Remove the two protective plugs from the 2688 OLP card.
__ 5. Push the optical cable that is labeled 0 into the OLP cable connector on the
left.
__ 6. Push the optical cable that is labeled 1 into the OLP cable connector on the
right.
__ 7. Go to “Replacing the covers on your AS/400e system 620 or server S20” on
page 32

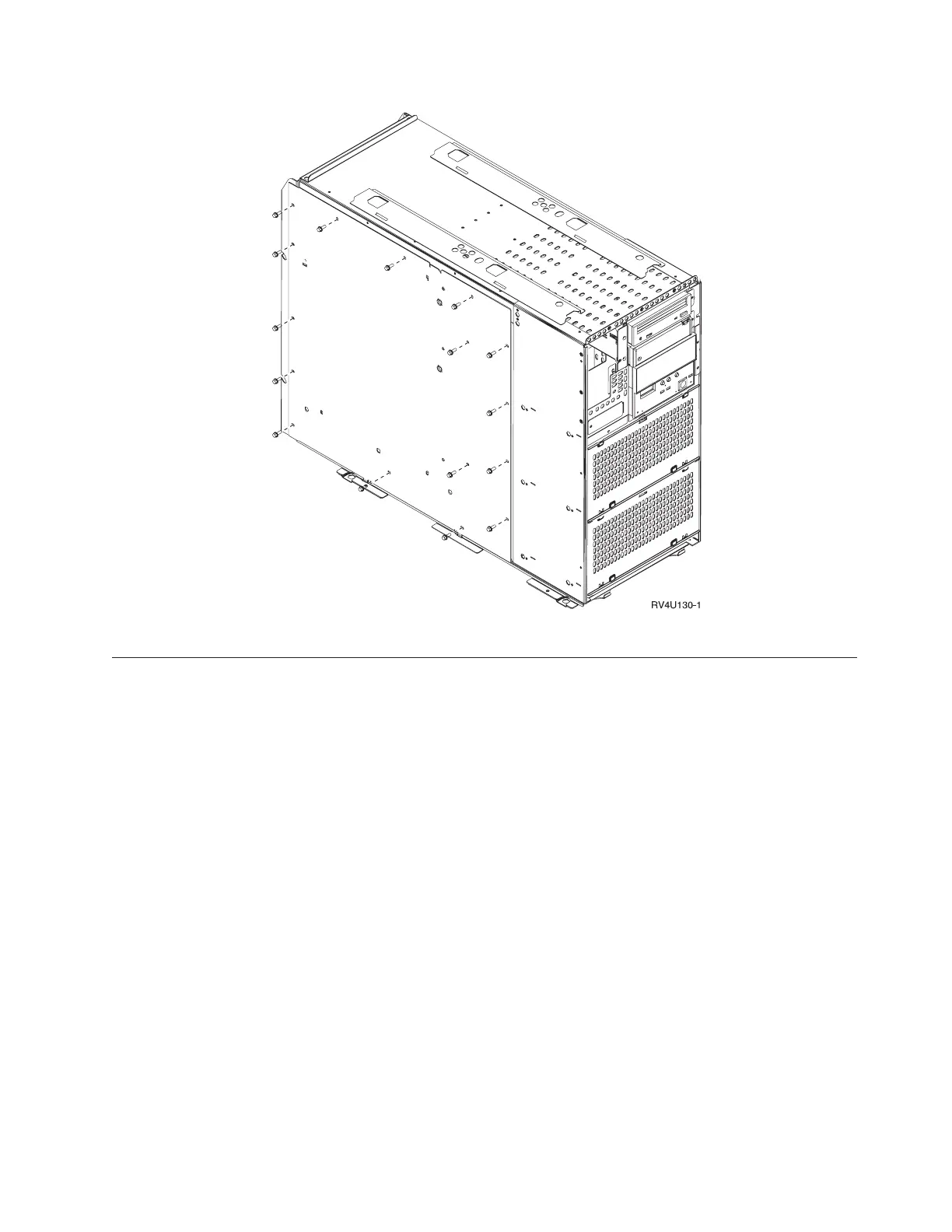

Figure 31. Removing system unit access cover
Appendix A. Connecting cables to your AS400e System 620 or S20 31
