Installing removable media devices
This procedure gives you the introductory steps you need to install removable
media devices in your expansion unit. It will help you to decide between a
concurrent removable media device installation and a power down removable
media device installation. During a concurrent installation, you do not power
down your expansion unit.
If you encounter difficulties during the installation, contact your authorized dealer
or service provider.
__ 1. Is your main system-unit powered off?
No Yes
↓ Go to step 4 on page 61.
__ 2. Refer to Figure 39 (5065) or Figure 40 on page 57 (5066) and use the latch
that is shown at A to open the front cover.
__ 3. If needed, use the latch that is shown at B to remove the front cover.

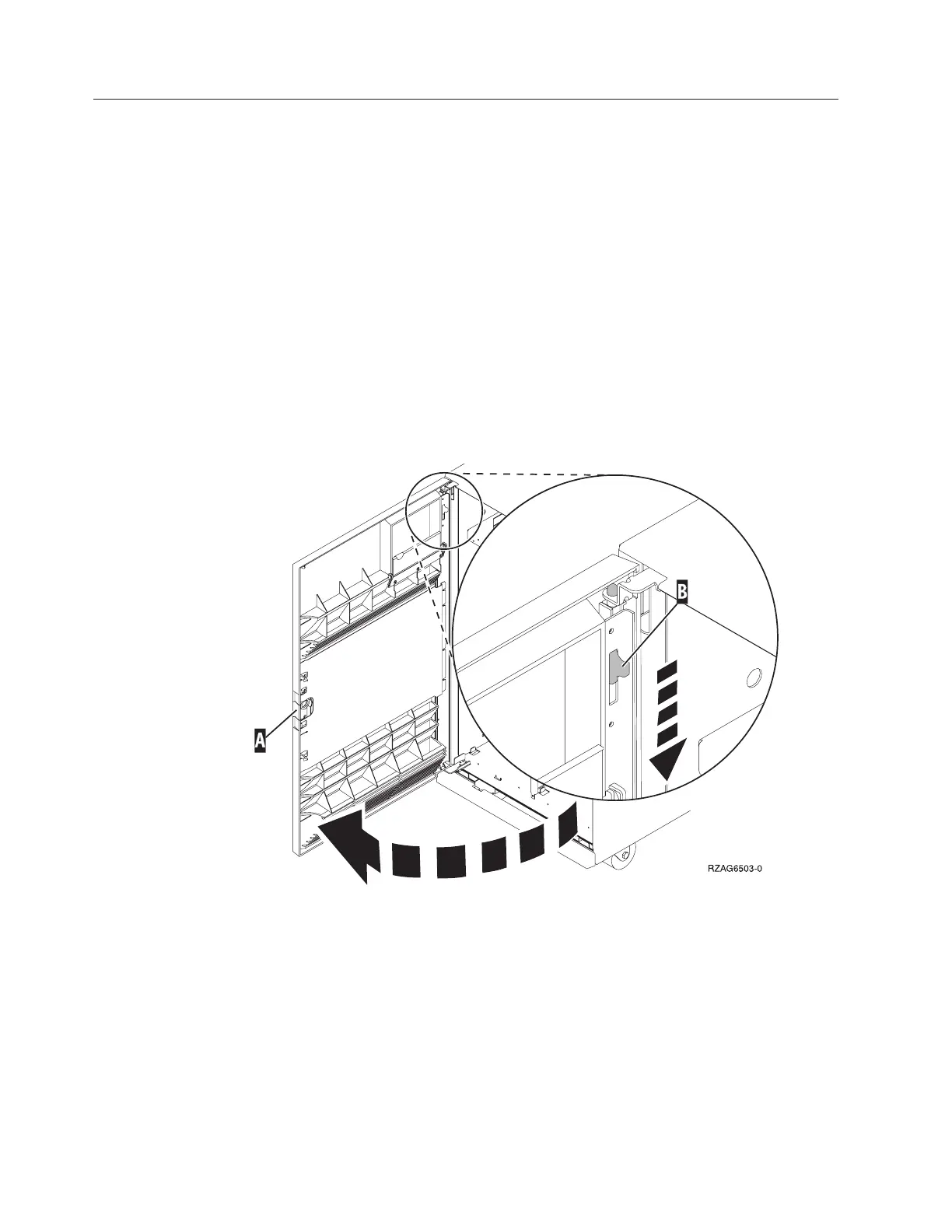

Figure 39. Opening the front cover door
56 Setting Up Your 5065 or 5066 Expansion Unit V4R5
