CAUTION:
Do not plug the expansion unit into the electrical outlet at this time.
__ 12. Plug the power cord into the expansion unit.
__ 13. Close or install the back cover on the expansion unit.
Connecting the cables to your AS/400 system unit
You need to remove the back cover from your AS/400 system unit before you
connect the optical cable and the SPCN cable to it.
If your system unit is an AS/400e system 620 or S20, you may also need to remove
the side access cover. Go to “Appendix A. Connecting cables to your AS400e
System 620 or S20” on page 27 to determine if you need to remove the side cover.
If your system unit is not an AS/400e system 620, perform the following steps.
To connect the SPCN cable and the optical cable to the system unit, do the
following:

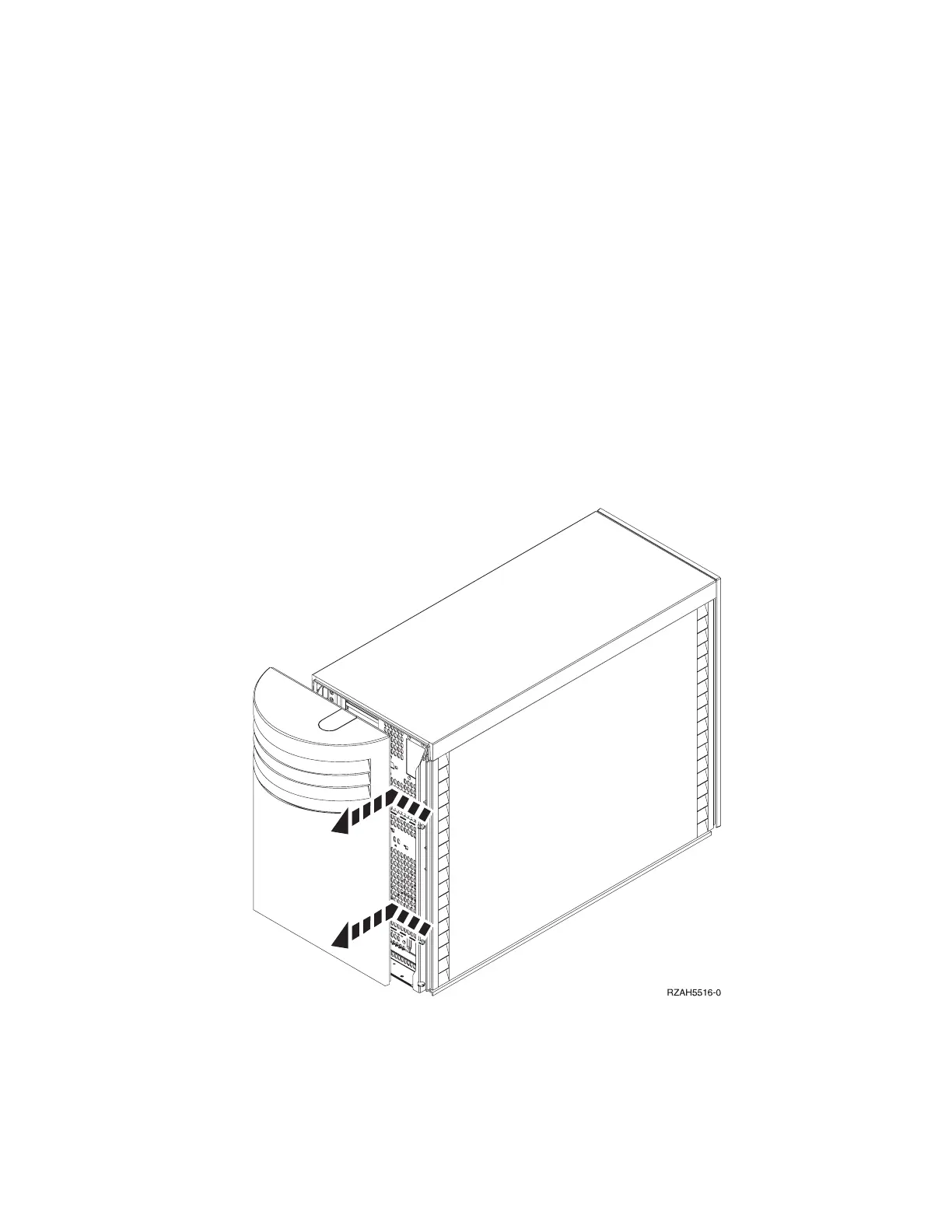

__ 1. Refer to Figure 10 and remove the system unit back cover by gripping the
upper corners of the cover and pulling it up and toward you.
__ 2. Plug the SPCN cable that comes from your expansion unit into the
connector at the rear that is labeled SPCN.
__ 3. Tighten the thumbscrews.
To connect the optical cables to the system unit, follow these steps:
Figure 10. Remove the system unit back cover
10 Setting Up Your 5065 or 5066 Expansion Unit V4R5
