__ 8. Install the optical cables by performing the following steps:
__ a. Locate the optical connector that is labeled 0 on the back of the
expansion unit.
__ b. Remove the terminating plugs from the optical connector.
Attention: When installing the cable connectors, use extreme care to
prevent damaging the housing or scratching the ends of the fiber optic
cables.
__ c. Remove the optical plug dust covers from the optical cable you are
installing.
__ d. Install the optical cable that is labeled 0 into the connector.
__ e. Repeat steps 8a through 8d to install the optical cable that is labeled 1
into the optical cable connector that is labeled 1.
__ 9. Find the power cord that you unpacked with the expansion unit.
__ 10. Locate the power connector on the back of the expansion unit.
__ 11. Remove the label that covers the power plug connector.

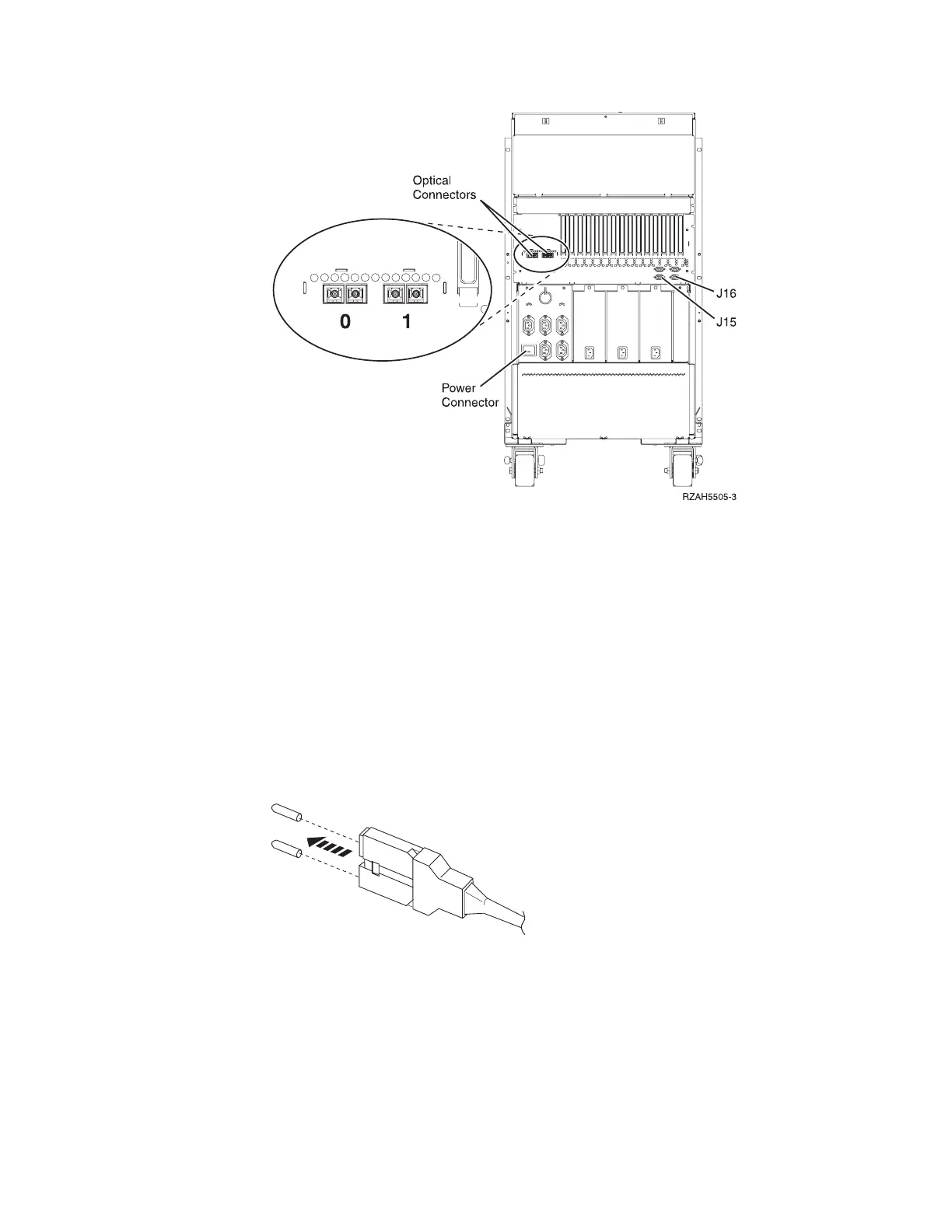

Figure 8. 5065 connector locations
Figure 9. Removing optical plug dust covers
Chapter 2. Setting up your 5065 Expansion Unit 9
