__ 8. Remove the SPCN cable (the SPCN cable between system unit and unit X)
from connector J15 on unit X. Do not disconnect the cable from your
system unit.
__ 9. Use the latch that is shown at A to open the back cover on your
expansion unit.
__ 10. If needed, use latch that is shown at B to remove the back cover.
__ 11. Refer to Figure 17 on page 15 and install the optical cable that you removed
from unit X into the optical connector on your 5065 that is labeled 0. The
optical cable should now run between your system unit and your 5065.
__ 12. Plug the SPCN cable that you removed from unit X into the SPCN
connector J15 on your 5065. The cable should now run between your
system unit and your 5065.
__ 13. Tighten the thumbscrews.

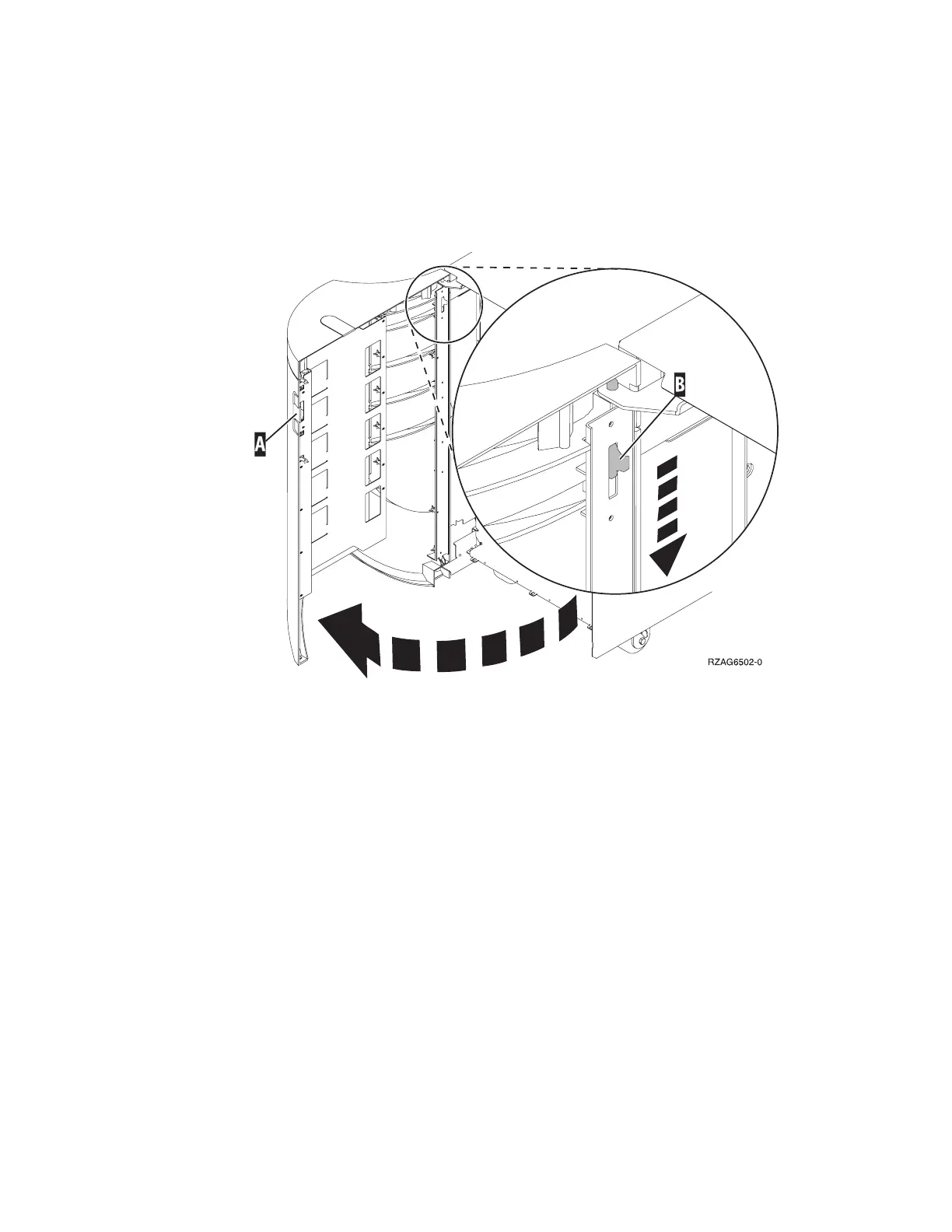

Figure 16. Opening or removing 5065 Expansion Unit back cover
14 Setting Up Your 5065 or 5066 Expansion Unit V4R5
