__ 14. Remove the terminating plugs from the connector on the optical cable that
you labeled 1.
__ 15. Install one end of the optical cable that you labeled 1 into the optical
connector that is labeled 1 on your 5065.
__ 16. Install the other end of the cable that you labeled 1 into the lower optical
connection of the 2682 connector on unit X (Figure 15 on page 13).
__ 17. Connect one end of the SPCN cable that came with your 5065 into
connector J16 on your 5065.
__ 18. Connect the other end of the SPCN cable into connector J15 on unit X.
__ 19. Connect the power cable to your 5065.
__ 20. Install the back covers to unit X and your 5065.
__ 21. Go to “Chapter 4. Completing your installation” on page 23.

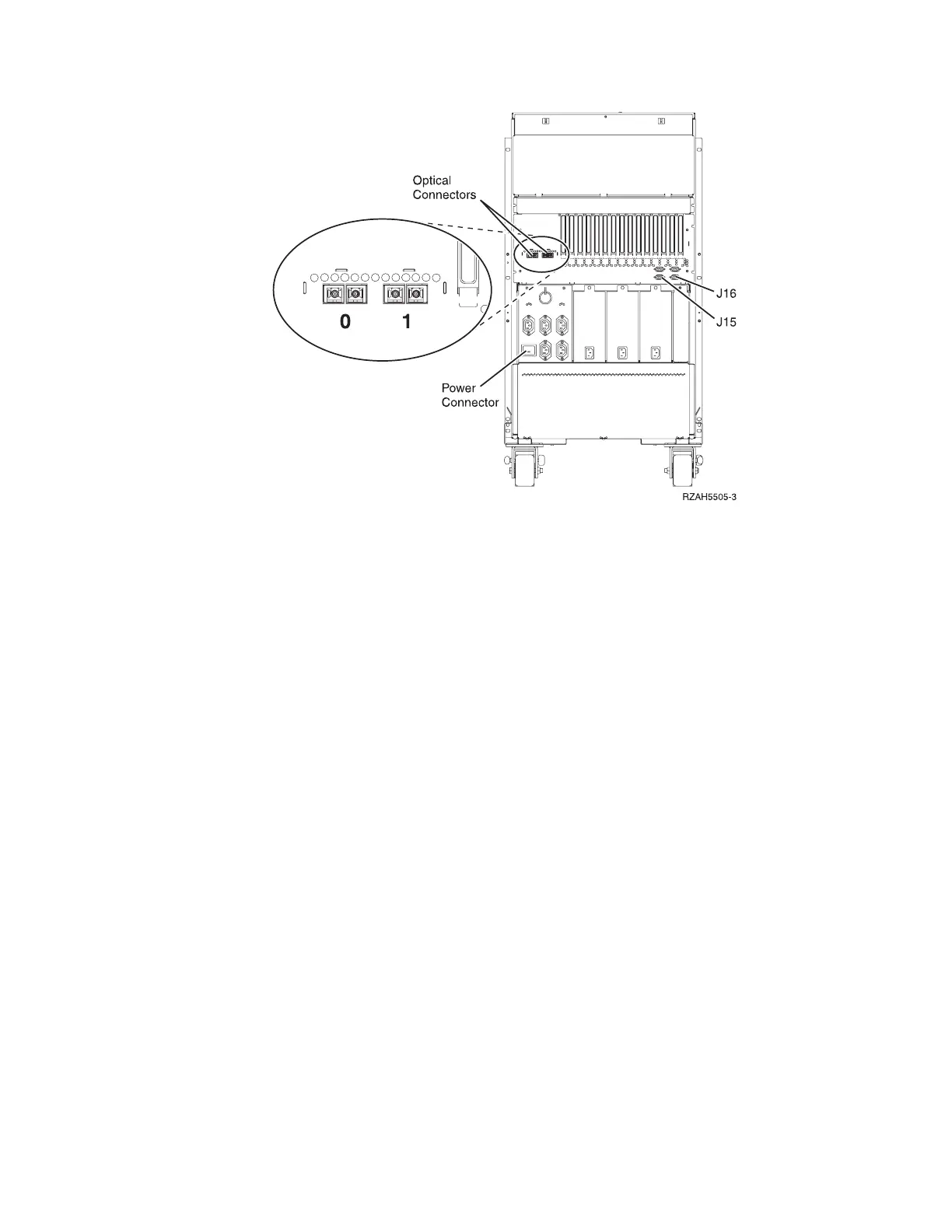

Figure 17. 5065 connector locations
Chapter 2. Setting up your 5065 Expansion Unit 15
