__ 15. Remove the long plastic connector cover from the position you will be
installing the new disk unit.
__ 16. Attention: Failure to follow these instructions could result in damage to
the new disk unit or the expansion unit and could result in loss of data.
Sign on as QSECOFR.
__ 17. Unlock the blue handle by pulling it out toward you before you install the
disk unit into the expansion unit.
Note: Support the disk unit as you install it into the expansion unit. Do not hold
the disk unit by the blue handle.
__ 18. Refer to Figure 38 on page 50 and slide the disk unit into the expansion
unit until it stops.
__ 19. Lift the disk unit handle until it locks into place.

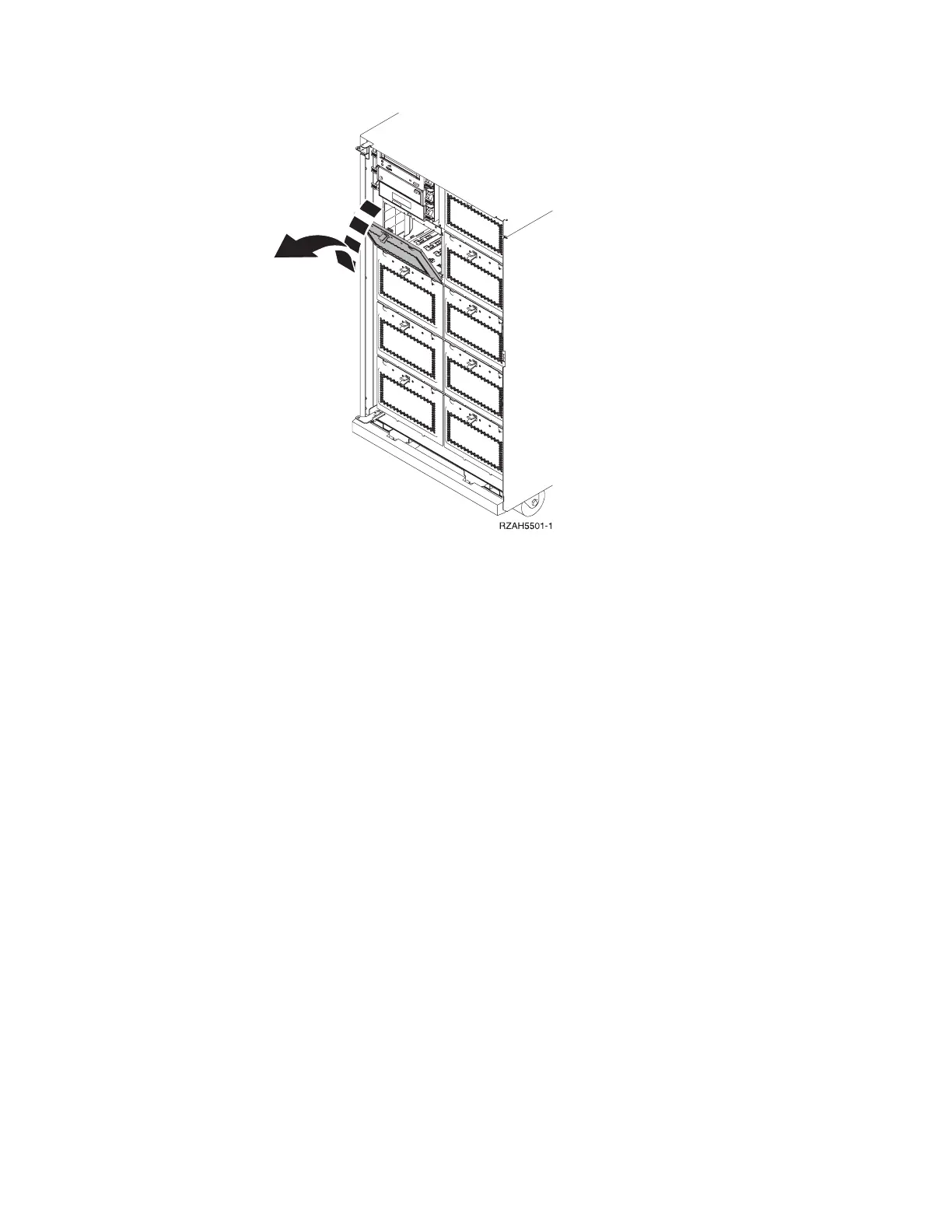

Figure 37. Removing the disk unit enclosure shield
Appendix C. Installing disk units in the 5065 or 5066 Expansion Unit 49
