Long Adapter Installation
Use the following procedure to install a long adapter.
Note: Ensure that both the long and short adapter retaining arms are removed from the
cassette linkage. See 1a on page 82 to remove the arms before continuing
below.
1. Install the long adapter by doing the following:

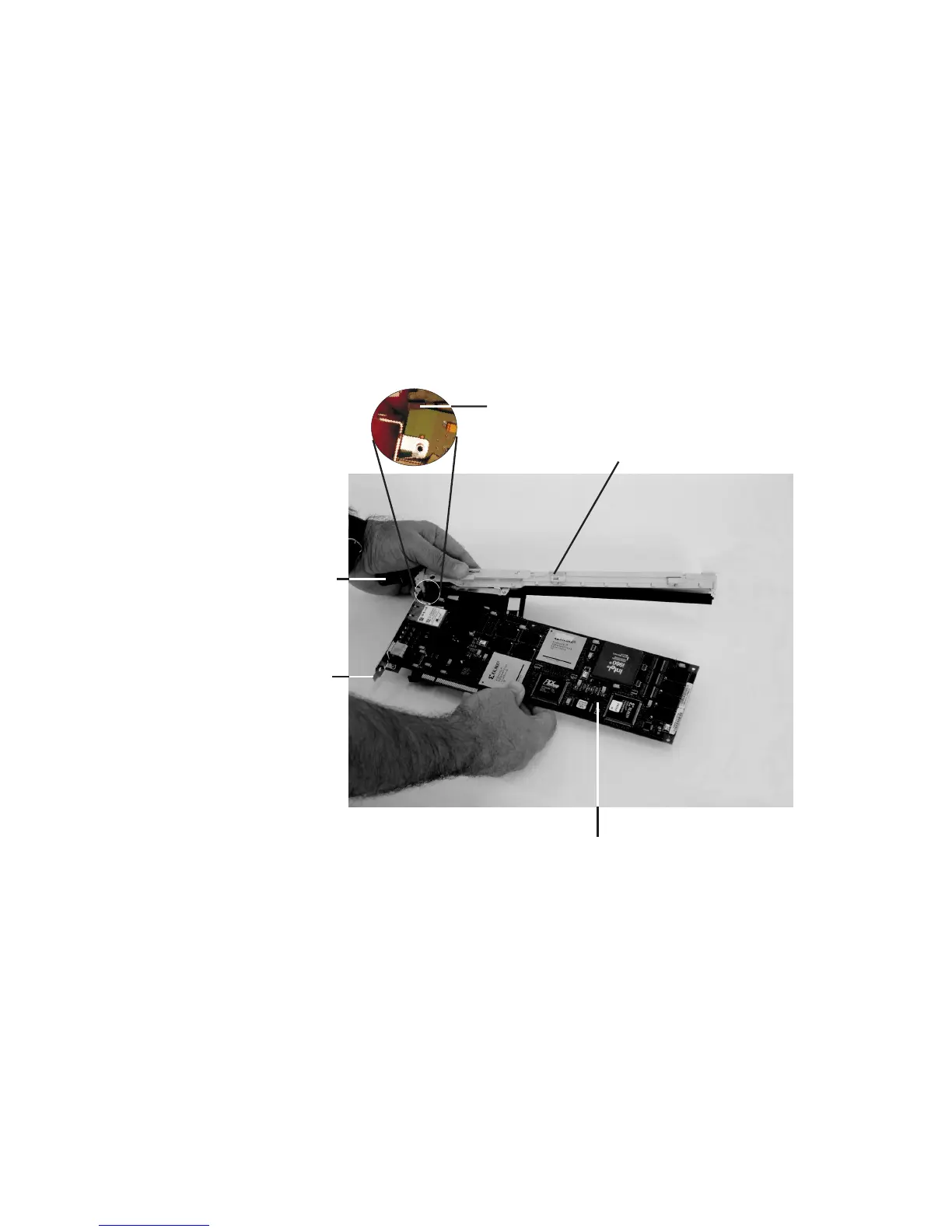

a. Place the adapter into the cassette so that the upper left corner of the adapter
engages the adjustable top retaining clip as shown in the following figure:
Handle
Bottom of
Tailstock
Cassette Linkage Assembly
Adapter
Top Adapter-Retaining Clip
b.
Rotate the adapter so that the adapter engages the slot in the bottom retaining
clip and the top corner of the adapter is seated into the adjustable adapter top
retaining clip.
Note: If the adapter is not a full height adapter, you must slide the adjustable
top left adapter retaining clip downward until the lower edge of the
106 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
