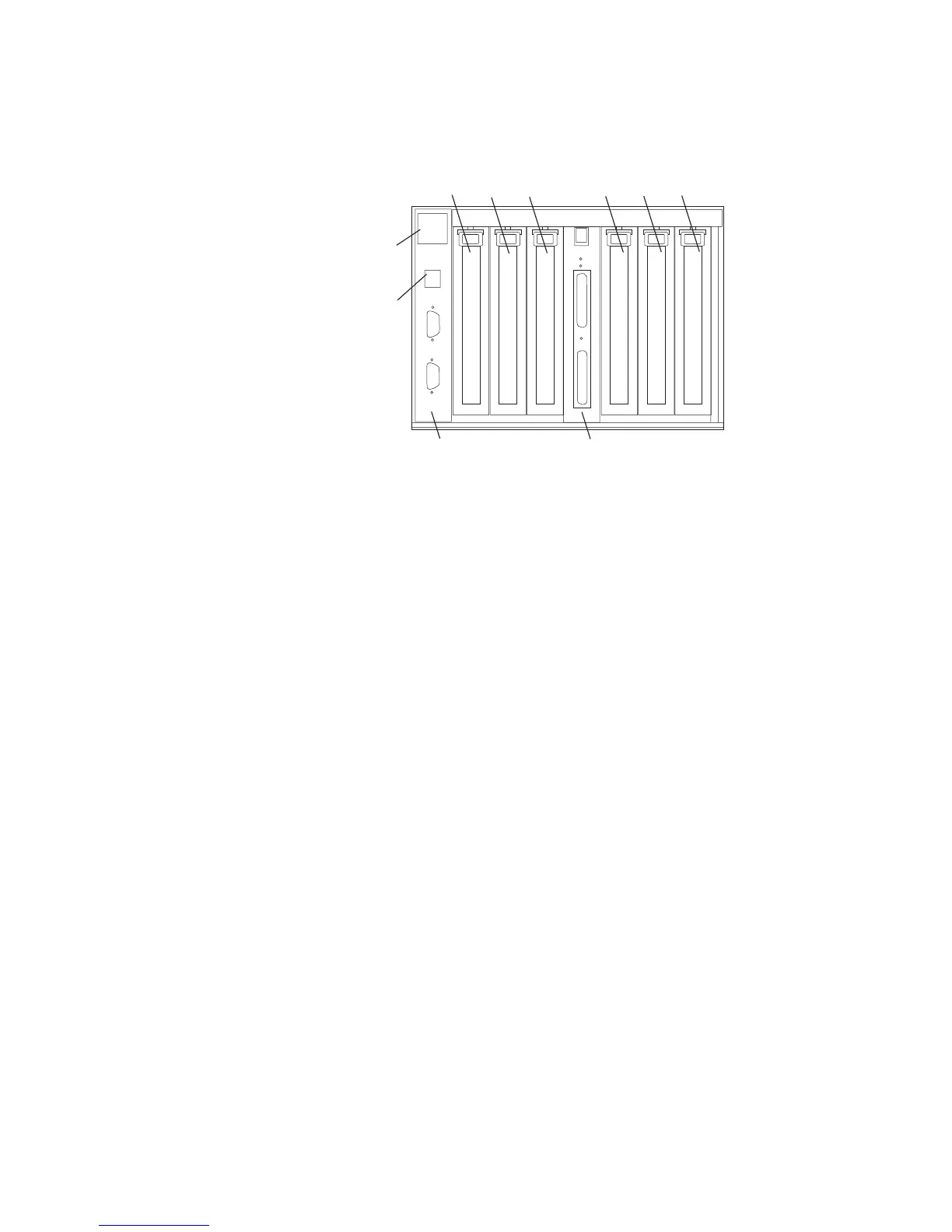

7311 Model D10 I/O Subsystem Rear Locations
1
23 456
1
23
4
56
78
9
10
1 PCI adapter slot 1
U0.
dd
-P1-I1
6 PCI-X adapter slot 6
U0.
dd
-P1-I6
2 PCI-X adapter slot 2
U0.
dd
-P1-I2
7 RIO bus adapter card
U0.
dd
-P1.1
3 PCI-X adapter slot 3
U0.
dd
-P1-I3
8 SPCN connector card
U0.
dd
-P1 (part of the I/O
backplane FRU)
4 PCI-X adapter slot 4
U0.
dd
-P1-I4
9 Rack beacon connector
5 PCI-X adapter slot 5
U0.
dd
-P1-I5
10 Power cord channel
Note: In the preceding table,
dd
is equal to the number assigned to each I/O
subsystem by the connected processor subsystem.
